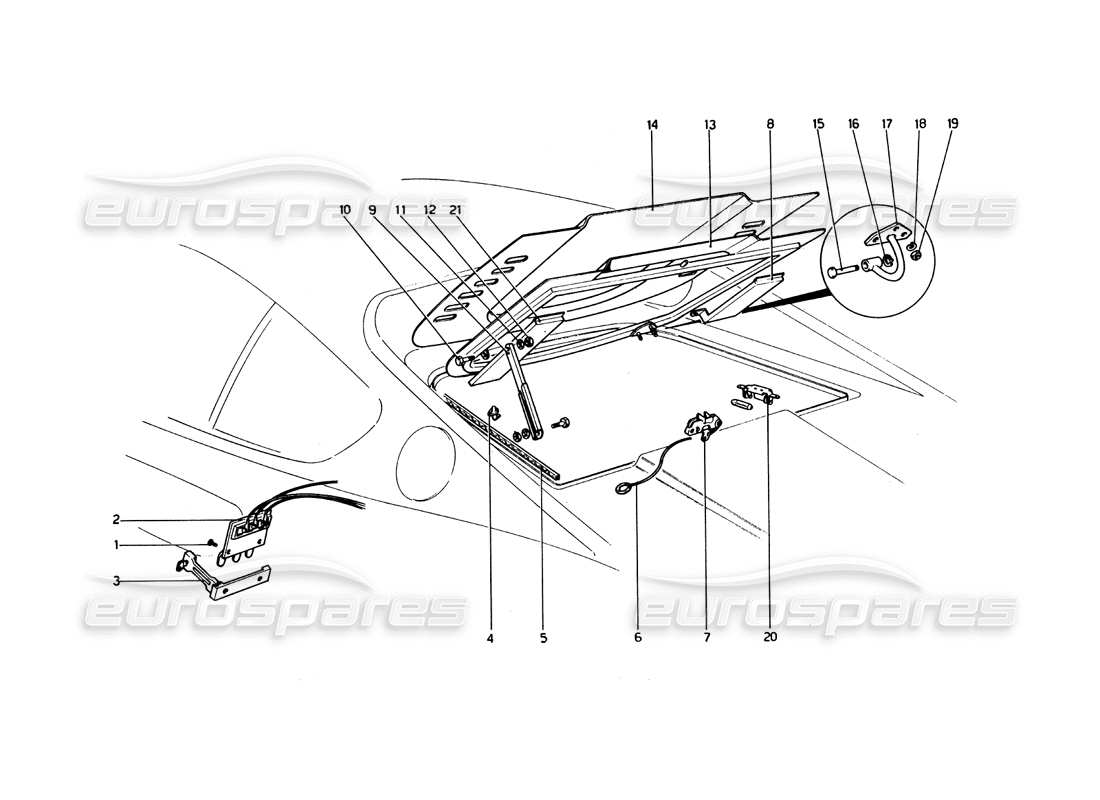

107 - Engine Compartment Lid and Carpeting
Ferrari 246 Dino (1975) Engine Compartment Lid and Carpeting Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 15621402
SCREW

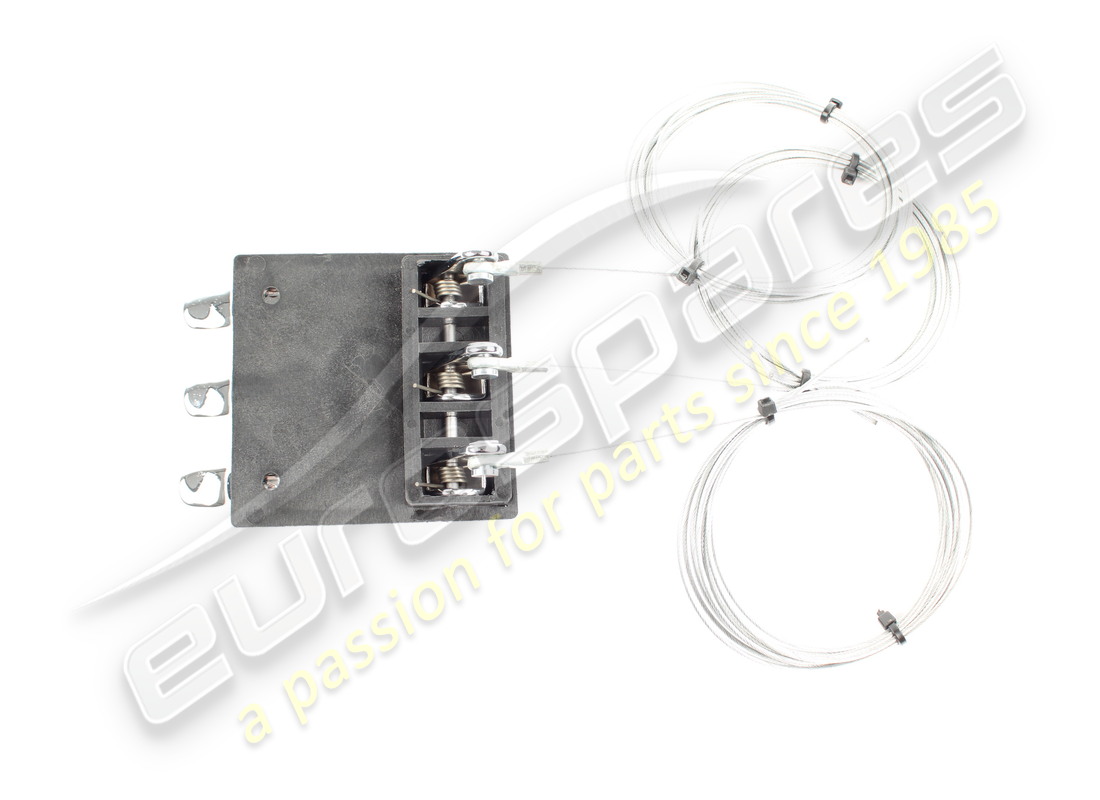

# 002
MPN: 20070405
PULL ASSY PETROL/ENG/BOOT
from £517.24
from £517.24
# 003
MPN: 20141909

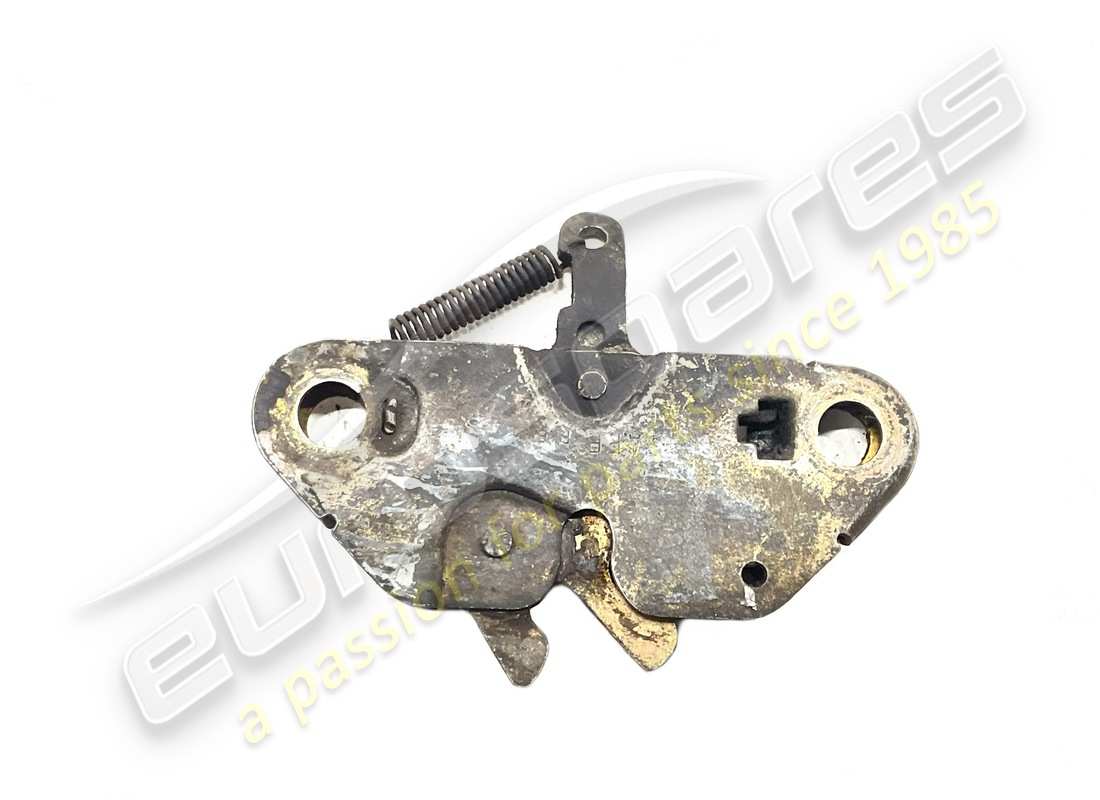

SERRATURA PER LEVE APRICOFANI
Solo per GTS
from £1,526.62
from £1,526.62

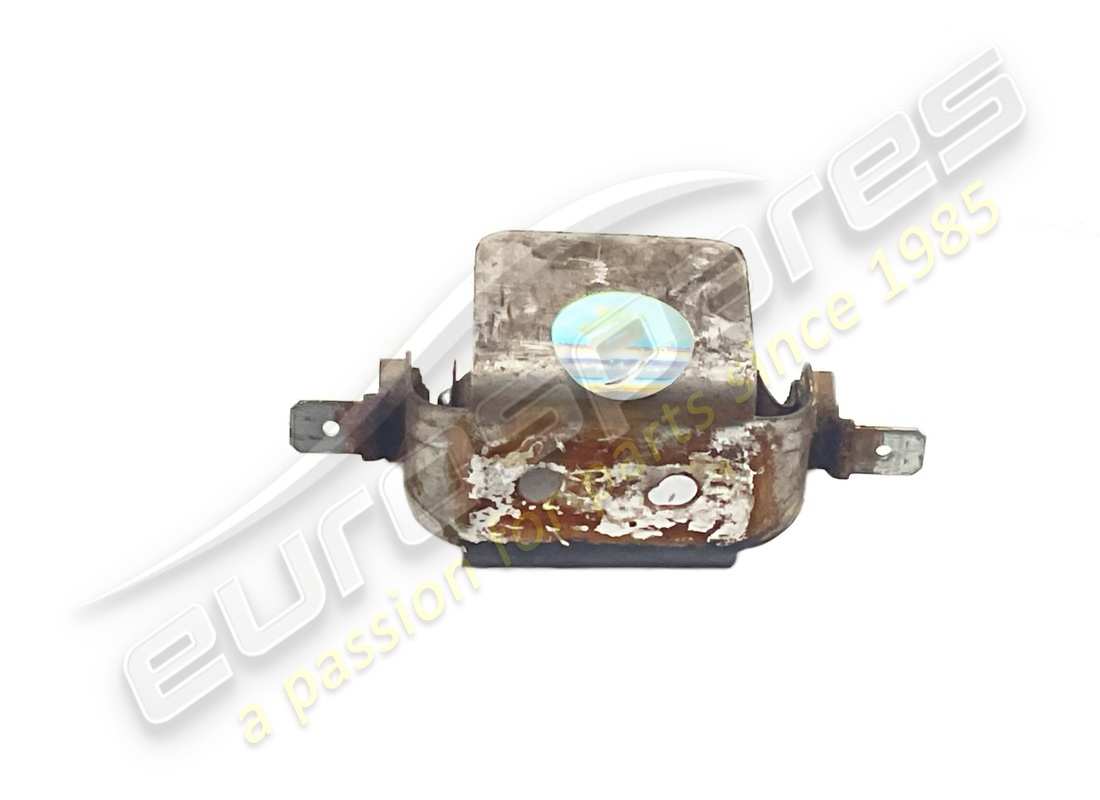

# 004
MPN: 20069605
PULSANTE PER VANO MOTORE
from £45.00
from £45.00
# 005
MPN: 16325180
ENGINE COVER GASKET
Valid for GT (1967-72)
# 005
MPN: 16326180
ENGINE COVER GASKET
Valid for GTS (1972-74)
# 005
MPN: 20-10-11
GASKET
use: 16326180 GTS / 16325180 GT
# 006
MPN: 20045506

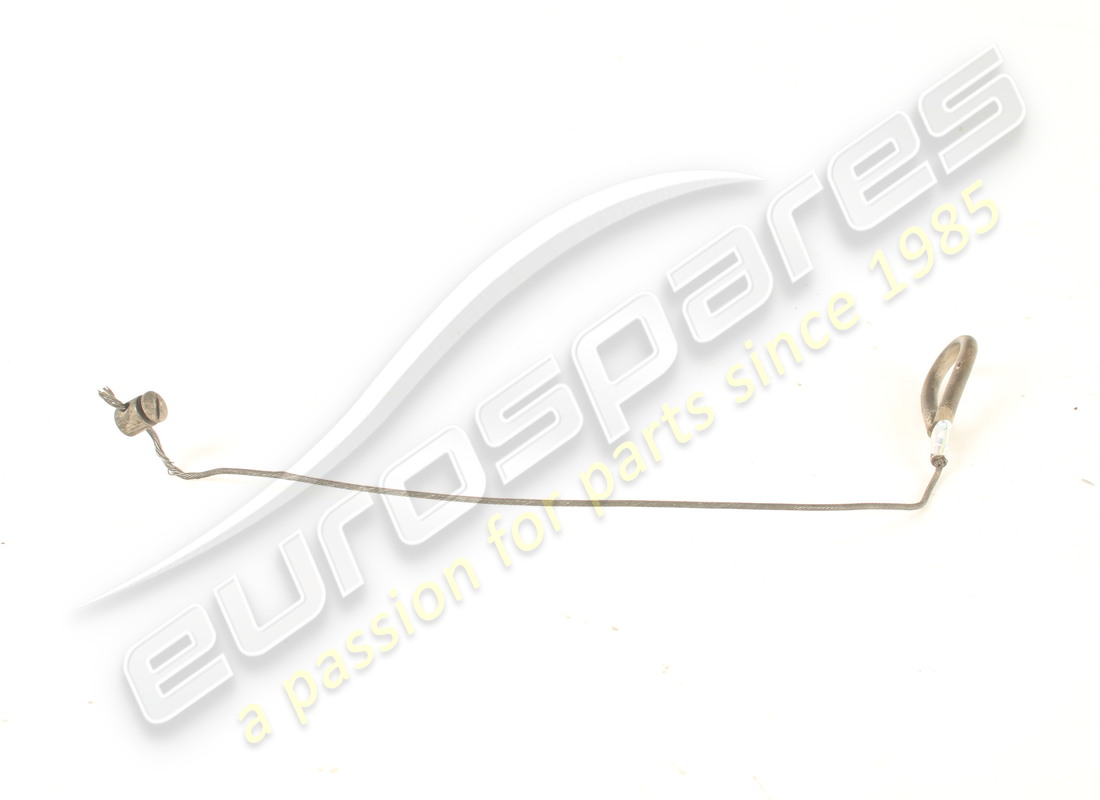

CAVO DI SICUREZZA PER COFANO MOTORE
from £20.00
from £20.00
# 007
MPN: 20041901
SERRATURA COFANO MOTORE
from £109.71
from £109.71
This part replaces part number 20-22-22 - and 3 more. Click to view details
# 008
MPN: 20101903

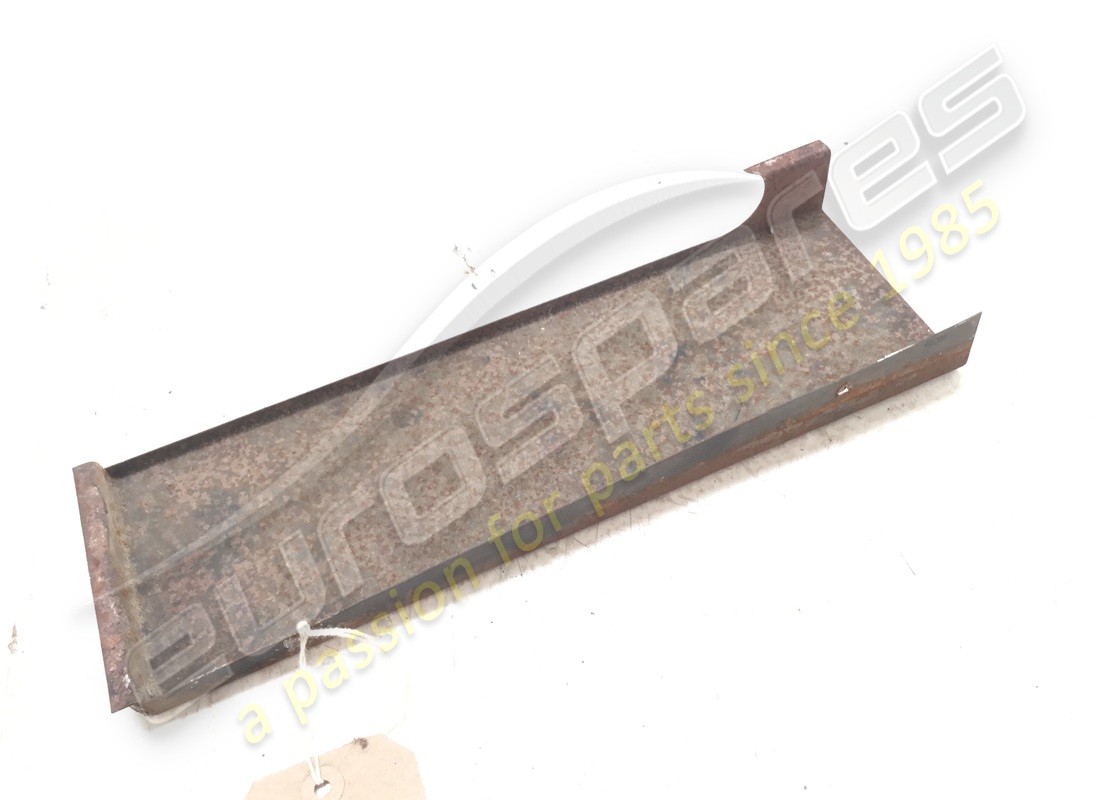

VASCHETTA RIPARO ACQUA DESTRA
from £309.75
from £309.75
# 009
MPN: 20021903
ASTA RITEGNO COFANO
from £94.14
from £94.14
This part replaces part number 20-22-18 - and 5 more. Click to view details
# 010
MPN: 20100301
SCREW
from £22.70
from £22.70
# 011
MPN: 12644401
WASHER
from £0.47
from £0.47
# 012
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 013
MPN: 20027108
ENGINE FRAME
from £284.79
from £284.79
# 014
MPN: 200272

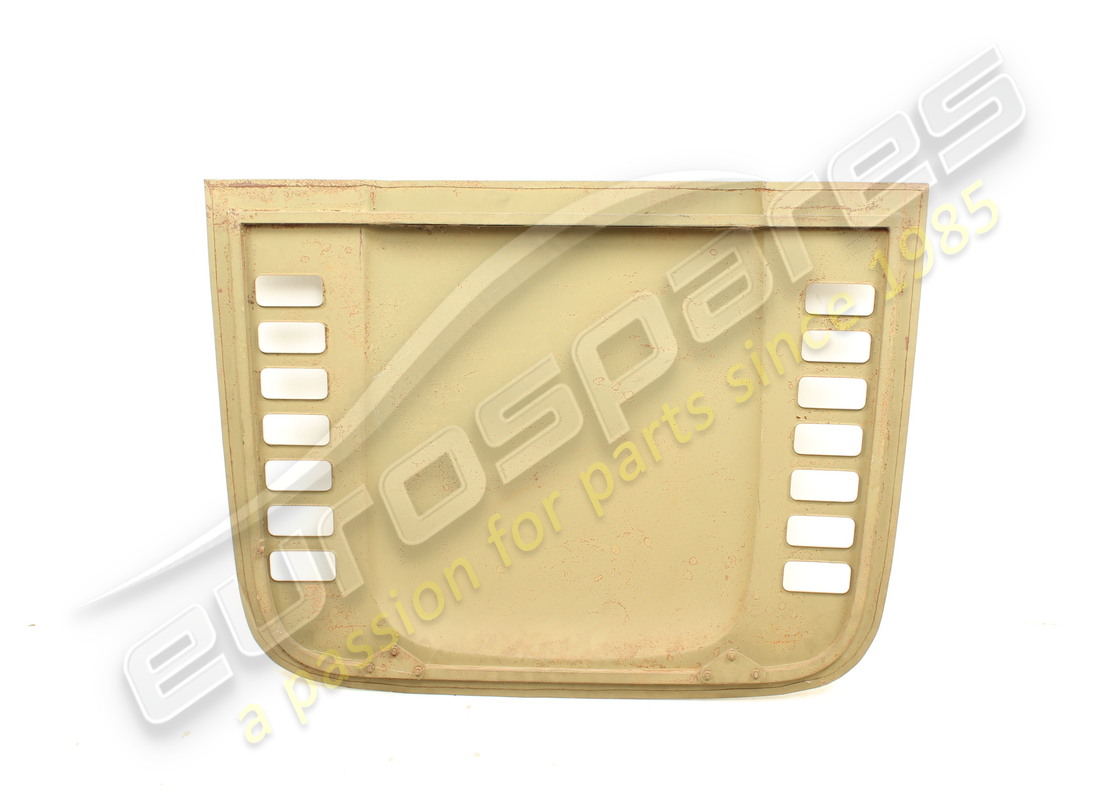

RIVESTIMENTO COFANO MOTORE
from £2,992.50
from £2,992.50
# 014
MPN: 20027207
ENGINE COVER SKIN
Steal
from £1,958.08
from £1,958.08
# 015
MPN: 20023206
PIVOT
from £23.91
from £23.91
# 016
MPN: 11087975
SEEGER RING
Supersession
Supersession
# 017
MPN: 20100608
CERNIERA PER COFANO MOTORE
from £227.97
from £227.97
# 018
MPN: 10516470
WASHER
Supersession
Supersession
# 019
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock

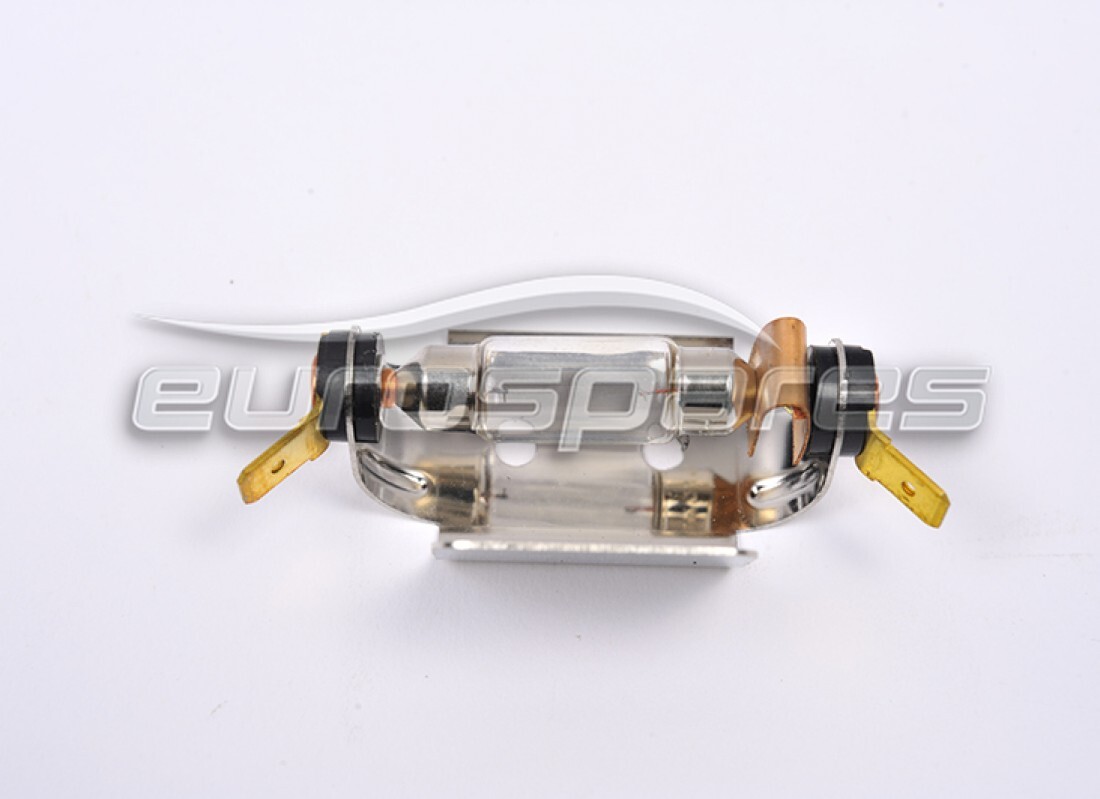

# 020
MPN: 20068300
DOME LAMP
from £169.46
from £169.46
# 021
MPN: 20102000
VASCHETTA RIPARO ACQUA SINISTRA
from £72.36
from £72.36
