Ferrari 246 Dino (1975) Gearbox Inner Controls Parts Diagram

023 - Gearbox Inner Controls

Ferrari 246 Dino (1975) Gearbox Inner Controls Parts Diagram

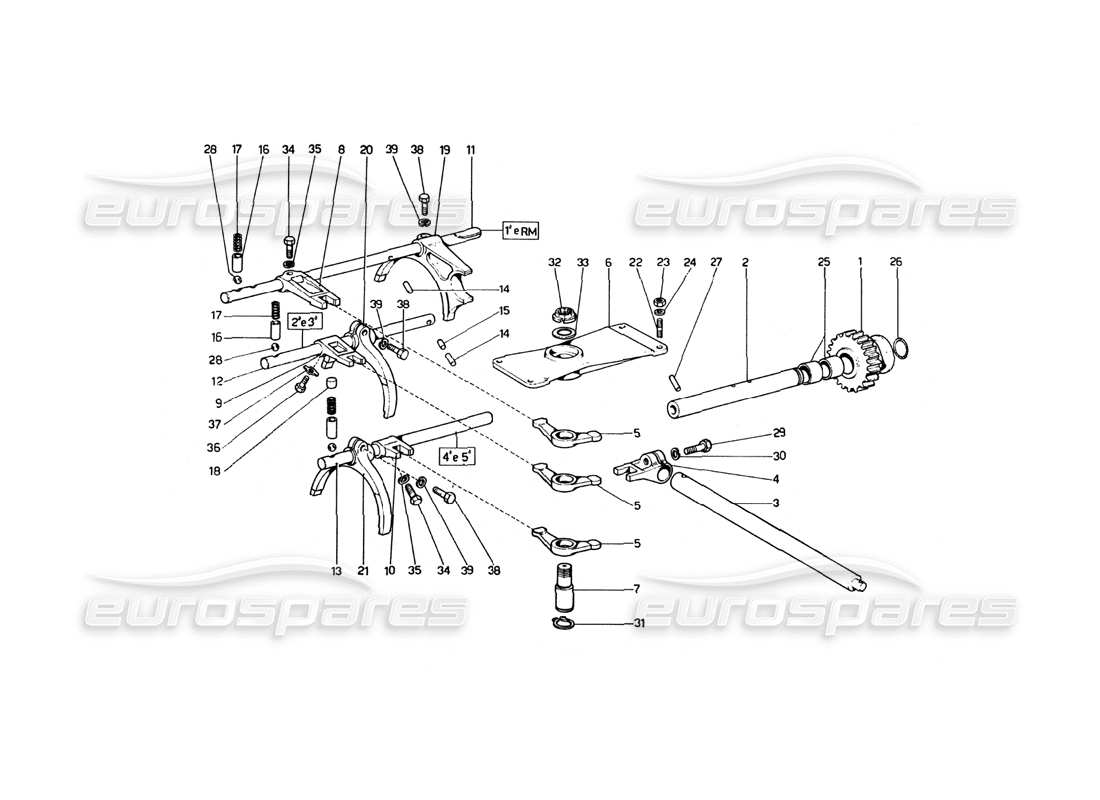

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 001
                                                        MPN: 523910
                                                        INGRANAGGIO FOLLE R.M.
                                                        from £199.67
                                                        from £199.67
                                                        REVERSE GEAR IDLER Genuine Ferrari Part - New (to order)
                                                        # 002
                                                        MPN: 524465
                                                        PIVOT
                                                        Dopo esaur. N. 607E-523911 e fino aI N. 04110
                                                        from £145.59
                                                        from £145.59
                                                        This part replaces part number 523911
                                                        REVERSE GEAR IDLER PIN Genuine Ferrari Part - New In stock
                                                        # 002
                                                        MPN: 524591
                                                        PIVOT
                                                        Vale dal N. 04112
                                                        from £146.77
                                                        from £146.77
                                                        REVERSE GEAR IDLER PIN Genuine Ferrari Part - New (to order)
                                                        # 002
                                                        MPN: 552911
                                                        PIVOT
                                                        Vale fino ad esaurimento
                                                        PIVOT Genuine Ferrari Part - New (to order)
                                                        # 003
                                                        MPN: 105733
                                                        ALBERO PER LEVA
                                                        Dopo esaur. N. 607E-523948
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 003
                                                        MPN: 523949
                                                        ALBERO PER LEVA INTERNA COM. CAMBIO
                                                        Fino esaur. N 607E-523948
                                                        from £177.82
                                                        from £177.82
                                                        SHAFT Genuine Ferrari Part - New In stock
                                                        # 004
                                                        MPN: 106213
                                                        LEVER
                                                        Dopo esaur. N. 607E-524962
                                                        from £81.16
                                                        from £81.16
                                                        This part replaces part number 525010 - and 1 more. Click to view details
                                                        LEVER Genuine Ferrari Part - New (to order)
                                                        LEVER Genuine Ferrari Part - Used In stock
                                                        # 004
                                                        MPN: 524962
                                                        LEVER
                                                        Dopo esaur. N. 607E-523950 e fino ad esaurimento
                                                        from £133.93
                                                        from £133.93
                                                        FORK Genuine Ferrari Part - New (to order)
                                                        # 004
                                                        MPN: 91523950
                                                        LEVER
                                                        Vale fino ad esaurimento
                                                        LEVER Genuine Ferrari Part - New (to order)
                                                        # 005
                                                        MPN: 104265
                                                        BILANCIERE INTERNO
                                                        from £134.54
                                                        from £134.54
                                                        This part replaces part number 523951 - and 1 more. Click to view details
                                                        LEVER Genuine Ferrari Part - New (to order)
                                                        LEVER Genuine Ferrari Part - Used In stock
                                                        # 006
                                                        MPN: 104203
                                                        SUPPORT
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 007
                                                        MPN: 104266
                                                        PIVOT
                                                        from £77.75
                                                        from £77.75
                                                        SHAFT Genuine Ferrari Part - New (to order)
                                                        # 008
                                                        MPN: 106214
                                                        SELECTOR FORK 1ST SPEED AND REVERSE
                                                        Dopo esaur. N. 607E-524963
                                                        from £178.64
                                                        from £178.64
                                                        This part replaces part number 525011
                                                        CONTROL FORK 1ST & RM Genuine Ferrari Part - New In stock
                                                        # 008
                                                        MPN: 523955
                                                        SELECTOR FORK 1ST SPEED AND REVERSE
                                                        Vale fino ad esaurimento
                                                        CONTROL FORK 1ST & RM Genuine Ferrari Part - New (to order)
                                                        # 008
                                                        MPN: 524963
                                                        SELECTOR FORK 1ST SPEED AND REVERSE
                                                        Dopo esaur. N. 607E-523955 e fino ad esaurimento
                                                        SELECTOR FORK 1ST & RM Genuine Ferrari Part - New (to order)
                                                        # 009
                                                        MPN: 106215
                                                        SELECTOR FORK 2ª AND 3ª SPEED
                                                        Dopo esaur. N. 607E-524964
                                                        from £150.66
                                                        from £150.66
                                                        This part replaces part number 525012
                                                        CONTROL FORK 2ND & 3RD Genuine Ferrari Part - New In stock
                                                        # 009
                                                        MPN: 523956
                                                        SELECTOR FORK 2ª AND 3ª SPEED
                                                        Vale fino ad esaurimento
                                                        CONTROL FORK 2ND & 3RD Genuine Ferrari Part - New (to order)
                                                        # 009
                                                        MPN: 524964
                                                        SELECTOR FORK 2ª AND 3ª SPEED
                                                        Dopo esaur. N. 607E-523956 e fino ad esaurimento
                                                        SELECTOR FORK 2ND & 3RD Genuine Ferrari Part - New (to order)
                                                        # 010
                                                        MPN: 106216
                                                        SELECTOR FORK 4ª AND 5ª SPEED
                                                        Dopo esaur, N. 607E-524965
                                                        from £152.81
                                                        from £152.81
                                                        This part replaces part number 525013
                                                        CONTROL FORK 4TH & 5TH Genuine Ferrari Part - New (to order)
                                                        # 010
                                                        MPN: 523957
                                                        SELECTOR FORK 4ª AND 5ª SPEED
                                                        Vale fino ad esaurimento
                                                        CONTROL FORK 4TH & 5TH Genuine Ferrari Part - New (to order)
                                                        # 010
                                                        MPN: 524965
                                                        SELECTOR FORK 4ª AND 5ª SPEED
                                                        Dopo esaur. N. 607E-523957 e fino ad esaurimento
                                                        SELECTOR FORK 4TH & 5TH Genuine Ferrari Part - New (to order)

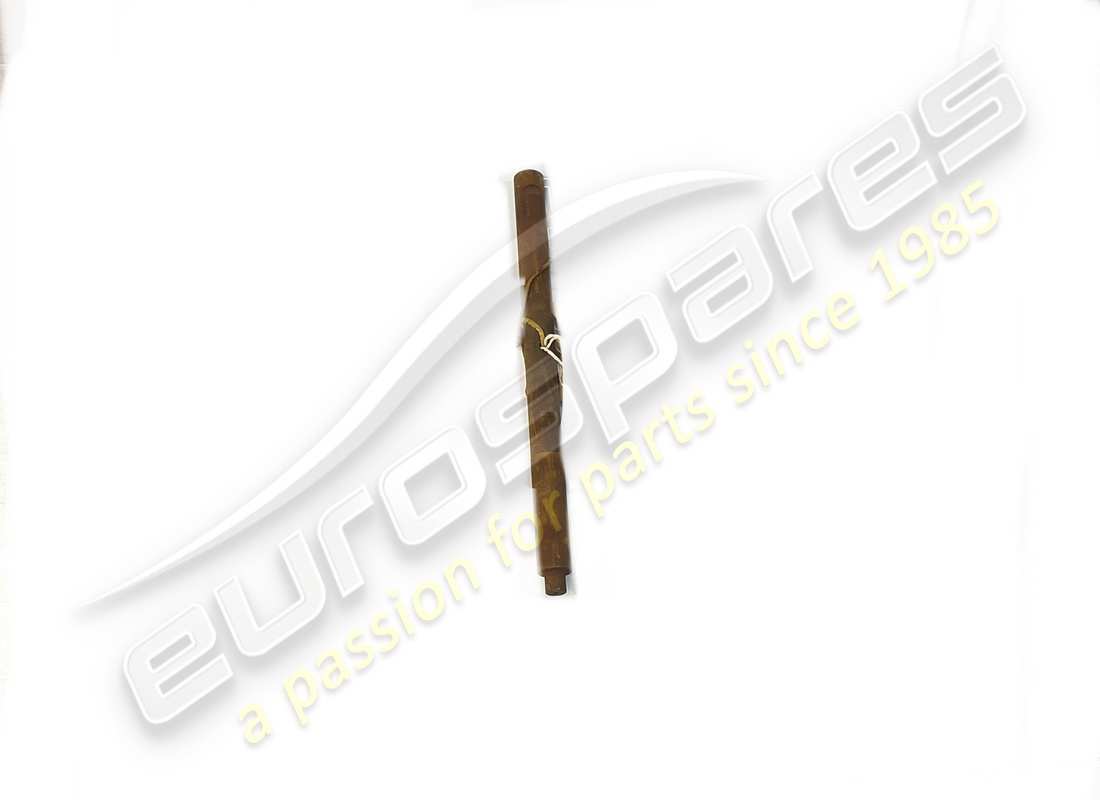

                                                        # 011
                                                        MPN: 523958
                                                        ASTA COMANDO 1 A VEL. E RM
                                                        from £190.99
                                                        from £190.99
                                                        SELECTOR SHAFT 1ST & RM Genuine Ferrari Part - New (to order)
                                                        # 012
                                                        MPN: 523959
                                                        ASTA COMANDO 2 A E 3. A VEL.
                                                        from £176.99
                                                        from £176.99
                                                        SELECTOR SHAFT 2ND & 3RD Genuine Ferrari Part - New (to order)
                                                        # 013
                                                        MPN: 523960
                                                        ASTA COMANDO 4. A E 5. A VEL.
                                                        from £176.99
                                                        from £176.99
                                                        SELECTOR SHAFT 4TH & 5TH Genuine Ferrari Part - New (to order)
                                                        # 014
                                                        MPN: 104276
                                                        RULLINI ARRESTO ASTE LATERAL!
                                                        Dopo esaur. n. 103010
                                                        from £5.72
                                                        from £5.72
                                                        This part replaces part number 523961
                                                        SELECTOR PIN Genuine Ferrari Part - New (to order)
                                                        # 014
                                                        MPN: 106374
                                                        RULLINO ARRESTO ASTE LATERAL!
                                                        Dopo esaur. N. 607E-523962
                                                        from £28.28
                                                        from £28.28
                                                        This part replaces part number 525087
                                                        SELECTOR PIN Genuine Ferrari Part - New (to order)
                                                        # 015
                                                        MPN: 10-30-10
                                                        RULLINO ARRESTO ASTA CENTRALE
                                                        Vale fino ad esaurimento
                                                        from £15.84
                                                        from £15.84
                                                        SELECTOR PIN Genuine Ferrari Part - New (to order)
                                                        # 015
                                                        MPN: 106375
                                                        RULLINO ARRESTO ASTA CENTRALE
                                                        Dopo esaur. N. 607E-523962
                                                        from £13.80
                                                        from £13.80
                                                        This part replaces part number 525086
                                                        SELECTOR PIN Genuine Ferrari Part - New (to order)
                                                        # 016
                                                        MPN: 104277
                                                        BUSH
                                                        from £64.68
                                                        from £64.68
                                                        This part replaces part number 523975
                                                        BUSH Genuine Ferrari Part - New (to order)
                                                        # 017
                                                        MPN: 100750
                                                        SPRING
                                                        from £0.91
                                                        from £0.91
                                                        This part replaces part number 523899
                                                        SPRING Genuine Ferrari Part - New In stock
                                                        SPRING (100750) Genuine Maserati Part - New (to order)
                                                        # 018
                                                        MPN: 104278
                                                        DISTANZIALE PER MOLLA
                                                        from £22.23
                                                        from £22.23
                                                        This part replaces part number 523963
                                                        SPACER Genuine Ferrari Part - New (to order)
                                                        # 019
                                                        MPN: 523964
                                                        SELECTOR FORK 1ST AND REVERSE
                                                        Montare sui manicotti N 100739 e 104553
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 019
                                                        MPN: 524902
                                                        SELECTOR FORK 1.A SPEED. AND REVERSE
                                                        Montare con manicotto N 104973
                                                        from £408.45
                                                        from £408.45
                                                        This part replaces part number 523964
                                                        SELECTOR FORK 1ST & RM GEARS 12MM Genuine Ferrari Part - New In stock
                                                        # 020
                                                        MPN: 523965
                                                        SELECTOR FORK 2. A AND 3. A SPEED
                                                        Montare sui manicotti N 100739 e 104553
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 020
                                                        MPN: 524903
                                                        SELECTOR FORK 2.A AND 3.A SPEED
                                                        Montare con manicotto N 104973
                                                        from £473.32
                                                        from £473.32
                                                        This part replaces part number 523965
                                                        SELECTOR FORK 2ND & 3RD GEARS 12MM Genuine Ferrari Part - New (to order)
                                                        # 021
                                                        MPN: 523966
                                                        SELECTOR FORK 4. A AND 5.SPEED
                                                        Montare sui manicotti N 100739 e 104553
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 021
                                                        MPN: 524904
                                                        SELECTOR FORK 4. A AND 5.SPEED
                                                        Montare con manicotto N 104973
                                                        from £861.26
                                                        from £861.26
                                                        This part replaces part number 523966
                                                        SELECTOR FORK 4TH & 5TH GEARS 12MM Genuine Ferrari Part - New (to order)
                                                        # 022
                                                        MPN: 11500120
                                                        THREADED STUD
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 023
                                                        MPN: 15896211
                                                        NUT
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 15896210
                                                        Genuine Ferrari Part (no longer available to order)
                                                        Genuine Maserati Part (no longer available to order)
                                                        # 024
                                                        MPN: 11197774
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 11197770 - and 3 more. Click to view details
                                                        WASHER Genuine Ferrari Part - New In stock
                                                        WASHER (11197774) Genuine Maserati Part - New In stock
                                                        # 025
                                                        MPN: 95870317
                                                        BUSH
                                                        from £6.28
                                                        from £6.28
                                                        BUSH Genuine Ferrari Part - New (to order)
                                                        # 026
                                                        MPN: 95860063
                                                        SEALING RING
                                                        Vale fino N 04110
                                                        from £1.38
                                                        from £1.38
                                                        This part replaces part number 130295
                                                        O-RING VITON Genuine Ferrari Part - New (to order)
                                                        # 027
                                                        MPN: 10336110
                                                        PIN
                                                        PIN Genuine Ferrari Part - New (to order)
                                                        # 028
                                                        MPN: 101612
                                                        SFERA Ø 5/16
                                                        from £0.71
                                                        from £0.71
                                                        This part replaces part number 93309
                                                        BALL Genuine Ferrari Part - New In stock
                                                        BALL (101612) Genuine Maserati Part - New (to order)
                                                        # 030
                                                        MPN: 127496
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                        WASHER Genuine Ferrari Part - New In stock
                                                        WASHER (127496) Genuine Maserati Part - New In stock
                                                        # 031
                                                        MPN: 11066876
                                                        SEEGER RING
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 11066875
                                                        SNAP RING Genuine Ferrari Part - New In stock
                                                        SEEGER RING FOR SHAFT D.20 (11066876) Genuine Maserati Part - New (to order)
                                                        # 032
                                                        MPN: 10-32-25
                                                        RING NUT
                                                        from £20.52
                                                        from £20.52
                                                        RH REAR FOOTWELL UPRIGHT CARPET Genuine Ferrari Part - New (to order)
                                                        # 034
                                                        MPN: 16043521
                                                        BOLT
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 035
                                                        MPN: 127496
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                        WASHER Genuine Ferrari Part - New In stock
                                                        WASHER (127496) Genuine Maserati Part - New In stock
                                                        # 036
                                                        MPN: 104279
                                                        BOLT
                                                        from £20.23
                                                        from £20.23
                                                        This part replaces part number 95176 - and 1 more. Click to view details
                                                        BOLT Genuine Ferrari Part - New (to order)
                                                        # 037
                                                        MPN: 103587
                                                        PLATE
                                                        from £5.85
                                                        from £5.85
                                                        This part replaces part number 92692 - and 1 more. Click to view details
                                                        LOCKTAB (103587) Eurospares Approved Part - New In stock
                                                        LOCKTAB Genuine Ferrari Part - New In stock
                                                        # 038
                                                        MPN: 16043521
                                                        BOLT
                                                        Supersession
                                                        Supersession
                                                        Genuine Ferrari Part (no longer available to order)
                                                        # 039
                                                        MPN: 127496
                                                        WASHER
                                                        from £0.47
                                                        from £0.47
                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                        WASHER Genuine Ferrari Part - New In stock
                                                        WASHER (127496) Genuine Maserati Part - New In stock
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
