ferrari 246 dino (1975) gearbox transmission parts diagram

019 - Gearbox Transmission

Ferrari 246 Dino (1975) Gearbox Transmission Parts Diagram

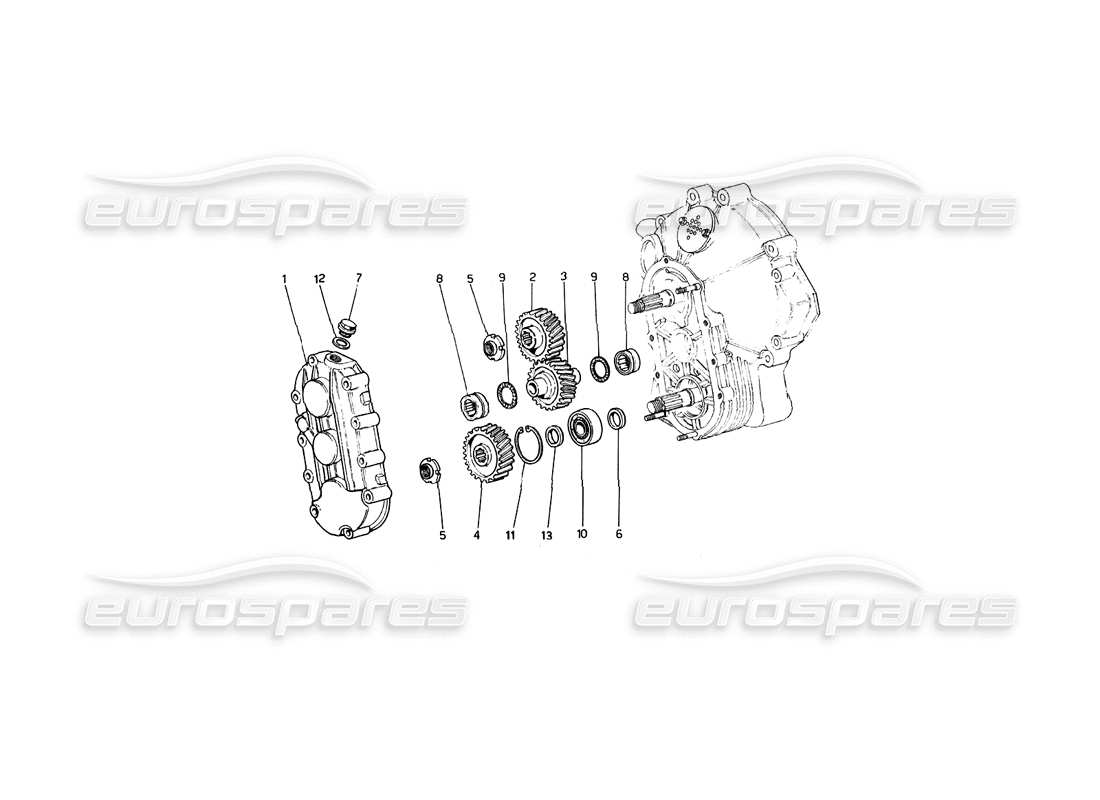

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 002
                MPN: 500590

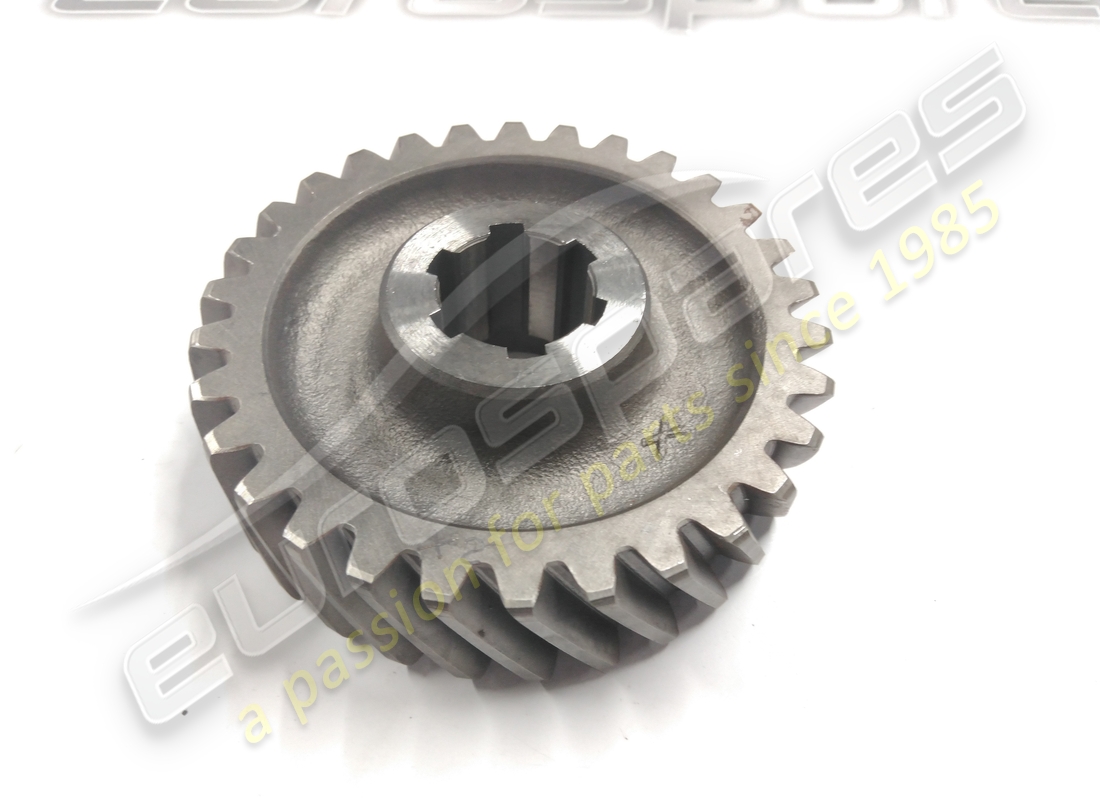

                DROP GEAR SET
                (series III model)
                from £1,464.75
                from £1,464.75
                DROP GEAR SET Genuine Ferrari Part - New In stock
                # 002
                MPN: 500721
                DRIVING GEAR
                from £834.75
                from £834.75

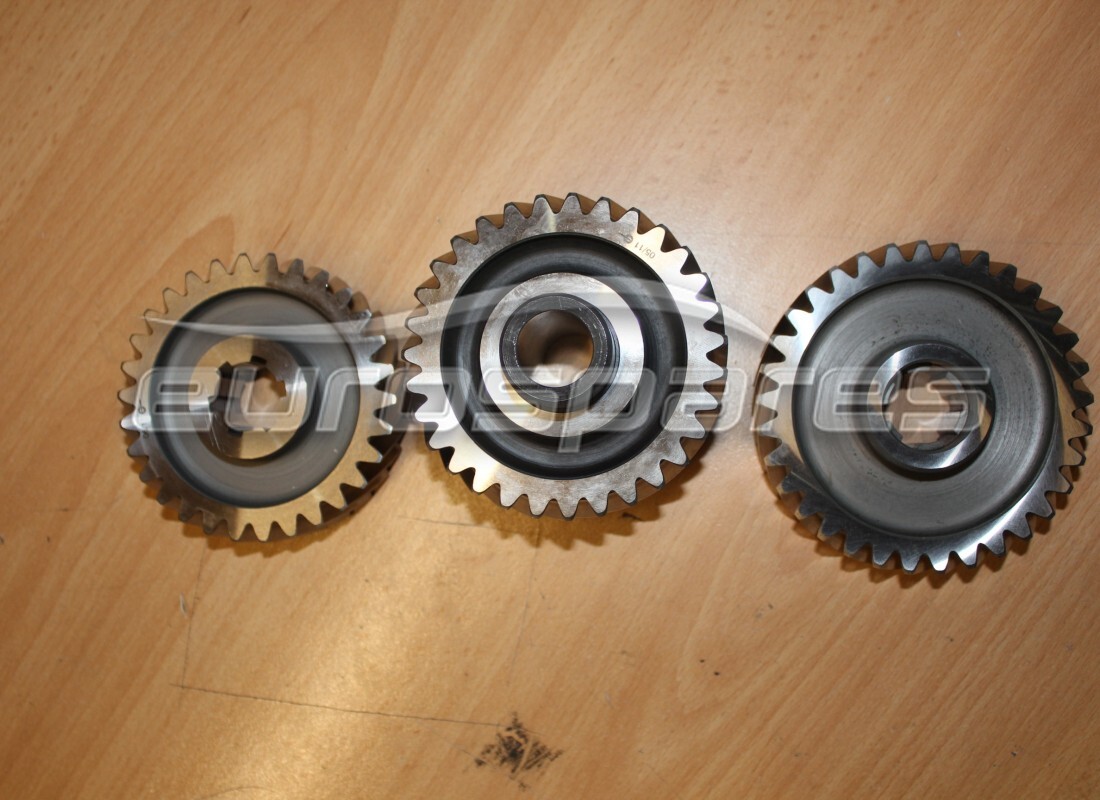

                TOP TRANSFER GEAR Genuine Ferrari Part - New In stock
                # 004
                MPN: 500722

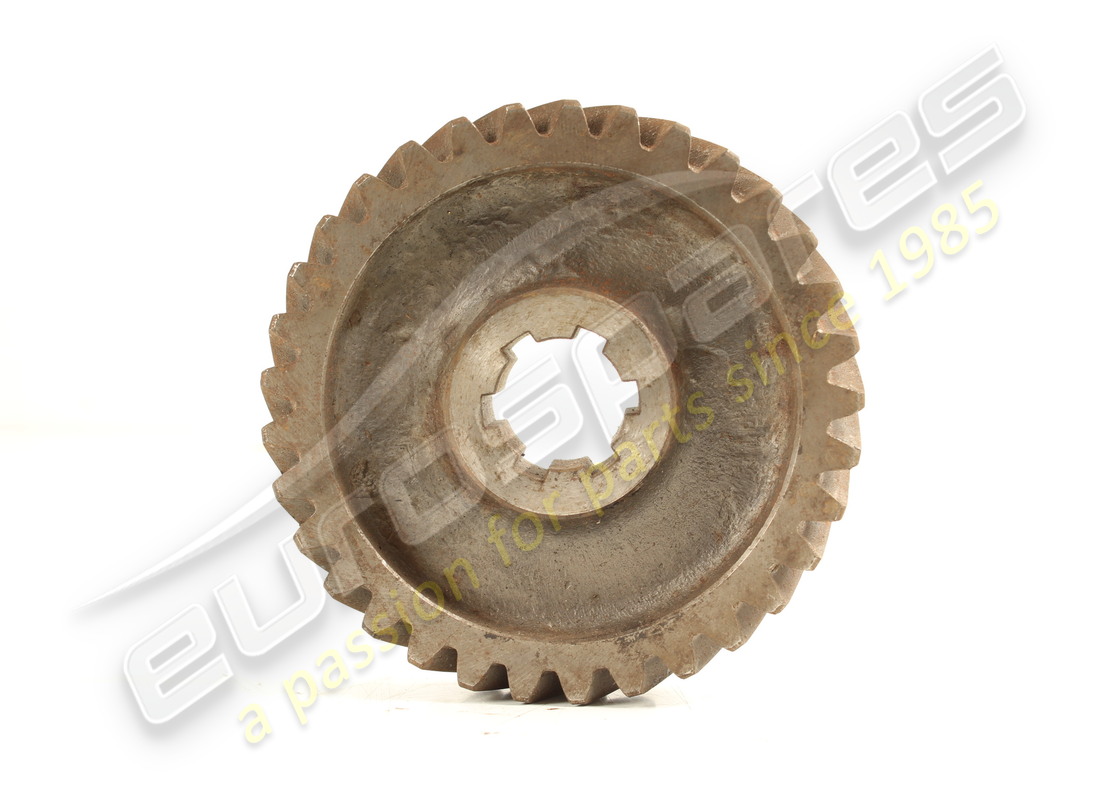

                DRIVEN GEAR
                Up to N. 04828
                from £5.83
                from £5.83
                BOLT 7/16 UNCX 2 3/4 (500722) Genuine Aston Martin - New (to order)
                CENTRE TRANSFER GEAR Genuine Ferrari Part - New (to order)
                # 004
                MPN: 500723
                DRIVEN GEAR
                Valid until vin 01116, valid after vin 02132
                from £295.54
                from £295.54
                LOWER TRANSFER GEAR Genuine Ferrari Part - New In stock
                # 004
                MPN: 500783
                DRIVEN GEAR
                Vale dal N. 04830
                from £268.35
                from £268.35
                GEAR Genuine Ferrari Part - New (to order)
                # 005
                MPN: 500753
                RING NUT
                from £83.56
                from £83.56
                LOCK NUT Genuine Ferrari Part - New (to order)
                # 006
                MPN: 500727
                SPACER
                from £57.54
                from £57.54
                SPACER Genuine Ferrari Part - New (to order)
                # 007
                MPN: 10305140
                PLUG
                Vale fino ad esaurimento
                PLUG Genuine Ferrari Part - New (to order)
                # 007
                MPN: 10305171
                PLUG
                Dopo esaurim. N. F10305140
                Supersession
                Supersession
                Genuine Ferrari Part (no longer available to order)
                # 008
                MPN: 95883021
                ROLLER BEARING
                ROLLER BEARING Genuine Ferrari Part - New (to order)
                # 009
                MPN: 103093
                SPACER
                from £13.79
                from £13.79
                ROLLER BEARING Genuine Ferrari Part - New In stock
                # 010
                MPN: 126234
                BEARING
                Vale fino N. 04828
                from £441.28
                from £441.28
                This part replaces part number 103990
                ROLLER BEARING Genuine Ferrari Part - New (to order)
                # 010
                MPN: 95890808
                BEARING
                Vale dal N. 04830
                BEARING Genuine Ferrari Part - New (to order)
                # 011
                MPN: 11081078
                SEAL
                SEAL Genuine Ferrari Part - New (to order)
                # 012
                MPN: 10279580
                GUARNIZLONE
                GUARNIZLONE Genuine Ferrari Part - New (to order)
                # 013
                MPN: 500784
                SPACER
                Vale fino N. 04828
                from £43.93
                from £43.93
                SPACER Genuine Ferrari Part - New (to order)
