ferrari 246 dino (1975) engine lubrication parts diagram

013 - Engine Lubrication

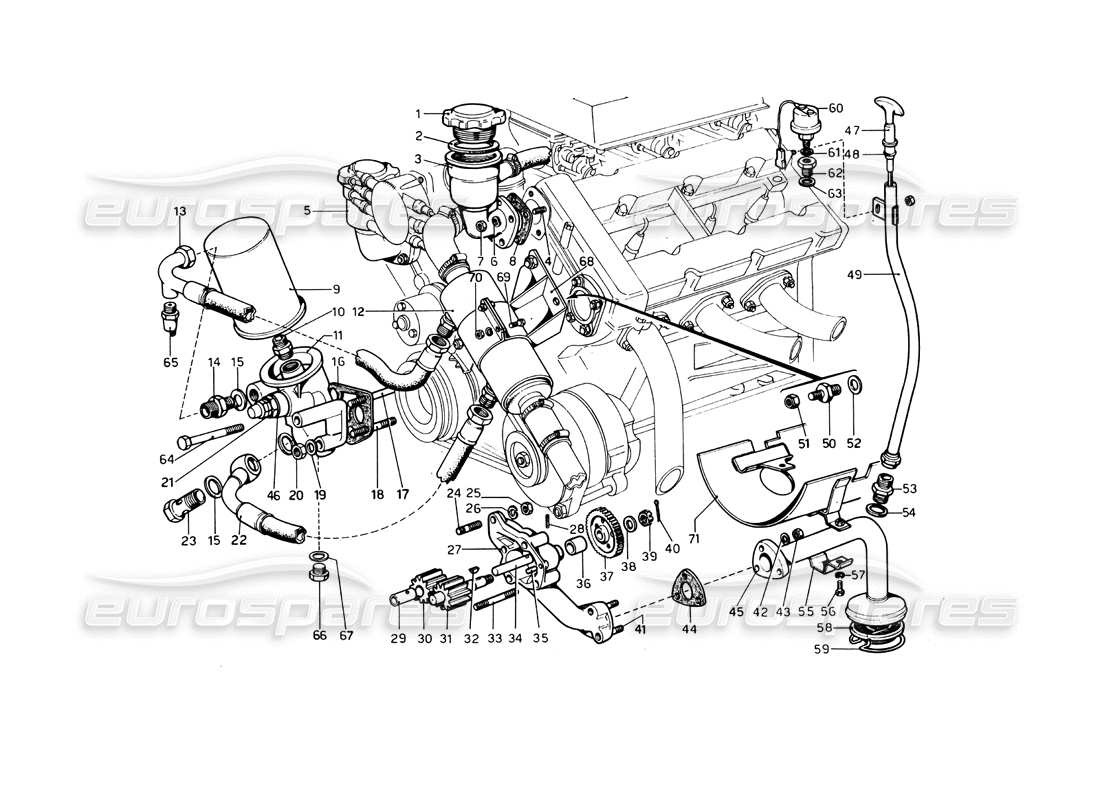

Ferrari 246 Dino (1975) Engine Lubrication Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                    #
                                                                                                                                    Part number
                                                                                                                                    Description
                                                                                                                                    Key
                                                                                                                                    Price
                                                                                                                                    # 001
                                                                                                                                    MPN: 102879
                                                                                                                                    TAPPO INTRODUZIONE OLIO
                                                                                                                                    from £169.19
                                                                                                                                    from £169.19
                                                                                                                                    This part replaces part number 4168812
                                                                                                                                    OIL FILLER CAP OE Genuine Ferrari Part - New (to order)
                                                                                                                                    # 002
                                                                                                                                    MPN: 100322
                                                                                                                                    GASKET
                                                                                                                                    from £8.07
                                                                                                                                    from £8.07
                                                                                                                                    This part replaces part number 4168814
                                                                                                                                    O-RING Genuine Ferrari Part - New In stock
                                                                                                                                    # 003
                                                                                                                                    MPN: 210181
                                                                                                                                    CORPO SFIATO TESTA SINISTRA
                                                                                                                                    Vale dal N. 07024
                                                                                                                                    from £125.45
                                                                                                                                    from £125.45
                                                                                                                                    LH OIL FILLER HOUSING Genuine Ferrari Part - New (to order)
                                                                                                                                    # 003
                                                                                                                                    MPN: 4168786
                                                                                                                                    CORPO SFIATO TESTA SINISTRA
                                                                                                                                    Vale fino N. 07022
                                                                                                                                    from £76.08
                                                                                                                                    from £76.08
                                                                                                                                    LH OIL FILLER HOUSING Genuine Ferrari Part - New (to order)
                                                                                                                                    LH OIL FILLER HOUSING Genuine Ferrari Part - Used In stock
                                                                                                                                    # 004
                                                                                                                                    MPN: 11500411
                                                                                                                                    THREADED STUD
                                                                                                                                    STUD Genuine Ferrari Part - New (to order)
                                                                                                                                    # 005
                                                                                                                                    MPN: 210182
                                                                                                                                    CORPO SFIATO TESTA DESTRA
                                                                                                                                    Vale dal N. 07738
                                                                                                                                    RH OIL FILLER HOUSING Genuine Ferrari Part - New (to order)
                                                                                                                                    # 005
                                                                                                                                    MPN: 4168787
                                                                                                                                    CORPO SFIATO TESTA DESTRA
                                                                                                                                    Vale fino N. 07736
                                                                                                                                    from £54.60
                                                                                                                                    from £54.60
                                                                                                                                    RH OIL FILLER HOUSING Genuine Ferrari Part - New (to order)
                                                                                                                                    RH OIL FILLER HOUSING Genuine Ferrari Part - Used In stock
                                                                                                                                    # 006
                                                                                                                                    MPN: 11197777
                                                                                                                                    WASHER
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                    TAPERED RUBBER WASHER 6.4-1 (11197777) Genuine Maserati Part - New (to order)
                                                                                                                                    # 007
                                                                                                                                    MPN: 15896211
                                                                                                                                    NUT
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    This part replaces part number 15896210 which we have in stock
                                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                                                    # 008
                                                                                                                                    MPN: 147633
                                                                                                                                    GASKET
                                                                                                                                    from £2.97
                                                                                                                                    from £2.97
                                                                                                                                    This part replaces part number 102796
                                                                                                                                    END PLATE GASKET Genuine Ferrari Part - New In stock
                                                                                                                                    END PLATE GASKET (147633) Original Equipment - New In stock
                                                                                                                                    # 009
                                                                                                                                    MPN: 100325/OE
                                                                                                                                    OIL FILTER (FULL FLOW)
                                                                                                                                    (full flow - Fram PH2804-1) Alternative Use filter: 191993
                                                                                                                                    from £46.95
                                                                                                                                    from £46.95
                                                                                                                                    FRAM OIL FILTER PH28041 Genuine Ferrari Part - New In stock
                                                                                                                                    # 009
                                                                                                                                    MPN: 191993
                                                                                                                                    UFI OIL FILTER
                                                                                                                                    (UFI)
                                                                                                                                    from £18.95
                                                                                                                                    from £18.95
                                                                                                                                    This part replaces part number 111782 - and 2 more. Click to view details
                                                                                                                                    UFI OIL FILTER Genuine Ferrari Part - New (to order)
                                                                                                                                    UFI OIL FILTER (191993) Original Equipment - New In stock
                                                                                                                                    # 011
                                                                                                                                    MPN: 240273
                                                                                                                                    BASE FILTRO OLIO
                                                                                                                                    OIL FILTER BASE Genuine Ferrari Part - New (to order)
                                                                                                                                    # 011
                                                                                                                                    MPN: 240274
                                                                                                                                    ASSIEME SUPPORTO FILTRO OLID (CARELLO 37-111-999)
                                                                                                                                    OIL FILTER HOUSING Genuine Ferrari Part - New (to order)
                                                                                                                                    # 012
                                                                                                                                    MPN: 240653
                                                                                                                                    SCAMBIATORE DI CALORE
                                                                                                                                    Vale fino N. 02924
                                                                                                                                    from £1,886.64
                                                                                                                                    from £1,886.64
                                                                                                                                    HEAT EXCHANGER Genuine Ferrari Part - New (to order)
                                                                                                                                    HEAT EXCHANGER Genuine Ferrari Part - Used In stock
                                                                                                                                    # 012
                                                                                                                                    MPN: 240776/X
                                                                                                                                    SCAMBIATORE DI CALORE
                                                                                                                                    Vale dal N. 02930
                                                                                                                                    from £728.05
                                                                                                                                    from £728.05
                                                                                                                                    246 LATE OIL COOLER/EXCHANGER Genuine Ferrari Part - New (to order)
                                                                                                                                    # 013
                                                                                                                                    MPN: 240599
                                                                                                                                    TUBO USCITA SCAMBIATORE ENTRATA FILTRO
                                                                                                                                    Vale fino N. 02924
                                                                                                                                    from £152.53
                                                                                                                                    from £152.53

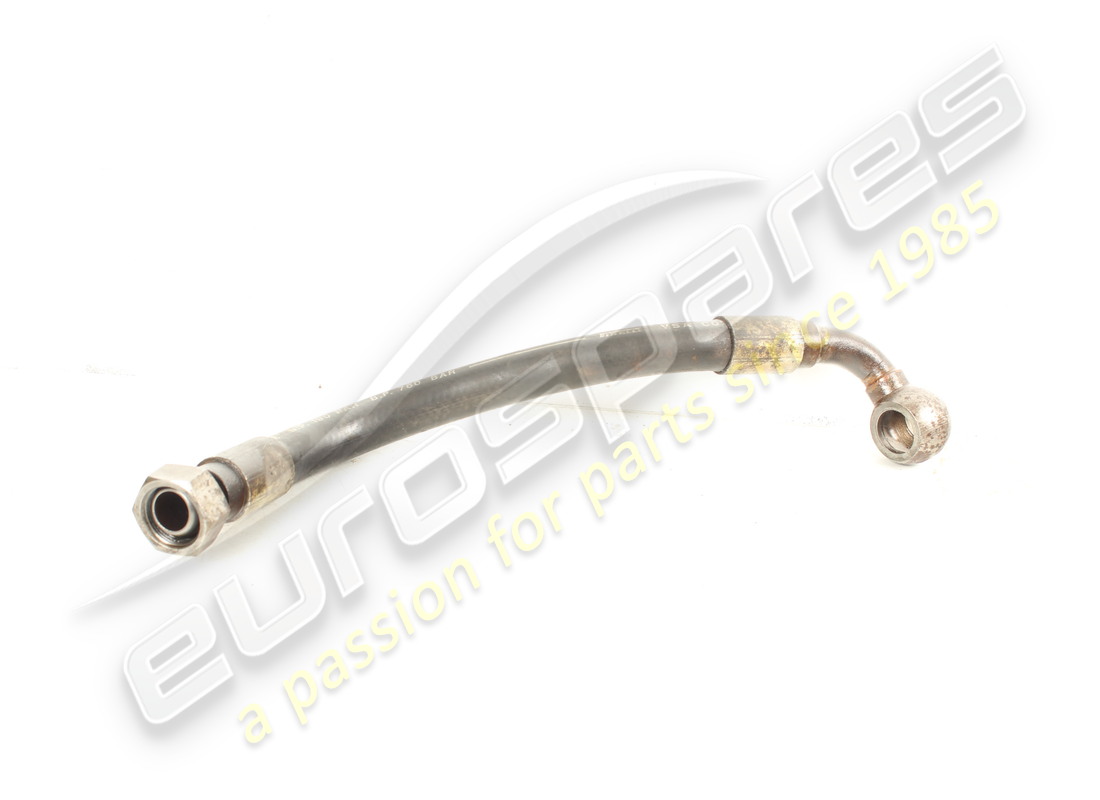

                                                                                                                                    OIL HOSE OE Genuine Ferrari Part - New (to order)
                                                                                                                                    OIL HOSE OE Genuine Ferrari Part - Used In stock
                                                                                                                                    # 013
                                                                                                                                    MPN: 240761
                                                                                                                                    TUBO DALTO SCAMBIATORE ALLA BASE FILTRO
                                                                                                                                    Vale dal N. 02930
                                                                                                                                    from £243.33
                                                                                                                                    from £243.33
                                                                                                                                    OIL HOSE OE Genuine Ferrari Part - New (to order)
                                                                                                                                    OIL HOSE OE Genuine Ferrari Part - Used In stock
                                                                                                                                    # 014
                                                                                                                                    MPN: 100305
                                                                                                                                    NIPPLO
                                                                                                                                    from £22.62
                                                                                                                                    from £22.62
                                                                                                                                    UNION Genuine Ferrari Part - New (to order)
                                                                                                                                    # 015
                                                                                                                                    MPN: 10263460
                                                                                                                                    GASKET OR SEAL
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 95119
                                                                                                                                    GASKET Genuine Ferrari Part - New In stock
                                                                                                                                    GASKET 22- 28X 1.5 (10263460) Genuine Maserati Part - New In stock
                                                                                                                                    # 016
                                                                                                                                    MPN: 4147013
                                                                                                                                    GASKET
                                                                                                                                    from £7.33
                                                                                                                                    from £7.33
                                                                                                                                    HOUSING GASKET 0E Genuine Ferrari Part - New (to order)
                                                                                                                                    # 017
                                                                                                                                    MPN: 4147015
                                                                                                                                    THREADED STUD
                                                                                                                                    STUD Genuine Ferrari Part - New (to order)
                                                                                                                                    # 018
                                                                                                                                    MPN: 4203600
                                                                                                                                    STUD
                                                                                                                                    from £12.85
                                                                                                                                    from £12.85
                                                                                                                                    STUD Genuine Ferrari Part - New (to order)
                                                                                                                                    # 019
                                                                                                                                    MPN: 11198074
                                                                                                                                    WASHER
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                                    TAPERED RUBBER WASHER D8.5-15X1.8 (11198074) Genuine Maserati Part - New (to order)
                                                                                                                                    # 020
                                                                                                                                    MPN: 16100911
                                                                                                                                    NUT
                                                                                                                                    NUT Genuine Ferrari Part - New (to order)
                                                                                                                                    # 021
                                                                                                                                    MPN: 4147295
                                                                                                                                    COMPLESSIVO VALVOLA
                                                                                                                                    from £146.57
                                                                                                                                    from £146.57
                                                                                                                                    PRESSURE RELIEF VALVE OIL Genuine Ferrari Part - New (to order)
                                                                                                                                    # 022
                                                                                                                                    MPN: 240717
                                                                                                                                    TUBO USCITA POMPA ENTRATA SCAMBIATORE
                                                                                                                                    Vale fino N. 02924
                                                                                                                                    from £259.79
                                                                                                                                    from £259.79
                                                                                                                                    OIL HOSE Genuine Ferrari Part - New (to order)
                                                                                                                                    OIL HOSE Genuine Ferrari Part - Used In stock
                                                                                                                                    # 022
                                                                                                                                    MPN: 240760/A
                                                                                                                                    TUBO USCITA POMPA OLIO ENTRATA SCAMBIATORE
                                                                                                                                    Vale dal N. 02930
                                                                                                                                    from £181.16
                                                                                                                                    from £181.16

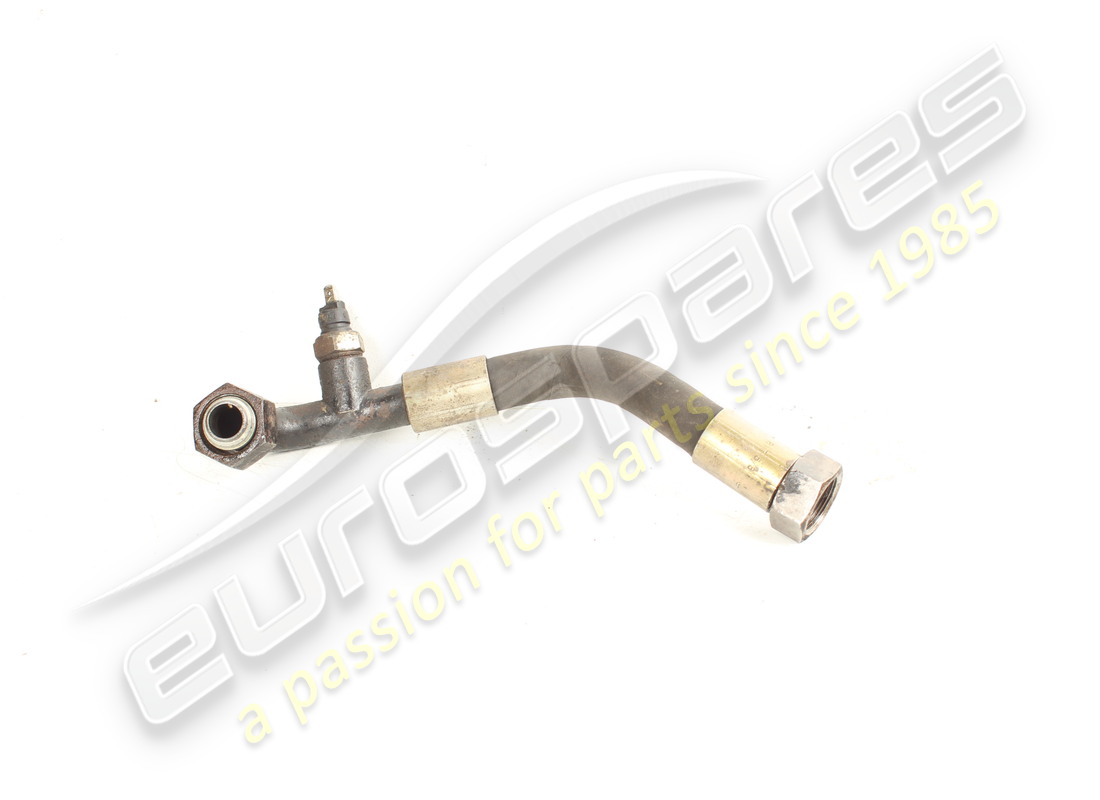

                                                                                                                                    246GT/S OIL PIPE Genuine Ferrari Part - New (to order)
                                                                                                                                    246GT/S OIL PIPE Genuine Ferrari Part - Used In stock
                                                                                                                                    # 023
                                                                                                                                    MPN: Salva16x18Tab.3403
                                                                                                                                    UNION
                                                                                                                                    UNION Genuine Ferrari Part - New (to order)
                                                                                                                                    # 024
                                                                                                                                    MPN: 4146934
                                                                                                                                    THREADED STUD
                                                                                                                                    STUD Genuine Ferrari Part - New (to order)
                                                                                                                                    # 025
                                                                                                                                    MPN: 1602411
                                                                                                                                    NUT
                                                                                                                                    NUT Genuine Ferrari Part - New (to order)
                                                                                                                                    # 026
                                                                                                                                    MPN: 11198074
                                                                                                                                    WASHER
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                                                                                    WASHER Genuine Ferrari Part - New In stock
                                                                                                                                    TAPERED RUBBER WASHER D8.5-15X1.8 (11198074) Genuine Maserati Part - New (to order)
                                                                                                                                    # 027
                                                                                                                                    MPN: 240535
                                                                                                                                    Corpo pompa olio
                                                                                                                                    from £400.61
                                                                                                                                    from £400.61
                                                                                                                                    PUMP HOUSING Genuine Ferrari Part - New (to order)
                                                                                                                                    # 027
                                                                                                                                    MPN: 240716
                                                                                                                                    CORPO POMPA OLIO COMPLETO
                                                                                                                                    PUMP HOUSING COMPLETE Genuine Ferrari Part - New (to order)
                                                                                                                                    # 028
                                                                                                                                    MPN: 14161970
                                                                                                                                    PIN
                                                                                                                                    from £0.60
                                                                                                                                    from £0.60
                                                                                                                                    PIN Genuine Ferrari Part - New (to order)
                                                                                                                                    # 029
                                                                                                                                    MPN: 102771
                                                                                                                                    BOCBOLA INGRANAGGIO COND.
                                                                                                                                    from £20.07
                                                                                                                                    from £20.07
                                                                                                                                    This part replaces part number 4203599
                                                                                                                                    BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                    # 030
                                                                                                                                    MPN: 109955
                                                                                                                                    DRIVEN GEAR
                                                                                                                                    This part replaces part number 102773 - and 1 more. Click to view details
                                                                                                                                    GEAR Genuine Ferrari Part - New (to order)
                                                                                                                                    # 031
                                                                                                                                    MPN: 102774
                                                                                                                                    DRIVING GEAR
                                                                                                                                    Supersession
                                                                                                                                    Supersession
                                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                                    # 032
                                                                                                                                    MPN: 10205620
                                                                                                                                    Key
                                                                                                                                    from £0.50
                                                                                                                                    from £0.50
                                                                                                                                    WOODRUFF KEY 2.5MM X 3.7MM L2 Genuine Ferrari Part - New (to order)
                                                                                                                                    # 033
                                                                                                                                    MPN: 4203601
                                                                                                                                    THREADED STUD
                                                                                                                                    from £3.79
                                                                                                                                    from £3.79
                                                                                                                                    STUD BOLT Genuine Ferrari Part - New (to order)
                                                                                                                                    # 034
                                                                                                                                    MPN: 4203597
                                                                                                                                    ALBERRNO
                                                                                                                                    from £17.42
                                                                                                                                    from £17.42
                                                                                                                                    PIN Genuine Ferrari Part - New (to order)
                                                                                                                                    # 035
                                                                                                                                    MPN: 10837310
                                                                                                                                    DOWEL
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    LOCATING DOWEL Genuine Ferrari Part - New (to order)
                                                                                                                                    # 036
                                                                                                                                    MPN: 102770
                                                                                                                                    BUSH
                                                                                                                                    from £17.82
                                                                                                                                    from £17.82
                                                                                                                                    This part replaces part number 240795 - and 1 more. Click to view details
                                                                                                                                    OIL PUMP BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                    # 037
                                                                                                                                    MPN: 4262709
                                                                                                                                    INGRANAGGIO DI COMANDO
                                                                                                                                    GEAR Genuine Ferrari Part - New (to order)
                                                                                                                                    # 038
                                                                                                                                    MPN: 102901
                                                                                                                                    WASHER
                                                                                                                                    from £0.71
                                                                                                                                    from £0.71
                                                                                                                                    This part replaces part number 4146930
                                                                                                                                    WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                    WASHER (102901) Genuine Maserati Part - New (to order)
                                                                                                                                    # 039
                                                                                                                                    MPN: 102900
                                                                                                                                    NUT
                                                                                                                                    from £7.66
                                                                                                                                    from £7.66
                                                                                                                                    This part replaces part number 4146931
                                                                                                                                    CASTELLATED NUT Genuine Ferrari Part - New (to order)
                                                                                                                                    # 040
                                                                                                                                    MPN: 10734301
                                                                                                                                    SPLIT PIN
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    SPLIT PIN Genuine Ferrari Part - New (to order)
                                                                                                                                    SPLIT PIN D. 2 X18 (10734301) Genuine Maserati Part - New (to order)
                                                                                                                                    # 041
                                                                                                                                    MPN: 95920107
                                                                                                                                    THREADED STUD
                                                                                                                                    from £1.50
                                                                                                                                    from £1.50
                                                                                                                                    STUD 6X18 P1 Genuine Ferrari Part - New In stock
                                                                                                                                    # 042
                                                                                                                                    MPN: OEB-REO6
                                                                                                                                    WASHER
                                                                                                                                    WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                    # 044
                                                                                                                                    MPN: 240263
                                                                                                                                    GASKET
                                                                                                                                    from £2.25
                                                                                                                                    from £2.25
                                                                                                                                    GASKET Genuine Ferrari Part - New (to order)
                                                                                                                                    # 045
                                                                                                                                    MPN: 240676
                                                                                                                                    COMPLESSIVO TUBO E FILTRO
                                                                                                                                    from £443.91
                                                                                                                                    from £443.91
                                                                                                                                    OIL PICK-UP PIPE Genuine Ferrari Part - New (to order)
                                                                                                                                    Genuine Maserati Part (no longer available to order)
                                                                                                                                    # 046
                                                                                                                                    MPN: 95529
                                                                                                                                    GASKET OR SEAL
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    GASKET WASHER Genuine Ferrari Part - New In stock
                                                                                                                                    # 047
                                                                                                                                    MPN: 9111447
                                                                                                                                    COMPLESSIVO ASTA LIVELLO
                                                                                                                                    from £142.93
                                                                                                                                    from £142.93
                                                                                                                                    DIPSTICK Genuine Ferrari Part - New (to order)
                                                                                                                                    # 048
                                                                                                                                    MPN: 95860005
                                                                                                                                    SEALING RING
                                                                                                                                    from £4.12
                                                                                                                                    from £4.12
                                                                                                                                    O RING Genuine Ferrari Part - New In stock
                                                                                                                                    # 049
                                                                                                                                    MPN: 9111443
                                                                                                                                    COMPLESSIVO TUBO PER ASTA LIVELLO
                                                                                                                                    from £69.79
                                                                                                                                    from £69.79
                                                                                                                                    DIPSTICK TUBE Genuine Ferrari Part - New (to order)
                                                                                                                                    # 050
                                                                                                                                    MPN: 240366
                                                                                                                                    COLONNETTA
                                                                                                                                    from £33.90
                                                                                                                                    from £33.90
                                                                                                                                    BOLT Genuine Ferrari Part - New (to order)
                                                                                                                                    # 051
                                                                                                                                    MPN: U.S./B70-210MB
                                                                                                                                    NUT
                                                                                                                                    NUT Genuine Ferrari Part - New (to order)
                                                                                                                                    # 052
                                                                                                                                    MPN: 10282460
                                                                                                                                    WASHER
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                    Maserati Part 10282460 (10282460) Genuine Maserati Part - New (to order)
                                                                                                                                    # 054
                                                                                                                                    MPN: 10259960
                                                                                                                                    GASKET
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    This part replaces part number 95017
                                                                                                                                    GASKET Genuine Ferrari Part - New In stock
                                                                                                                                    GASKET 18- 24X 1 (10259960) Genuine Maserati Part - New In stock
                                                                                                                                    GASKET (10259960) Original Equipment - New In stock
                                                                                                                                    # 055
                                                                                                                                    MPN: 240340
                                                                                                                                    MORSETTO
                                                                                                                                    from £8.43
                                                                                                                                    from £8.43

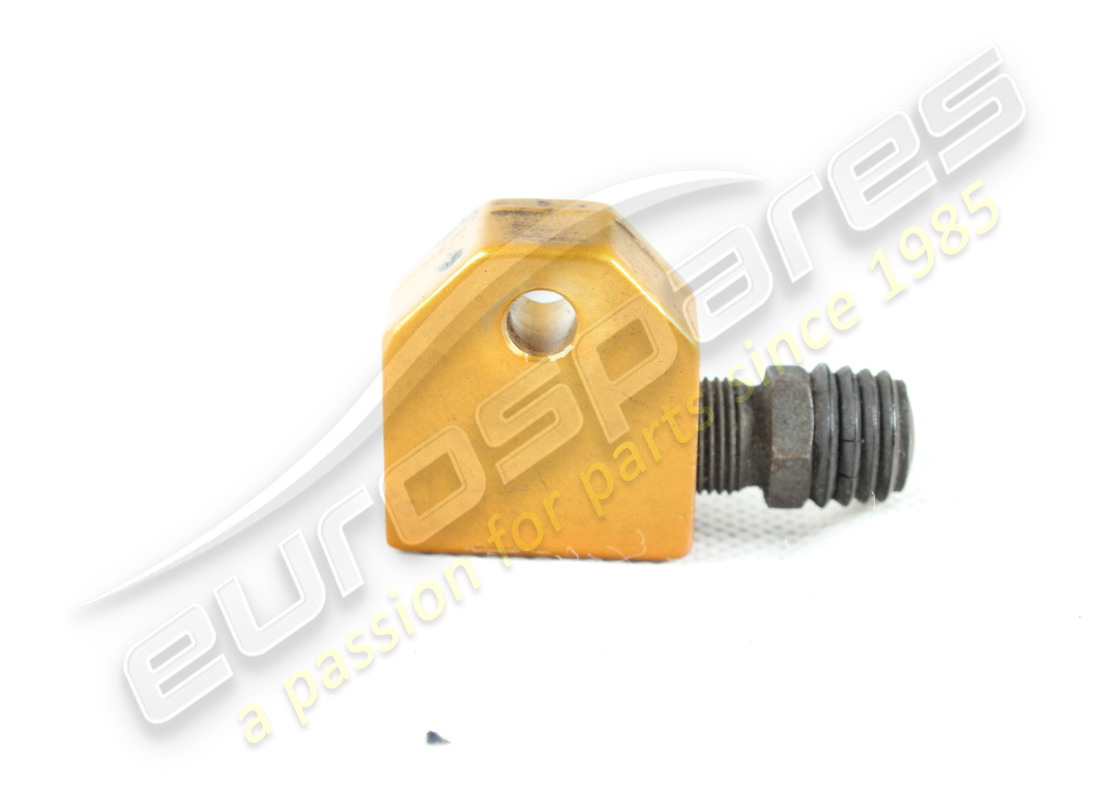

                                                                                                                                    BRACKET Genuine Ferrari Part - New (to order)
                                                                                                                                    # 056
                                                                                                                                    MPN: 10977511
                                                                                                                                    BOLT
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    SCREW Genuine Ferrari Part - New In stock
                                                                                                                                    # 057
                                                                                                                                    MPN: 11195470
                                                                                                                                    WASHER
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    5MM WAVY WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                    # 058
                                                                                                                                    MPN: 100332
                                                                                                                                    SUMP FILTER
                                                                                                                                    from £9.31
                                                                                                                                    from £9.31
                                                                                                                                    This part replaces part number 240387 - and 9 more. Click to view details
                                                                                                                                    FILTER Genuine Ferrari Part - New In stock
                                                                                                                                    FILTER Genuine Ferrari Part - Used In stock
                                                                                                                                    OIL SUMP INTAKE FILTER (100332) Genuine Maserati Part - New (to order)
                                                                                                                                    # 059
                                                                                                                                    MPN: 103944
                                                                                                                                    FILTER SEAL RING
                                                                                                                                    from £36.75
                                                                                                                                    from £36.75
                                                                                                                                    This part replaces part number 24124 - and 3 more. Click to view details

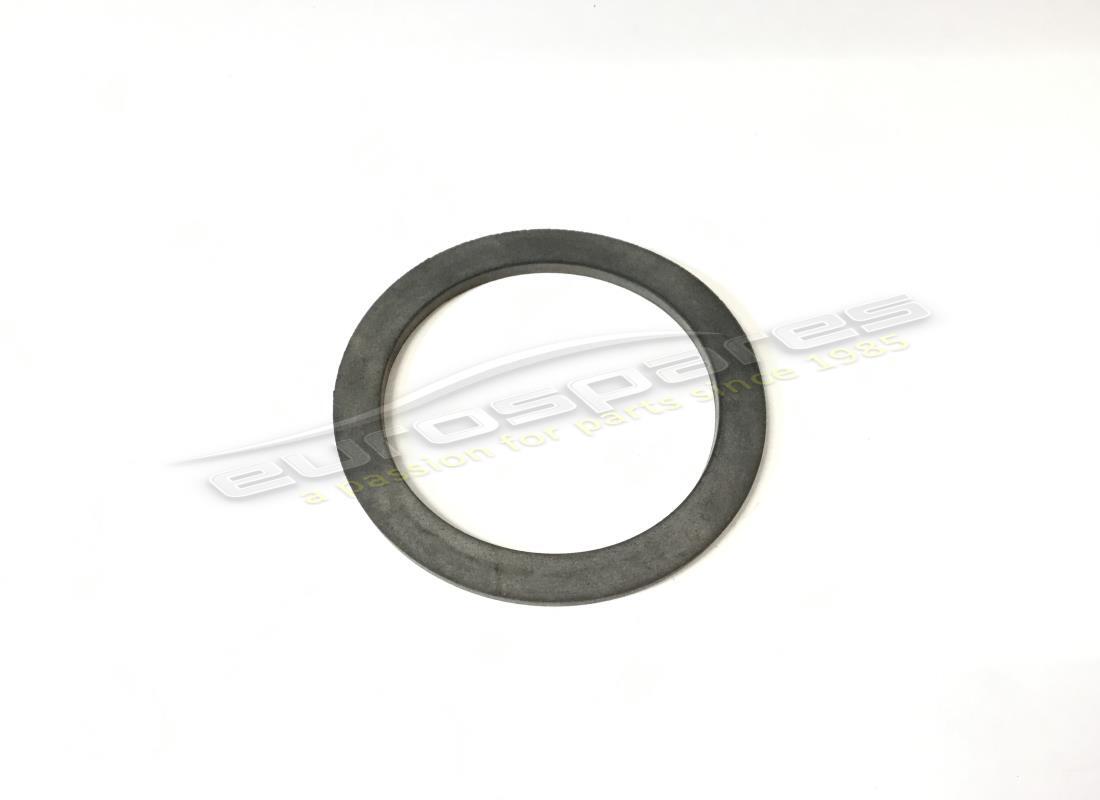

                                                                                                                                    RING Genuine Ferrari Part - New In stock
                                                                                                                                    RING Genuine Ferrari Part - Used In stock
                                                                                                                                    # 060
                                                                                                                                    MPN: 125340
                                                                                                                                    OIL PRESSURE UNIT M16X1.5
                                                                                                                                    from £134.00
                                                                                                                                    from £134.00
                                                                                                                                    This part replaces part number 100343 - and 1 more. Click to view details

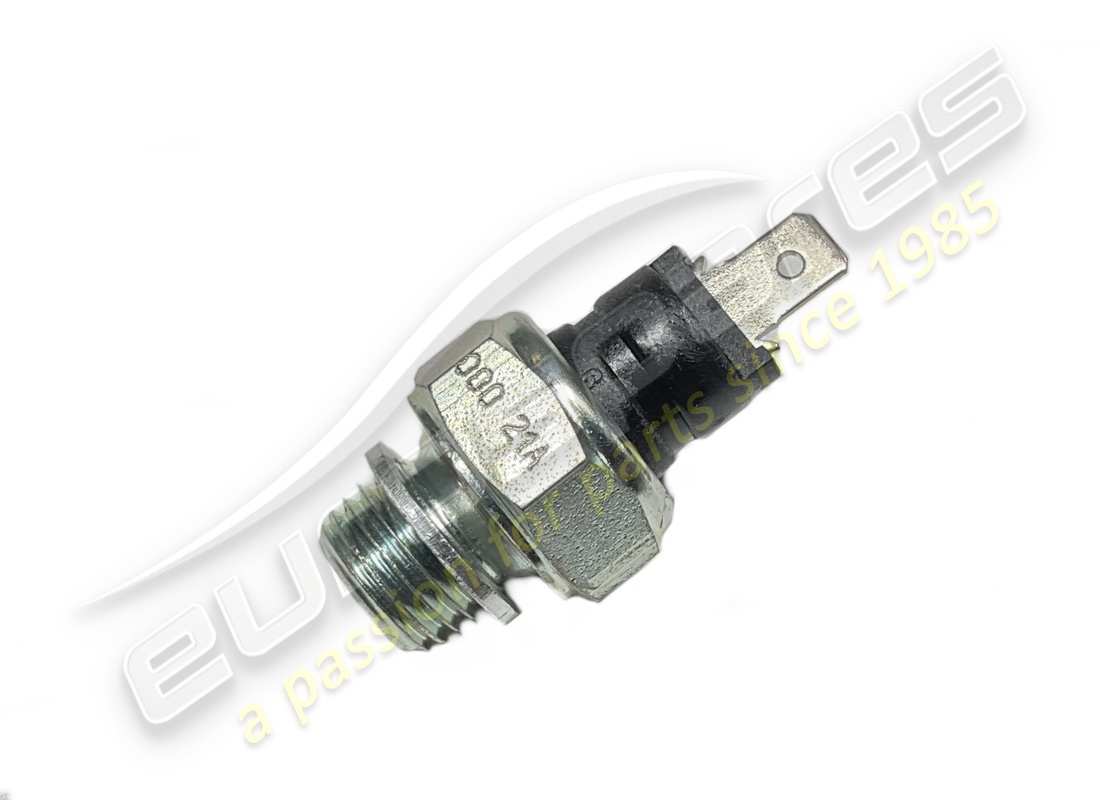

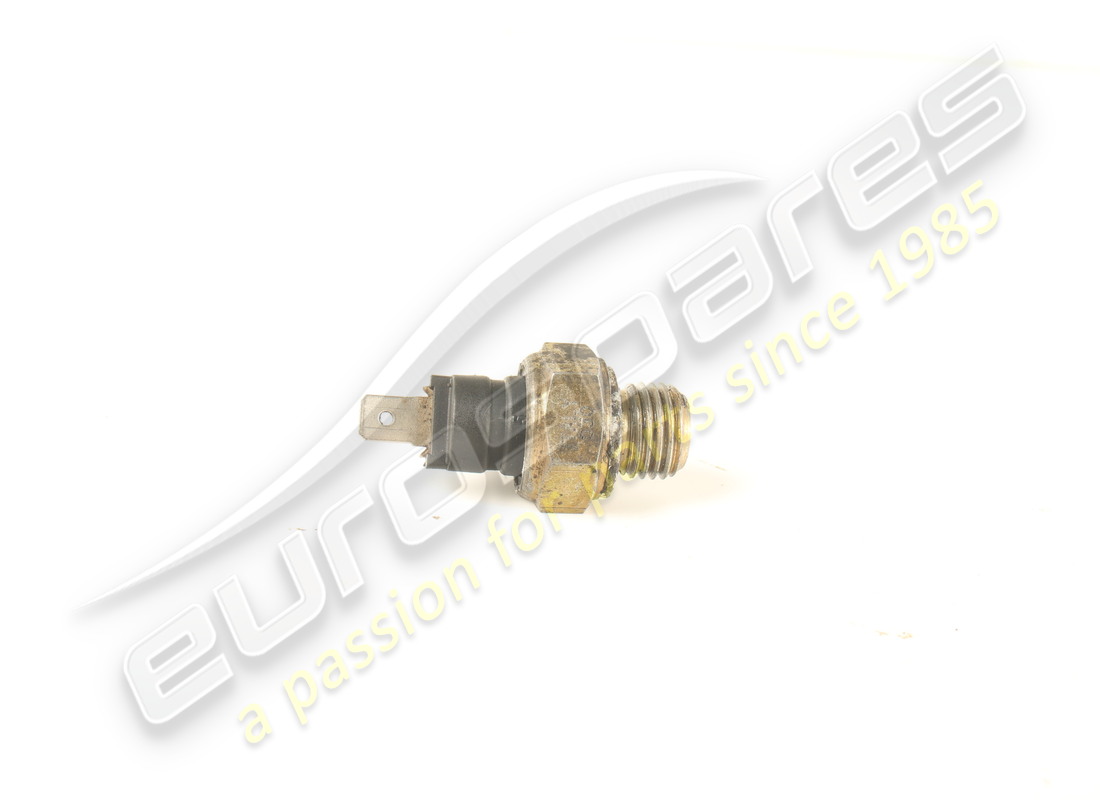

                                                                                                                                    OIL PRESSURE SENDER(16X1.50) Genuine Ferrari Part - New In stock
                                                                                                                                    OIL PRESSURE SENDER(16X1.50) (125340) Original Equipment - New (to order)
                                                                                                                                    # 061
                                                                                                                                    MPN: 1278660
                                                                                                                                    GASKET
                                                                                                                                    GASKET Genuine Ferrari Part - New (to order)
                                                                                                                                    # 062
                                                                                                                                    MPN: 9100804
                                                                                                                                    UNION
                                                                                                                                    from £51.29
                                                                                                                                    from £51.29
                                                                                                                                    This part replaces part number 100804
                                                                                                                                    NIPPLE Genuine Ferrari Part - New (to order)
                                                                                                                                    # 063
                                                                                                                                    MPN: 10264560
                                                                                                                                    GASKET
                                                                                                                                    from £0.47
                                                                                                                                    from £0.47
                                                                                                                                    GASKET Genuine Ferrari Part - New In stock
                                                                                                                                    # 064
                                                                                                                                    MPN: 16045121
                                                                                                                                    SCREW
                                                                                                                                    from £10.73
                                                                                                                                    from £10.73
                                                                                                                                    BOLT Genuine Ferrari Part - New (to order)
                                                                                                                                    BOLT Genuine Ferrari Part - Used In stock
                                                                                                                                    # 065
                                                                                                                                    MPN: 4133922
                                                                                                                                    OIL SENDER UNIT
                                                                                                                                    from £12.50
                                                                                                                                    from £12.50
                                                                                                                                    OIL SENDER UNIT OE Genuine Ferrari Part - New In stock
                                                                                                                                    OIL SENDER UNIT OE Genuine Ferrari Part - Used In stock
                                                                                                                                    # 066
                                                                                                                                    MPN: 4222082
                                                                                                                                    PLUG
                                                                                                                                    from £28.56
                                                                                                                                    from £28.56
                                                                                                                                    DRAIN PLUG Genuine Ferrari Part - New (to order)
                                                                                                                                    # 067
                                                                                                                                    MPN: 10264658
                                                                                                                                    GASKET
                                                                                                                                    WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                    # 068
                                                                                                                                    MPN: 240774
                                                                                                                                    BRACKET / SUPPORT
                                                                                                                                    from £16.36
                                                                                                                                    from £16.36
                                                                                                                                    UNION Genuine Ferrari Part - New (to order)
                                                                                                                                    UNION Genuine Ferrari Part - Used In stock
                                                                                                                                    # 068
                                                                                                                                    MPN: 240775
                                                                                                                                    ASSIEME STAFFA E SCAMBIATORE
                                                                                                                                    HEAT EXCHANGER SUPPORT Genuine Ferrari Part - New (to order)
                                                                                                                                    # 069
                                                                                                                                    MPN: 10902321
                                                                                                                                    BULTONE
                                                                                                                                    from £0.71
                                                                                                                                    from £0.71
                                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                                    SCREW (10902321) Genuine Maserati Part - New (to order)
                                                                                                                                    # 070
                                                                                                                                    MPN: 12574211
                                                                                                                                    SELF LOCKING NUT
                                                                                                                                    from £0.71
                                                                                                                                    from £0.71
                                                                                                                                    Genuine Ferrari Part (no longer available to order)
                                                                                                                                    NYLON STOP HEX. NUT M6X7.8 (12574211) Genuine Maserati Part - New In stock
                                                                                                                                    # 071
                                                                                                                                    MPN: 9100991
                                                                                                                                    PARATIA LIMITATRICE SCUOTIMENTO OLIO
                                                                                                                                    from £192.87
                                                                                                                                    from £192.87
                                                                                                                                    SHIELD Genuine Ferrari Part - New (to order)
                                                                                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
