ferrari 208 turbo (1989) interior trim, accessories and seats parts diagram

113 - Interior Trim, Accessories and Seats

Ferrari 208 Turbo (1989) Interior Trim, Accessories and Seats Parts Diagram

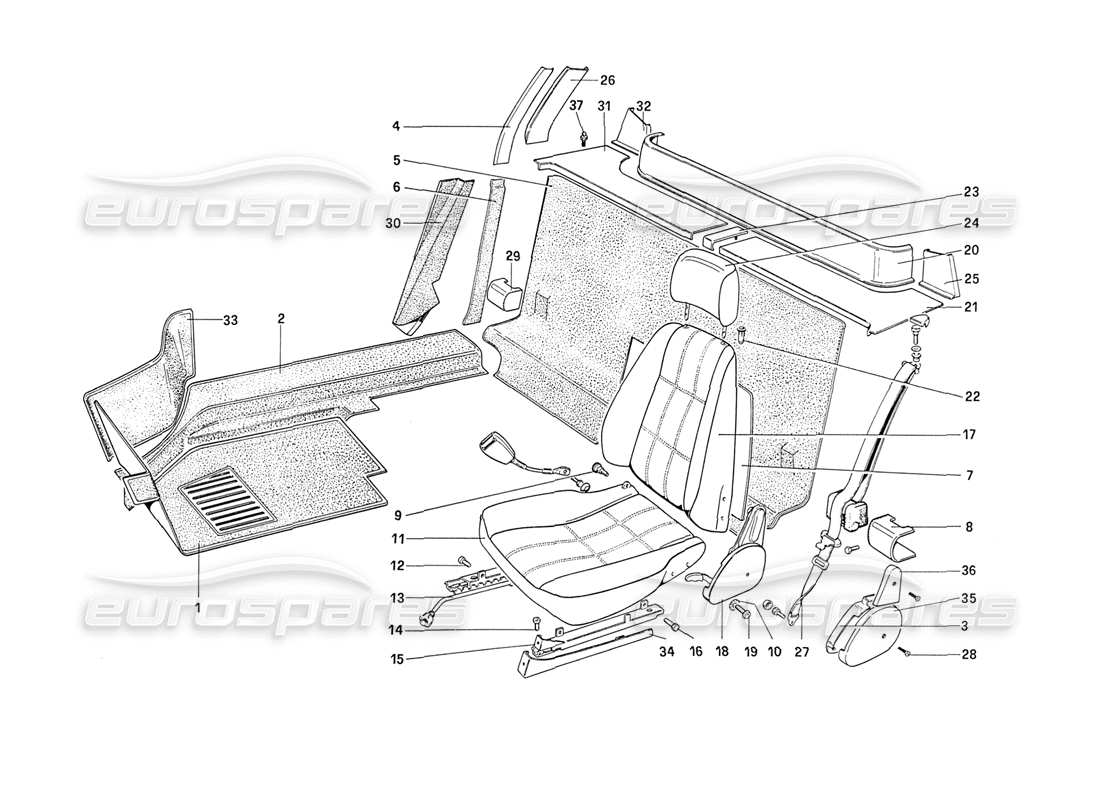

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 60143104
                                                                LH FRONT CARPET GTB
                                                                Until car no. 68561
                                                                from £239.91
                                                                from £239.91
                                                                # 001
                                                                MPN: 60744300
                                                                RH FRONT CARPET GTB
                                                                Until car no. 68561
                                                                from £106.78
                                                                from £106.78
                                                                # 001
                                                                MPN: 60776500
                                                                RH FRONT CARPET GTS
                                                                Until car no. 68561
                                                                from £101.50
                                                                from £101.50
                                                                # 001
                                                                MPN: 61361600
                                                                LH FRONT CARPET GTB
                                                                Until car no. 68561
                                                                from £154.68
                                                                from £154.68
                                                                # 001
                                                                MPN: 62367200
                                                                RH FRONT CARPET GTB
                                                                From car no. 68563
                                                                from £176.39
                                                                from £176.39
                                                                # 001
                                                                MPN: 62367300
                                                                LH FRONT CARPET GTB
                                                                From car no. 68563
                                                                from £306.26
                                                                from £306.26
                                                                # 001
                                                                MPN: 62367400
                                                                RH FRONT CARPET GTS
                                                                From car no. 68563
                                                                from £199.32
                                                                from £199.32
                                                                # 001
                                                                MPN: 62367500
                                                                LH FRONT CARPET GTS
                                                                From car no. 68563
                                                                from £126.55
                                                                from £126.55
                                                                # 002
                                                                MPN: 61982500
                                                                RH CARPET GTB
                                                                from £108.21
                                                                from £108.21
                                                                # 002
                                                                MPN: 61982600
                                                                LH CARPET GTB
                                                                from £108.50
                                                                from £108.50
                                                                # 002
                                                                MPN: 61983300
                                                                RH CARPET GTS
                                                                from £104.60
                                                                from £104.60
                                                                # 002
                                                                MPN: 61983400
                                                                LH CARPET GTS
                                                                from £120.75
                                                                from £120.75
                                                                # 003
                                                                MPN: 61938600
                                                                RH COVER WITH COVERING
                                                                from £155.11
                                                                from £155.11
                                                                # 003
                                                                MPN: 61938700
                                                                LH COVER WITH COVERING
                                                                from £85.31
                                                                from £85.31
                                                                # 004
                                                                MPN: 60997700
                                                                RIGHT MOULDING + COVERING GTB
                                                                from £67.29
                                                                from £67.29
                                                                # 004
                                                                MPN: 60997800
                                                                LEFT MOULDING + COVERING GTB
                                                                from £74.08
                                                                from £74.08
                                                                # 004
                                                                MPN: 62373000
                                                                RH MOULDING + COVERING GTB
                                                                From car 69369
                                                                from £99.75
                                                                from £99.75
                                                                # 004
                                                                MPN: 62373100
                                                                LH MOULDING + COVERING GTB
                                                                From car 69369
                                                                from £99.75
                                                                from £99.75
                                                                # 005
                                                                MPN: 61352200
                                                                CARPET GTB
                                                                from £82.80
                                                                from £82.80
                                                                # 005
                                                                MPN: 61360800
                                                                CARPET GTS
                                                                from £72.45
                                                                from £72.45
                                                                # 006
                                                                MPN: 61459100
                                                                RH MOULDING WITH COVERING GTB
                                                                from £144.56
                                                                from £144.56
                                                                # 006
                                                                MPN: 61459200
                                                                LH MOULDING WITH COVERING GTB
                                                                from £97.81
                                                                from £97.81
                                                                # 007
                                                                MPN: 60209400
                                                                REAR PLATE, DRIVER SIDE
                                                                from £199.64
                                                                from £199.64
                                                                # 007
                                                                MPN: 60765400
                                                                REAR PLATE, PASSENGER SIDE WITH POCKET
                                                                from £309.75
                                                                from £309.75
                                                                # 008
                                                                MPN: 61917300
                                                                LH COVER WITH COVERING GTS
                                                                from £84.05
                                                                from £84.05
                                                                # 008
                                                                MPN: 61943300
                                                                LH COVER WITH COVERING GTB
                                                                from £138.31
                                                                from £138.31
                                                                # 009
                                                                MPN: 60773600
                                                                SCREW
                                                                from £10.21
                                                                from £10.21
                                                                # 010
                                                                MPN: 106852
                                                                WASHER
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 10516670 which we have in stock - and 2 more. Click to view details
                                                                # 011
                                                                MPN: 61786000
                                                                CUSCHION RH SEAT WITH COVERING
                                                                from £856.89
                                                                from £856.89
                                                                # 011
                                                                MPN: 61786600
                                                                CUSCHION LH SEAT WITH COVERING
                                                                from £795.74
                                                                from £795.74
                                                                # 011
                                                                MPN: 61787000
                                                                COVERING
                                                                from £774.61
                                                                from £774.61
                                                                # 012
                                                                MPN: 16043221
                                                                SCREW
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 13842414 - and 1 more. Click to view details
                                                                # 013
                                                                MPN: 60369006
                                                                GUIDE WITH ADJUSTER RH SEAT
                                                                from £180.98
                                                                from £180.98
                                                                This part replaces part number 20169603 - and 1 more. Click to view details
                                                                # 013
                                                                MPN: 60369105
                                                                GUIDE WITH ADJUSTER LH SEAT
                                                                from £114.90
                                                                from £114.90
                                                                This part replaces part number 20169702 - and 1 more. Click to view details
                                                                # 014
                                                                MPN: 40294308
                                                                SCREW
                                                                from £2.68
                                                                from £2.68
                                                                This part replaces part number 20293306
                                                                # 015
                                                                MPN: 61880500
                                                                EXTERNAL GUIDE FOR RH SEAT
                                                                from £85.95
                                                                from £85.95
                                                                # 015
                                                                MPN: 61880600
                                                                EXTERNAL GUIDE FOR LH SEAT
                                                                from £85.95
                                                                from £85.95
                                                                # 016
                                                                MPN: 40294407
                                                                SCREW
                                                                from £1.76
                                                                from £1.76
                                                                # 017
                                                                MPN: 61786200
                                                                SQUAB RH SEAT WITH COVERING
                                                                from £871.78
                                                                from £871.78
                                                                # 017
                                                                MPN: 61786800
                                                                SQUAB LH SEAT WITH COVERING
                                                                from £840.43
                                                                from £840.43
                                                                # 017
                                                                MPN: 61787100
                                                                COVERING
                                                                from £1,078.38
                                                                from £1,078.38
                                                                # 018
                                                                MPN: 60856300
                                                                ADJUSTER RH SEAT
                                                                from £136.79
                                                                from £136.79
                                                                This part replaces part number 60843300 - and 1 more. Click to view details
                                                                # 018
                                                                MPN: 60856400
                                                                ADJUSTER LH SEAT
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 60843400
                                                                # 019
                                                                MPN: 14306521
                                                                SCREW
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 14306426
                                                                # 020
                                                                MPN: 60997400
                                                                MOULDING WITH COVERING
                                                                from £140.00
                                                                from £140.00
                                                                # 021
                                                                MPN: 60997600
                                                                LH MOULDING WITH COVERING GTB
                                                                from £176.99
                                                                from £176.99
                                                                # 021
                                                                MPN: 61134900
                                                                LH MOULDING WITH COVERING GTS - UNTIL 1987
                                                                from £143.52
                                                                from £143.52
                                                                # 021
                                                                MPN: 62487000
                                                                LH MOULDING WITH COVERING GTS - FROM1988
                                                                from £152.58
                                                                from £152.58
                                                                # 022
                                                                MPN: 20058905
                                                                HEADREST PLASTIC INSERT
                                                                from £19.41
                                                                from £19.41
                                                                # 023
                                                                MPN: 60998400
                                                                MOULDING WITH COVERING
                                                                from £24.72
                                                                from £24.72
                                                                # 024
                                                                MPN: 60757100
                                                                headrest
                                                                from £411.60
                                                                from £411.60
                                                                # 024
                                                                MPN: 61863300
                                                                COVERING
                                                                from £303.01
                                                                from £303.01
                                                                This part replaces part number 60748300 - and 2 more. Click to view details
                                                                # 025
                                                                MPN: 60998200
                                                                LH MOULDING WITH COVERING
                                                                For GTB until car 69367 - For GTS until 1987
                                                                from £70.74
                                                                from £70.74
                                                                # 025
                                                                MPN: 62353900
                                                                LH MOULDING WITH COVERING GTB
                                                                From car 69369
                                                                from £77.79
                                                                from £77.79
                                                                # 025
                                                                MPN: 62487600
                                                                LH MOULDING WITH COVERING GTS
                                                                FROM 1988
                                                                from £62.03
                                                                from £62.03
                                                                # 026
                                                                MPN: 61134200
                                                                COVERING GTS
                                                                from £5.98
                                                                from £5.98
                                                                # 026
                                                                MPN: 61135000
                                                                RH MOULDING WITH COVERING GTS
                                                                from £91.01
                                                                from £91.01
                                                                # 026
                                                                MPN: 61135200
                                                                LH MOULDING WITH COVERING GTS
                                                                from £91.01
                                                                from £91.01
                                                                # 027
                                                                MPN: 60791600
                                                                SAFETY BELTS
                                                                Supersession
                                                                Supersession
                                                                # 027
                                                                MPN: 62482500
                                                                SAFETY BELTS
                                                                In alternative to 60791600
                                                                Supersession
                                                                Supersession
                                                                # 028
                                                                MPN: 60729900
                                                                SCREW
                                                                from £1.12
                                                                from £1.12
                                                                # 029
                                                                MPN: 61917200
                                                                RH COVER WITH COVERING GTS
                                                                from £84.05
                                                                from £84.05
                                                                # 029
                                                                MPN: 61943300
                                                                RH COVER WITH COVERING GTB
                                                                from £138.31
                                                                from £138.31
                                                                # 030
                                                                MPN: 60787500
                                                                RH MOULDING WITH COVERING GTS
                                                                from £64.76
                                                                from £64.76
                                                                # 030
                                                                MPN: 60787600
                                                                LH MOULDING WITH COVERING GTS
                                                                from £68.00
                                                                from £68.00
                                                                # 031
                                                                MPN: 60997500
                                                                RH MOULDING WITH COVERING GTB
                                                                from £168.56
                                                                from £168.56
                                                                # 031
                                                                MPN: 61134800
                                                                RH MOULDING WITH COVERING GTS
                                                                UNTIL 1987
                                                                from £136.69
                                                                from £136.69
                                                                # 031
                                                                MPN: 62486900
                                                                RH MOULDING WITH COVERING GTS
                                                                FROM 1988
                                                                from £217.97
                                                                from £217.97
                                                                # 032
                                                                MPN: 60998100
                                                                RH MOULDING WITH COVERING
                                                                For GTB until car 69367 - For GTS until 1987
                                                                from £70.74
                                                                from £70.74
                                                                # 032
                                                                MPN: 62353800
                                                                RH MOULDING WITH COVERING GTB
                                                                From car 69369
                                                                from £77.79
                                                                from £77.79
                                                                # 032
                                                                MPN: 62487500
                                                                RH MOULDING WITH COVERING GTS
                                                                FROM 1988
                                                                from £62.03
                                                                from £62.03
                                                                # 033
                                                                MPN: 61982300
                                                                RH CARPET GTB
                                                                from £22.13
                                                                from £22.13
                                                                # 033
                                                                MPN: 61982400
                                                                (V) LH CARPET GTB
                                                                from £22.13
                                                                from £22.13
                                                                # 033
                                                                MPN: 61983100
                                                                RH CARPET GTS
                                                                from £86.87
                                                                from £86.87
                                                                # 033
                                                                MPN: 61983200
                                                                LH CARPET GTS
                                                                from £51.75
                                                                from £51.75
                                                                # 033
                                                                MPN: 62492200
                                                                (N) LH CARPET GTB
                                                                from £55.68
                                                                from £55.68
                                                                # 034
                                                                MPN: 61880700
                                                                RH COVER WITH COVERING
                                                                from £160.87
                                                                from £160.87
                                                                # 034
                                                                MPN: 61880800
                                                                LH COVER WITH COVERING
                                                                from £159.94
                                                                from £159.94
                                                                # 035
                                                                MPN: 61938200
                                                                RH COVER WITH COVERING FOR RH SEAT
                                                                from £155.11
                                                                from £155.11
                                                                # 035
                                                                MPN: 61938300
                                                                LH COVER WITH COVERING FOR RH SEAT
                                                                from £155.11
                                                                from £155.11
                                                                # 036
                                                                MPN: 61938400
                                                                RH COVER WITH COVERING FOR LH SEAT
                                                                from £155.11
                                                                from £155.11
                                                                # 036
                                                                MPN: 61938500
                                                                LH COVER WITH COVERING FOR LH SEAT
                                                                from £85.31
                                                                from £85.31
                                                                # 037
                                                                MPN: 60084407
                                                                PIN
                                                                from £3.23
                                                                from £3.23
