ferrari 208 turbo (1989) air conditioning compressor and controls (up to car no. 77246) parts diagram

049 - Air Conditioning Compressor and Controls (Up To Car No. 77246)

Ferrari 208 Turbo (1989) Air Conditioning Compressor and Controls (Up To Car No. 77246) Parts Diagram

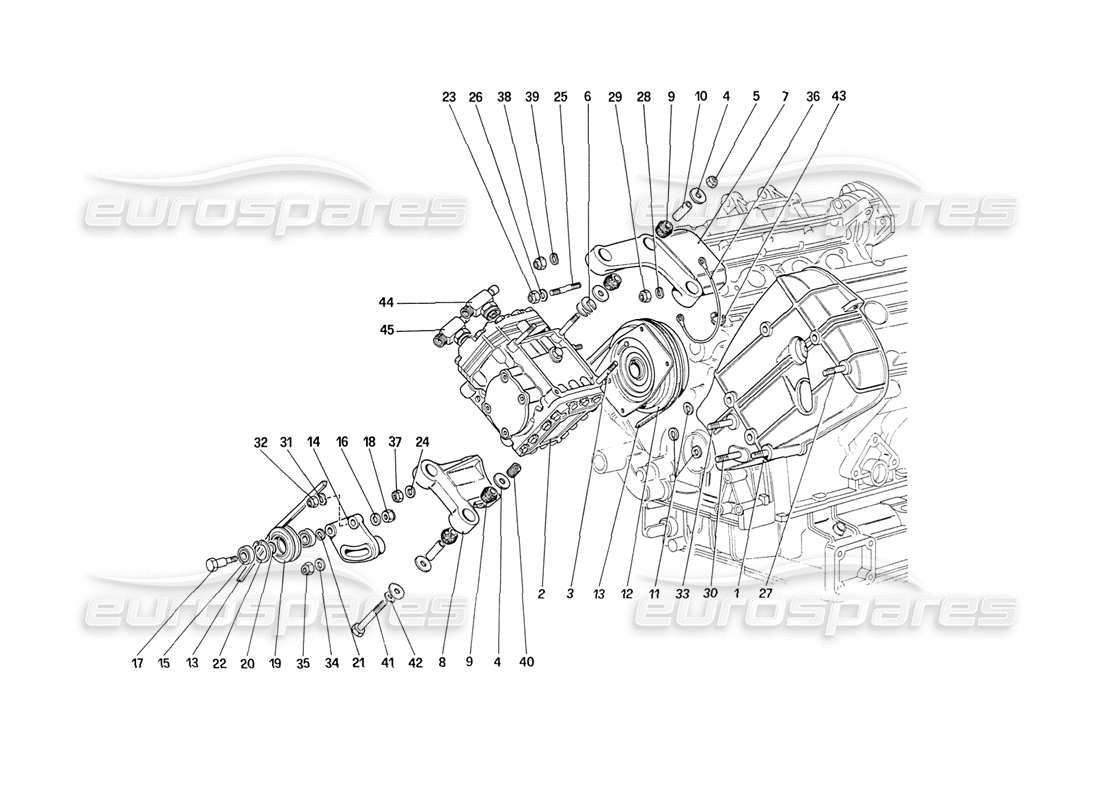

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 131828
                                                                                        LEFT, COVER COMPLETE
                                                                                        from £382.79
                                                                                        from £382.79
                                                                                        This part replaces part number 108098
                                                                                        # 002
                                                                                        MPN: 111222
                                                                                        COMPRESSOR WITH PULLEY
                                                                                        from £995.00
                                                                                        from £995.00
                                                                                        This part replaces part number 080.2112.000 - 209. U - and 5 more. Click to view details
                                                                                        # 003
                                                                                        MPN: 105044
                                                                                        STUD
                                                                                        from £36.58
                                                                                        from £36.58
                                                                                        # 004
                                                                                        MPN: 108051
                                                                                        SHEARED WASHER
                                                                                        from £1.98
                                                                                        from £1.98
                                                                                        # 005
                                                                                        MPN: 12574511
                                                                                        SELF LOCKING NUT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 006
                                                                                        MPN: 105039
                                                                                        WASHER
                                                                                        Possible fitting
                                                                                        from £10.92
                                                                                        from £10.92

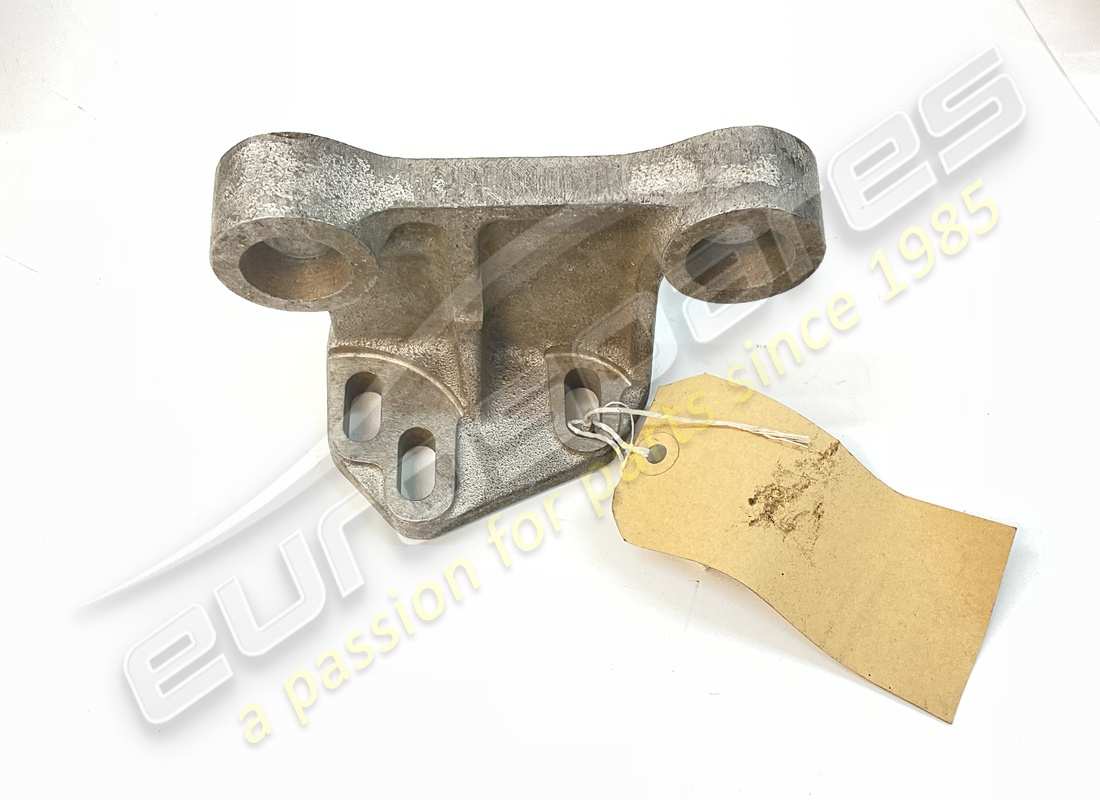

                                                                                        # 007
                                                                                        MPN: 108050
                                                                                        UPPER SUPPORT
                                                                                        from £194.92
                                                                                        from £194.92
                                                                                        This part replaces part number 107869 - and 1 more. Click to view details
                                                                                        # 008
                                                                                        MPN: 108056
                                                                                        LOWER SUPPORT
                                                                                        from £68.01
                                                                                        from £68.01
                                                                                        # 009
                                                                                        MPN: 107335
                                                                                        RUBBER GROMMET
                                                                                        Heavy Duty Type - Replace as Set
                                                                                        from £11.22
                                                                                        from £11.22
                                                                                        # 010
                                                                                        MPN: 108052
                                                                                        SPACER TUBE
                                                                                        from £17.33
                                                                                        from £17.33
                                                                                        # 011
                                                                                        MPN: 107835
                                                                                        WASHER BETWEEN COVER AND LOWER SUPPORT
                                                                                        from £7.82
                                                                                        from £7.82
                                                                                        # 012
                                                                                        MPN: 105148
                                                                                        A/C. CLUTCH
                                                                                        Supersession
                                                                                        Supersession

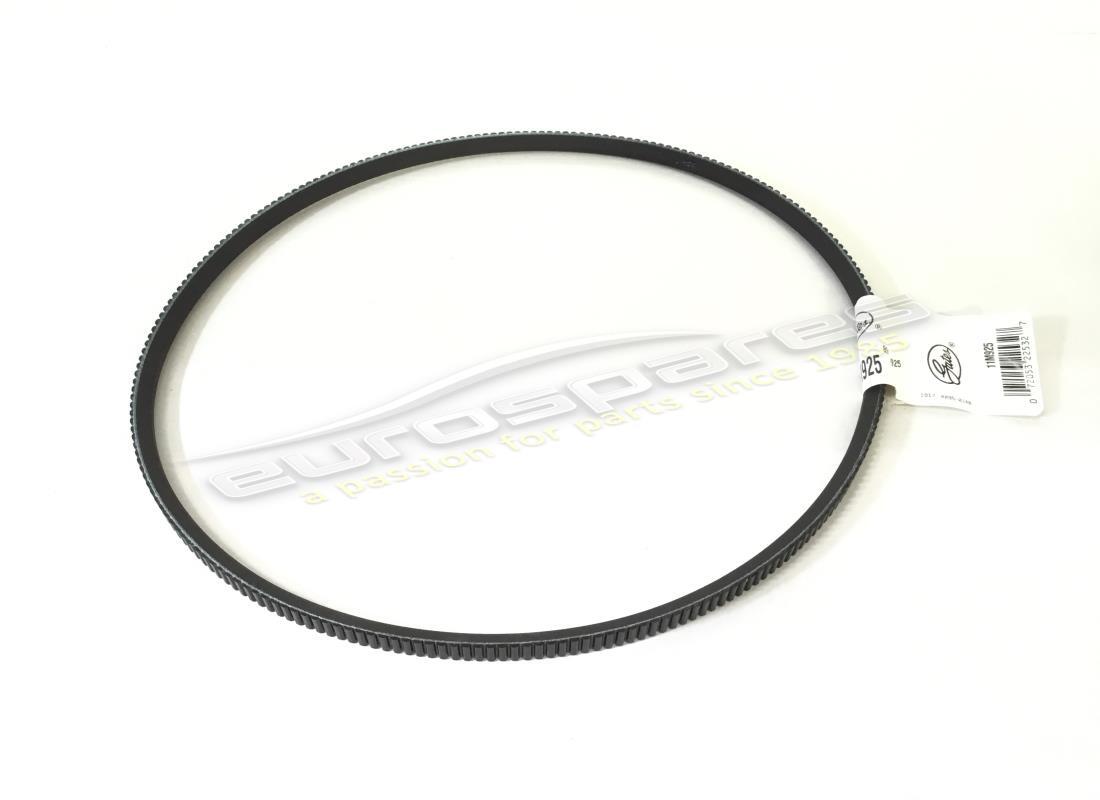

                                                                                        # 013
                                                                                        MPN: 105046
                                                                                        CONTROL BELT FOR COMPRESSOR
                                                                                        from £72.28
                                                                                        from £72.28
                                                                                        This part replaces part number 320382 which we have in stock
                                                                                        # 014
                                                                                        MPN: 105051
                                                                                        SUPPORT
                                                                                        from £338.61
                                                                                        from £338.61

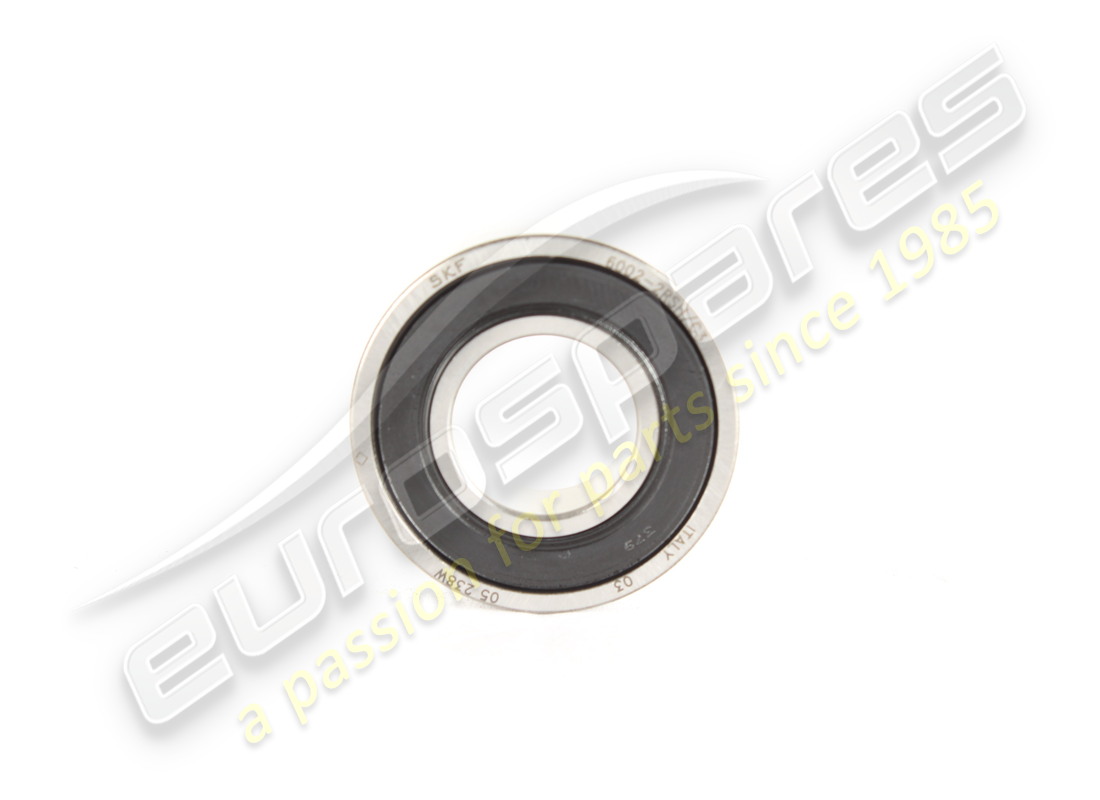

                                                                                        # 015
                                                                                        MPN: 105038
                                                                                        SEALED BALL BEARING 9MM WIDE
                                                                                        from £10.49
                                                                                        from £10.49
                                                                                        # 016
                                                                                        MPN: 103025
                                                                                        WASHER
                                                                                        from £23.18
                                                                                        from £23.18
                                                                                        # 017
                                                                                        MPN: 105048
                                                                                        PIN FOR SUPPORT
                                                                                        from £53.52
                                                                                        from £53.52
                                                                                        # 018
                                                                                        MPN: 148020
                                                                                        SELF LOCKING NUT
                                                                                        from £2.57
                                                                                        from £2.57
                                                                                        This part replaces part number 102825 - and 3 more. Click to view details

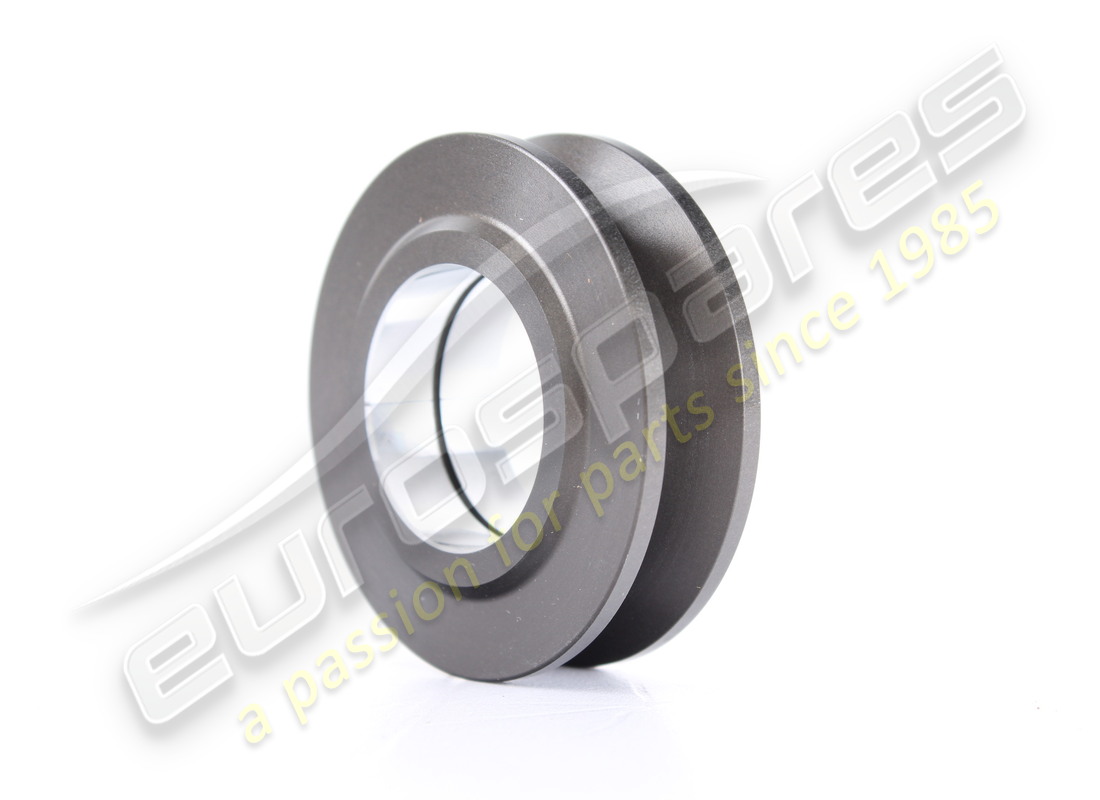

                                                                                        # 019
                                                                                        MPN: 121405
                                                                                        PULLEY FOR BELT STRETCHER
                                                                                        from £103.87
                                                                                        from £103.87
                                                                                        This part replaces part number 107840
                                                                                        # 020
                                                                                        MPN: 107841
                                                                                        INNER SPACER
                                                                                        from £31.83
                                                                                        from £31.83
                                                                                        # 021
                                                                                        MPN: 107842
                                                                                        SPACER
                                                                                        from £12.75
                                                                                        from £12.75
                                                                                        # 022
                                                                                        MPN: 11059075
                                                                                        SEEGER RING
                                                                                        from £0.48
                                                                                        from £0.48
                                                                                        # 023
                                                                                        MPN: 12574511
                                                                                        SELF LOCKING NUT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 024
                                                                                        MPN: 107993
                                                                                        WASHER
                                                                                        from £10.90
                                                                                        from £10.90
                                                                                        # 025
                                                                                        MPN: 13546621
                                                                                        STUD FIXING UPPER SUPPORT TO COVER
                                                                                        from £4.26
                                                                                        from £4.26
                                                                                        # 026
                                                                                        MPN: 12601471
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 027
                                                                                        MPN: 13517221
                                                                                        STUD
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 028
                                                                                        MPN: 12601371
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 029
                                                                                        MPN: 104030
                                                                                        SELF LOCKING NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 16104125
                                                                                        # 030
                                                                                        MPN: 13449921
                                                                                        STUD
                                                                                        from £0.74
                                                                                        from £0.74
                                                                                        # 031
                                                                                        MPN: 12601471
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 032
                                                                                        MPN: 12574511
                                                                                        SELF LOCKING NUT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 033
                                                                                        MPN: 13517421
                                                                                        STUD FOR BELT STRETCHER
                                                                                        from £53.42
                                                                                        from £53.42
                                                                                        This part replaces part number 13517420
                                                                                        # 034
                                                                                        MPN: 13550321
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 035
                                                                                        MPN: 104030
                                                                                        SELF LOCKING NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 16104125
                                                                                        # 036
                                                                                        MPN: 108043
                                                                                        EARTH CABLE
                                                                                        from £2.42
                                                                                        from £2.42
                                                                                        # 037
                                                                                        MPN: 12575621
                                                                                        SELFIOCKING NUT
                                                                                        from £1.43
                                                                                        from £1.43
                                                                                        # 038
                                                                                        MPN: 12575621
                                                                                        SELF LOCKING NUT
                                                                                        from £1.43
                                                                                        from £1.43
                                                                                        # 039
                                                                                        MPN: 107993
                                                                                        WASHER
                                                                                        from £10.90
                                                                                        from £10.90
                                                                                        # 040
                                                                                        MPN: 13526070
                                                                                        HELI - COIL
                                                                                        from £1.93
                                                                                        from £1.93
                                                                                        This part replaces part number 104657
                                                                                        # 041
                                                                                        MPN: 123514
                                                                                        BOLT
                                                                                        from £6.13
                                                                                        from £6.13
                                                                                        # 042
                                                                                        MPN: 127497
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                        # 043
                                                                                        MPN: 110381
                                                                                        CLAM
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number MC4325/4
                                                                                        # 044
                                                                                        MPN: 123722
                                                                                        EXHAUST UNION
                                                                                        from £92.82
                                                                                        from £92.82
                                                                                        # 045
                                                                                        MPN: 123721
                                                                                        INLET UNION
                                                                                        from £59.83
                                                                                        from £59.83
