ferrari 208 turbo (1989) water pump and pipings parts diagram

018 - Water Pump and Pipings

Ferrari 208 Turbo (1989) Water Pump and Pipings Parts Diagram

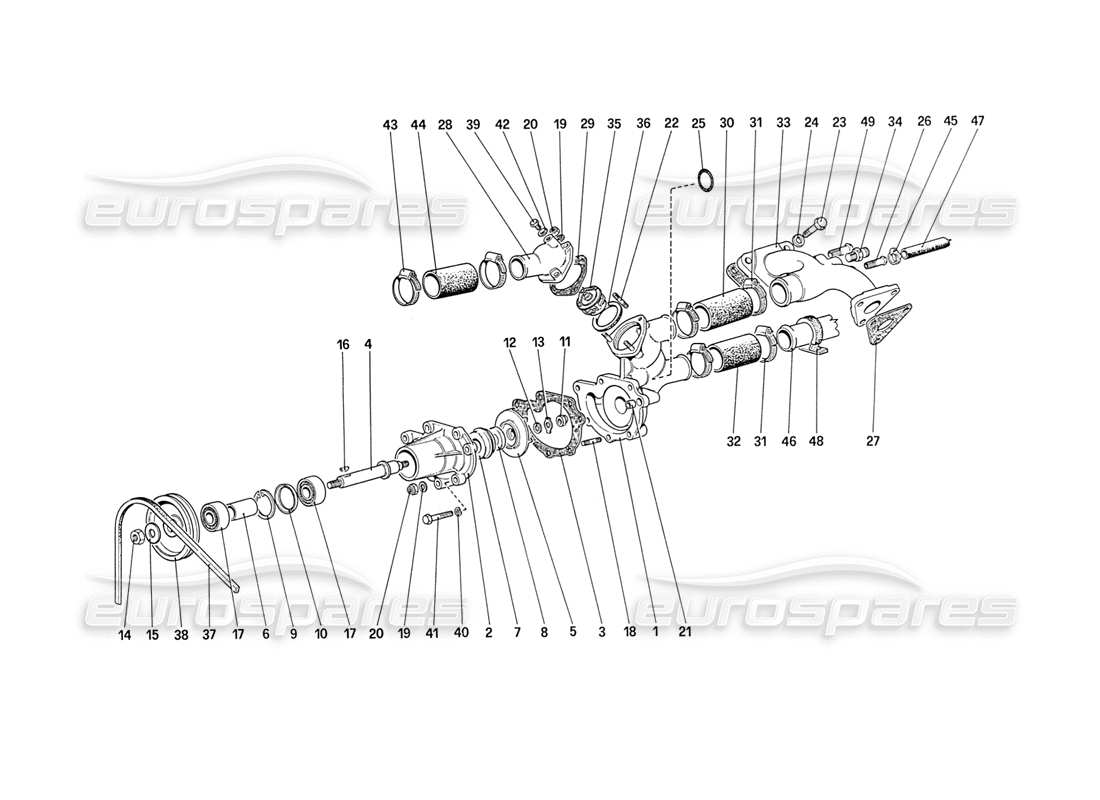

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price
                                                                                              # 001
                                                                                              MPN: 127280
                                                                                              WATER PUMP COMPLETE (FRONT)
                                                                                              from £790.38
                                                                                              from £790.38
                                                                                              # 001
                                                                                              MPN: 127281
                                                                                              WATER PUMP BODY
                                                                                              With assembly no. 127287
                                                                                              # 001
                                                                                              MPN: 127286
                                                                                              Water Pump Complete
                                                                                              from £1,388.41
                                                                                              from £1,388.41
                                                                                              # 001
                                                                                              MPN: 127287
                                                                                              WATER PUMP BODY, COMPLETE
                                                                                              from £867.86
                                                                                              from £867.86
                                                                                              # 002
                                                                                              MPN: 121252
                                                                                              PUMP COVER
                                                                                              use part number: 121255
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 116156 - and 1 more. Click to view details
                                                                                              # 003
                                                                                              MPN: 135121
                                                                                              WATER PUMP GASKET
                                                                                              from £3.72
                                                                                              from £3.72
                                                                                              This part replaces part number 103952 - and 1 more. Click to view details
                                                                                              # 004
                                                                                              MPN: 121253
                                                                                              SPINDLE FOR PULLEY
                                                                                              from £254.16
                                                                                              from £254.16
                                                                                              # 005
                                                                                              MPN: 125964
                                                                                              IMPELLER
                                                                                              from £239.83
                                                                                              from £239.83
                                                                                              # 006
                                                                                              MPN: 116157
                                                                                              SPACER
                                                                                              from £68.02
                                                                                              from £68.02
                                                                                              # 007
                                                                                              MPN: 100433
                                                                                              WATER PUMP SEAL
                                                                                              from £69.95
                                                                                              from £69.95
                                                                                              This part replaces part number 114410
                                                                                              # 008
                                                                                              MPN: 100433
                                                                                              WATER PUMP SEAL
                                                                                              from £69.95
                                                                                              from £69.95
                                                                                              This part replaces part number 114410
                                                                                              # 009
                                                                                              MPN: 11060076
                                                                                              SEEGER RING
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              # 010
                                                                                              MPN: 116158
                                                                                              WASHER
                                                                                              from £22.21
                                                                                              from £22.21
                                                                                              # 011
                                                                                              MPN: 100436
                                                                                              CAP NUT
                                                                                              from £7.64
                                                                                              from £7.64
                                                                                              This part replaces part number 92896
                                                                                              # 012
                                                                                              MPN: 10730321
                                                                                              WASHER
                                                                                              from £0.66
                                                                                              from £0.66
                                                                                              This part replaces part number 10730301 - and 2 more. Click to view details
                                                                                              # 013
                                                                                              MPN: 100434
                                                                                              PLATE
                                                                                              from £7.26
                                                                                              from £7.26
                                                                                              This part replaces part number 92361 - and 1 more. Click to view details
                                                                                              # 014
                                                                                              MPN: 16101521
                                                                                              NUT
                                                                                              from £0.57
                                                                                              from £0.57
                                                                                              This part replaces part number 16101520
                                                                                              # 015
                                                                                              MPN: 11198673
                                                                                              CONIC WASHER
                                                                                              from £0.87
                                                                                              from £0.87
                                                                                              This part replaces part number 11198671
                                                                                              # 016
                                                                                              MPN: 10205820
                                                                                              TONGUE
                                                                                              from £1.08
                                                                                              from £1.08
                                                                                              # 017
                                                                                              MPN: 116159
                                                                                              BEARING
                                                                                              from £21.01
                                                                                              from £21.01
                                                                                              # 018
                                                                                              MPN: 11500721
                                                                                              STUD
                                                                                              from £0.80
                                                                                              from £0.80
                                                                                              # 019
                                                                                              MPN: 12601271
                                                                                              CORRUGATED WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 103372 - and 1 more. Click to view details
                                                                                              # 020
                                                                                              MPN: 12574211
                                                                                              NUT
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 021
                                                                                              MPN: 102704
                                                                                              DOWEL
                                                                                              from £1.77
                                                                                              from £1.77
                                                                                              This part replaces part number 500805
                                                                                              # 022
                                                                                              MPN: 13541124
                                                                                              STUD
                                                                                              from £11.96
                                                                                              from £11.96
                                                                                              This part replaces part number 13541121
                                                                                              # 023
                                                                                              MPN: 16043921
                                                                                              SCREW
                                                                                              from £1.39
                                                                                              from £1.39
                                                                                              # 024
                                                                                              MPN: 12601371
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 025
                                                                                              MPN: 105196
                                                                                              SEALING RING
                                                                                              from £2.88
                                                                                              from £2.88
                                                                                              # 026
                                                                                              MPN: 127563
                                                                                              UNION
                                                                                              from £8.67
                                                                                              from £8.67
                                                                                              # 027
                                                                                              MPN: 147800
                                                                                              GASKET
                                                                                              from £15.90
                                                                                              from £15.90
                                                                                              This part replaces part number 127552
                                                                                              # 028
                                                                                              MPN: 105165
                                                                                              WATER OUTLET UNION
                                                                                              from £141.04
                                                                                              from £141.04
                                                                                              # 029
                                                                                              MPN: 105189
                                                                                              GASKET
                                                                                              from £2.46
                                                                                              from £2.46
                                                                                              This part replaces part number 4206607
                                                                                              # 030
                                                                                              MPN: 121258
                                                                                              SLEEVE
                                                                                              from £19.23
                                                                                              from £19.23
                                                                                              This part replaces part number 10147087 - and 4 more. Click to view details
                                                                                              # 031
                                                                                              MPN: 296782
                                                                                              CLAMP
                                                                                              from £4.87
                                                                                              from £4.87
                                                                                              This part replaces part number 12174090
                                                                                              # 032
                                                                                              MPN: 121258
                                                                                              SLEEVE
                                                                                              from £19.23
                                                                                              from £19.23
                                                                                              This part replaces part number 10147087 - and 4 more. Click to view details
                                                                                              # 033
                                                                                              MPN: 127551
                                                                                              WATER MANIFOLD
                                                                                              With assembly no. 127555
                                                                                              # 033
                                                                                              MPN: 127555
                                                                                              WATER MANIFOLD COMPLETE
                                                                                              from £483.08
                                                                                              from £483.08
                                                                                              # 034
                                                                                              MPN: 104628
                                                                                              TEMPERATURE SENDER UNIT
                                                                                              from £31.92
                                                                                              from £31.92
                                                                                              This part replaces part number 4108672 - and 3 more. Click to view details
                                                                                              # 035
                                                                                              MPN: 128991

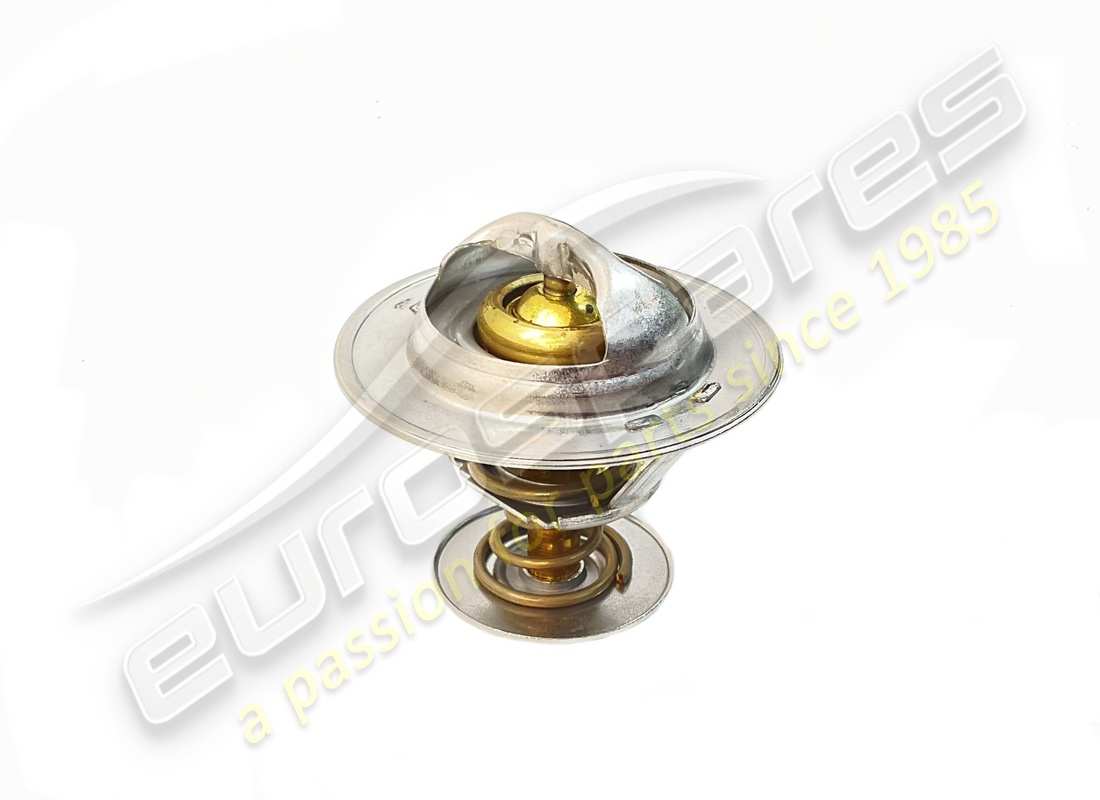

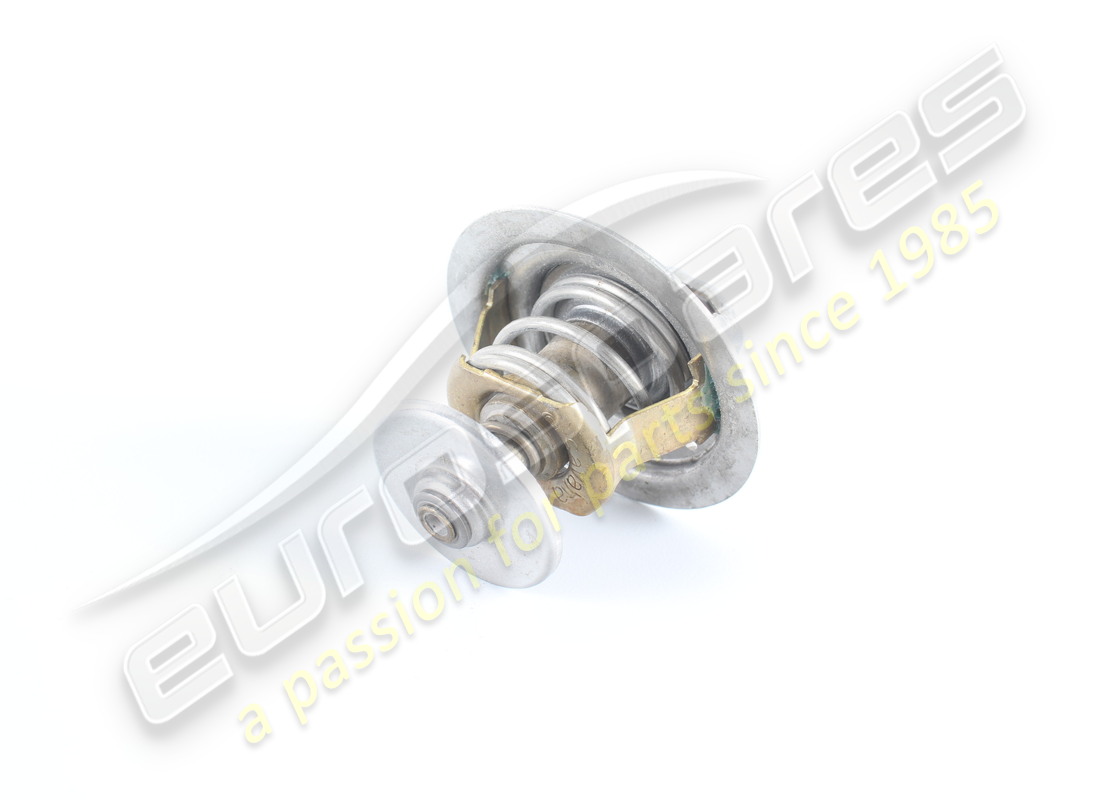

                                                                                              THERMOSTAT
                                                                                              from £125.00
                                                                                              from £125.00
                                                                                              # 036
                                                                                              MPN: 105192
                                                                                              GASKET
                                                                                              from £11.50
                                                                                              from £11.50
                                                                                              This part replaces part number 4184495
                                                                                              # 037
                                                                                              MPN: 125557

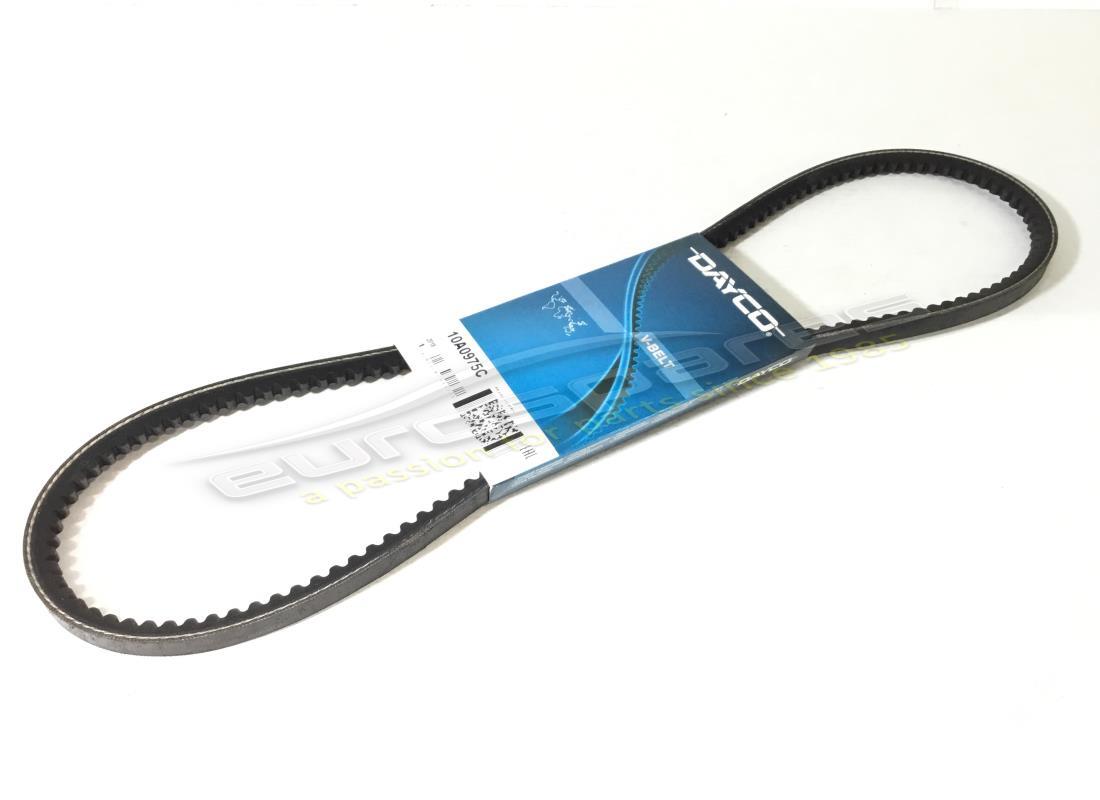

                                                                                              CONTROL BELT FOR WATER PUMP AND ALTERNATOR
                                                                                              from £15.80
                                                                                              from £15.80
                                                                                              # 038
                                                                                              MPN: 129328
                                                                                              PULLEY
                                                                                              from £91.01
                                                                                              from £91.01
                                                                                              # 039
                                                                                              MPN: 16042940
                                                                                              SCREW
                                                                                              from £8.89
                                                                                              from £8.89
                                                                                              # 040
                                                                                              MPN: 12601371
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 041
                                                                                              MPN: 16044421
                                                                                              SCREW
                                                                                              from £1.31
                                                                                              from £1.31
                                                                                              # 042
                                                                                              MPN: 10260060
                                                                                              GASKET
                                                                                              from £0.79
                                                                                              from £0.79
                                                                                              # 043
                                                                                              MPN: 296782
                                                                                              CLAMP
                                                                                              from £4.87
                                                                                              from £4.87
                                                                                              This part replaces part number 12174090
                                                                                              # 044
                                                                                              MPN: 121258
                                                                                              SLEEVE
                                                                                              from £19.23
                                                                                              from £19.23
                                                                                              This part replaces part number 10147087 - and 4 more. Click to view details
                                                                                              # 045
                                                                                              MPN: 13000190
                                                                                              CLAMP
                                                                                              from £0.53
                                                                                              from £0.53
                                                                                              This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                              # 046
                                                                                              MPN: 127300
                                                                                              PIPE
                                                                                              from £37.59
                                                                                              from £37.59
                                                                                              # 047
                                                                                              MPN: 122218

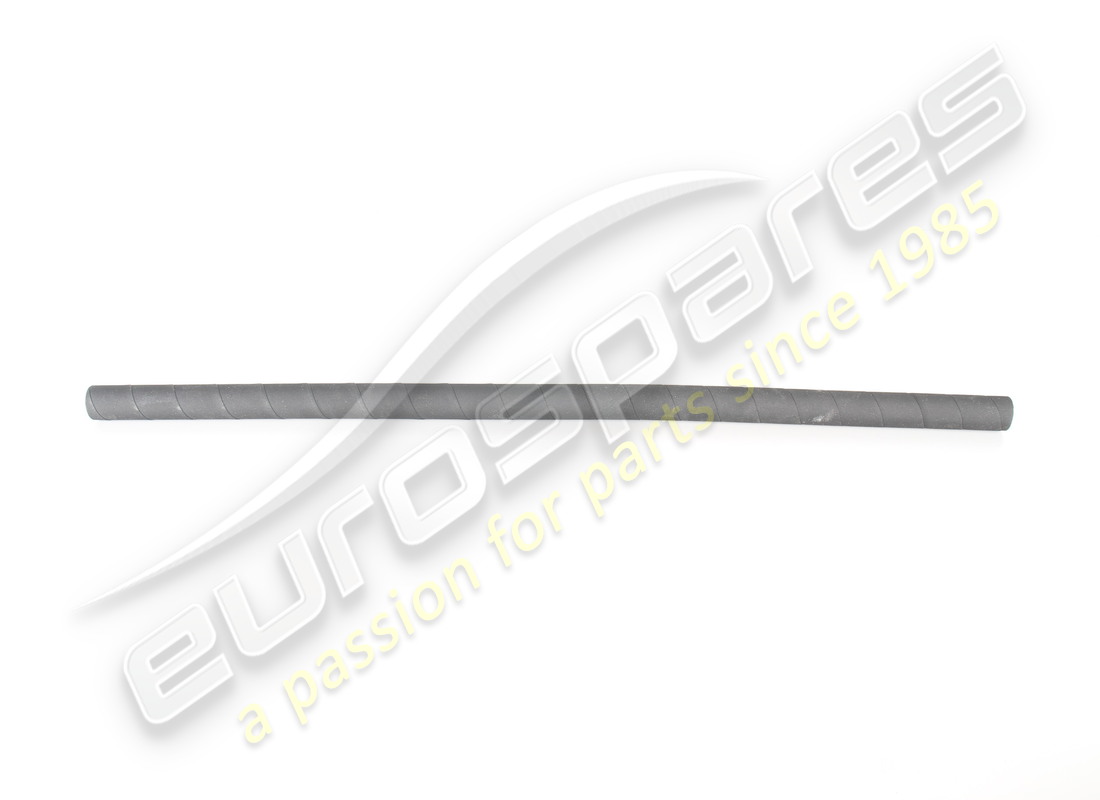

                                                                                              BREATHER PIPE
                                                                                              from £24.97
                                                                                              from £24.97
                                                                                              This part replaces part number 103471 - and 1 more. Click to view details
                                                                                              # 048
                                                                                              MPN: 107002
                                                                                              CLAMP FOR PIPE
                                                                                              from £7.56
                                                                                              from £7.56
                                                                                              # 049
                                                                                              MPN: 127556
                                                                                              UNION
                                                                                              from £9.19
                                                                                              from £9.19
