045 - Brake Hydraulic System (Variants for RHD Versions)

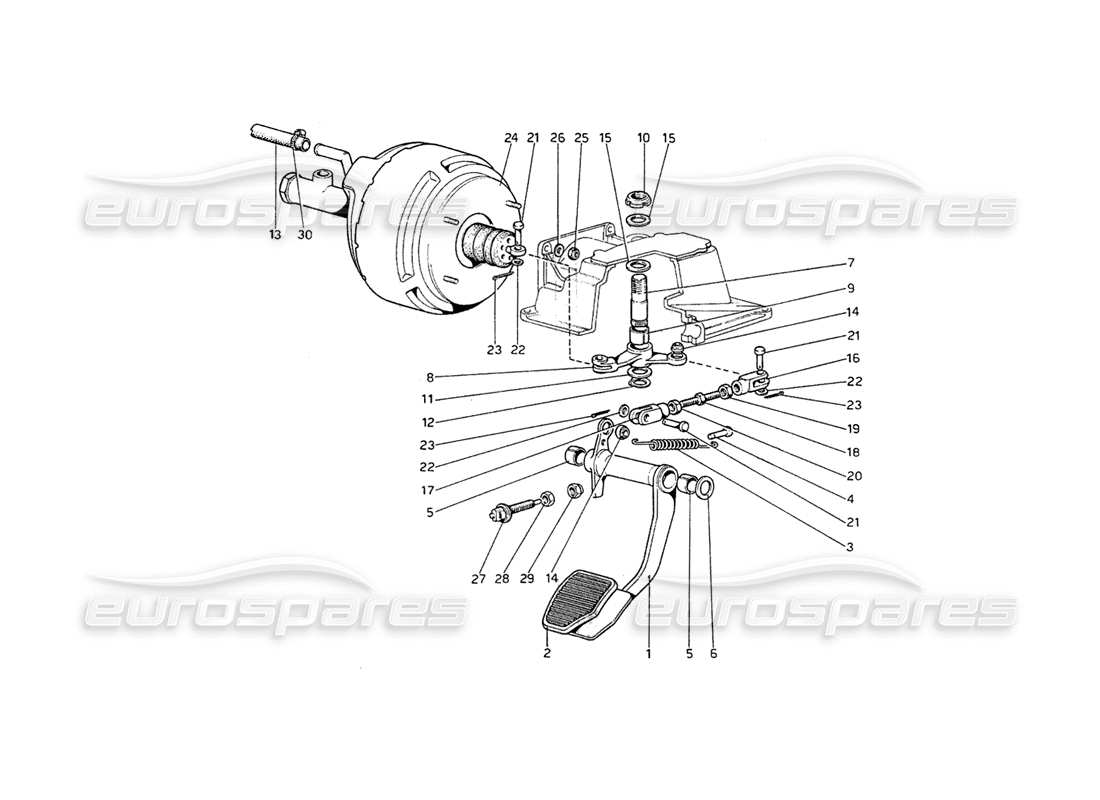

Ferrari 208 GT4 Dino (1975) Brake Hydraulic System (Variants for RHD Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 108546
PEDALE FRENO
Filetto destro
from £315.29
from £315.29
# 002
MPN: 106950
GOMMINO PROTEZIONE PEDALE
Filetto destro
from £11.68
from £11.68
# 003
MPN: 104895
SPRING
Filetto destro
from £2.94
from £2.94
# 004
MPN: 104896
PIVOT
Filetto destro
from £15.22
from £15.22
# 005
MPN: 103163
BUSH
Filetto destro
from £2.83
from £2.83
# 006
MPN: 106083
WASHER
Filetto destro
from £0.71
from £0.71
# 007
MPN: 106081
PIVOT
Filetto destro
from £24.37
from £24.37
This part replaces part number 104906 - and 3 more. Click to view details
# 008
MPN: 108313
LEVER
Filetto destro
from £34.69
from £34.69
This part replaces part number 107205 - and 5 more. Click to view details
# 009
MPN: 100787
BUSH
Filetto destro
from £5.48
from £5.48
This part replaces part number 101315 - and 1 more. Click to view details
# 010
MPN: 106082
RING NUT
Filetto destro
Supersession
Supersession
# 011
MPN: 104909
SPACER
Filetto destro
from £5.99
from £5.99
# 012
MPN: 11066875
SEEGER RING
Filetto destro
Supersession
Supersession
# 013
MPN: 107408
TUBO DAL SERVOFRENO ALIA VALVOLA DI NON RITORNO
Filetto destro
Supersession
Supersession
# 014
MPN: 100424
SNODO SFERICO
Filetto destro
from £41.51
from £41.51
# 015
MPN: 106084
WASHER
Filetto destro
from £5.61
from £5.61
# 016
MPN: 104910
FORK
Filetto sinistro
from £4.22
from £4.22
# 017
MPN: 104911
FORK
Filetto destro
from £10.33
from £10.33
# 018
MPN: 104912
SCREW
Filetto destro
from £9.79
from £9.79
# 019
MPN: 103157
NUT
Filetto sinistro
from £1.05
from £1.05
# 020
MPN: 103160
NUT
Filetto destro
from £1.16
from £1.16
# 021
MPN: 10033411
PIVOT
Filetto destro
from £42.00
from £42.00
This part replaces part number 10033441 - and 3 more. Click to view details
# 022
MPN: 103167
WASHER
Filetto destro
from £1.92
from £1.92
# 023
MPN: 10796301
SPLIT PIN
Filetto destro
from £0.71
from £0.71
# 024
MPN: 106362
Brake Servo
Filetto destro
Supersession
Supersession
# 025
MPN: 16104411
NUT
Filetto destro
from £0.53
from £0.53
# 026
MPN: 12601371
WASHER
Filetto destro
Supersession
Supersession
# 027
MPN: 101663
STOP LIGHT SWITCH (2 TERMINALS)
from £23.05
from £23.05
This part replaces part number 4177124 - and 13 more. Click to view details
# 028
MPN: 10791211
NUT
Filetto destro
from £0.47
from £0.47
This part replaces part number 10791215 - and 1 more. Click to view details
# 029
MPN: 101662
NUT
Filetto destro
from £2.53
from £2.53
This part replaces part number 660523
# 030
MPN: 13000390
JUBILEE CLIP
Filetto destro
from £0.53
from £0.53
This part replaces part number 12179590 - and 1 more. Click to view details
