008 - ENGINE COVER

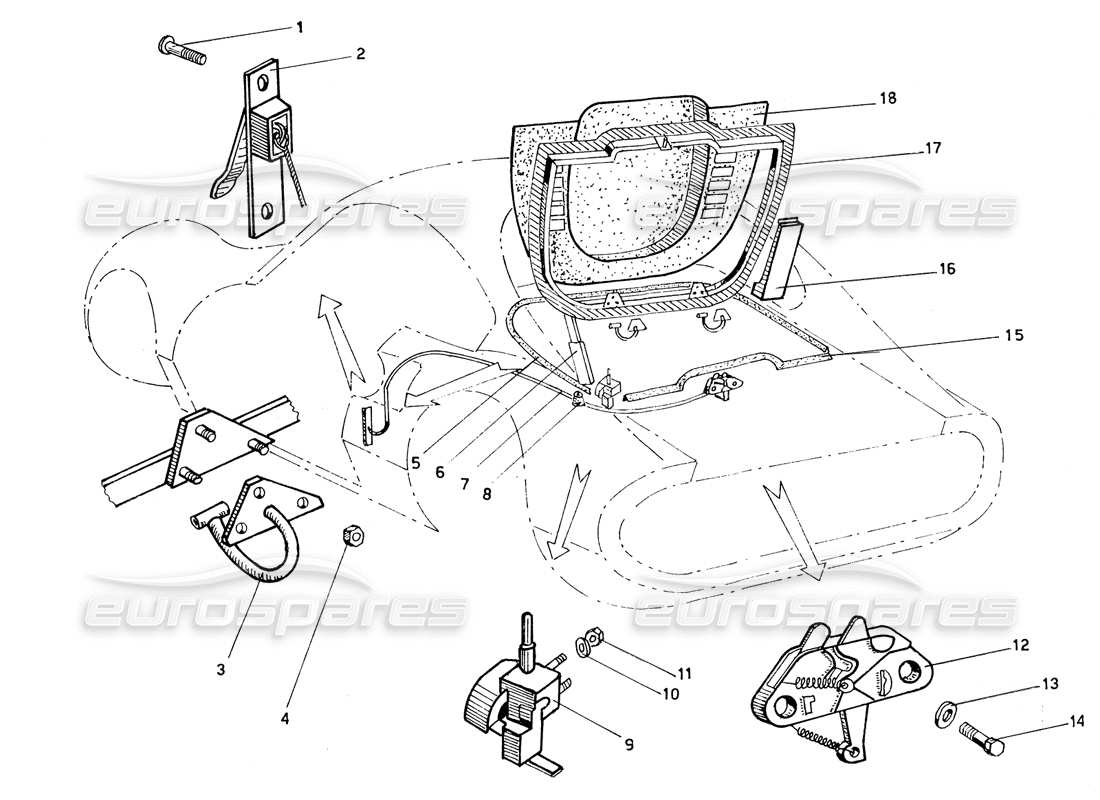

Ferrari 206 GT Dino (Coachwork) Engine Cover Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 20-24-01
SCREW
# 002
MPN: 30195903
MANIGLIA APRICOFANO
from £485.45
from £485.45
This part replaces part number 253-34-330-02
# 003
MPN: 20-24-03
BRACCIO CERNIERA
# 004
MPN: 20-24-04
NUT
# 005
MPN: 20-24-05
PERIMETER PARAGRAPH
# 006
MPN: 20021903
BONNET RAISING ROD
from £93.32
from £93.32
This part replaces part number 20-22-18 - and 5 more. Click to view details
# 007
MPN: 20-24-07
CAVO COROANDO APERTURA COFANO
# 008
MPN: 20047106
TASSELLO BATTUTA SPORTELLO BAULE
(16305181)
from £13.65
from £13.65
This part replaces part number 20-22-19 - and 2 more. Click to view details
# 009
MPN: 20-24-09
PLAFONIERA ILLUMINAZIONE VANO MOTORA
# 010
MPN: 20-24-10
HONDELLA PLAFONIERA
# 011
MPN: 20-24-11
CEILING LIGHT FIXING NUTS
# 012
MPN: 20-24-12
SERRATURA
Supersession
Supersession
# 013
MPN: 20-24-13
WASHER
# 014
MPN: 20-24-14
PIVOT
# 015
MPN: 20-24-15
GUARNIAIONE RIPARO ACQUA
# 016
MPN: 20-24-16
DRIP TRAY D.
# 016
MPN: 20-24-17
S. DRIPPER
# 017
MPN: 20-24-18
ENGINE BONNET FRAME
# 018
MPN: 20-24-19
RIVESTIMENTO COFANO MOTORE
from £1,075.05
from £1,075.05
