ferrari 206 gt dino (coachwork) front bonnet parts diagram

007 - FRONT BONNET

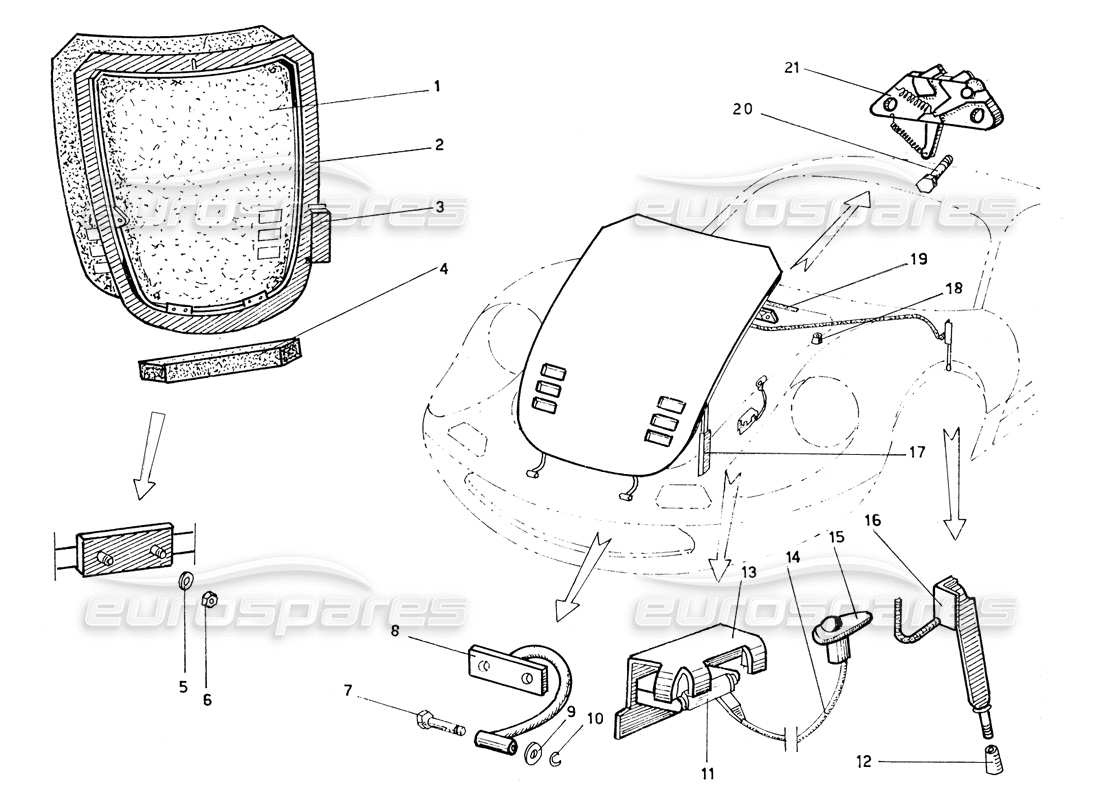

Ferrari 206 GT Dino (Coachwork) Front Bonnet Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 20-22-01
                                          RIVES TIMENTO COFANO ANTERIORE
                                          # 002
                                          MPN: 20-22-02
                                          FRONT BONNET FRAME
                                          from £4,199.49
                                          from £4,199.49
                                          # 003
                                          MPN: 20-22-03
                                          DRIP TRAY D.
                                          # 003
                                          MPN: 20-22-04
                                          S. DRIPPER
                                          from £84.97
                                          from £84.97
                                          # 004
                                          MPN: 20-22-05
                                          RADIATOR INSULATION
                                          # 005
                                          MPN: 20-22-06
                                          WASHER
                                          # 006
                                          MPN: 20-22-07
                                          NUT
                                          # 008
                                          MPN: 20-22-09
                                          BRACCIO CERNIERA
                                          from £1,334.80
                                          from £1,334.80
                                          # 009
                                          MPN: 20-22-10
                                          RIONDELLA PER PERNO CERNIARA
                                          # 010
                                          MPN: 20-22-11
                                          SEEGER RING
                                          # 011
                                          MPN: 20-22-12
                                          LAMP
                                          # 012
                                          MPN: 20-22-13
                                          POMELLO PER LEVA APRICOFANO
                                          # 013
                                          MPN: 20-22-14
                                          CORAPLESSIVO PLAFONIERA
                                          # 014
                                          MPN: 20-22-15
                                          SWITCH AND CEILING LIGHT CONNECTION CABLE
                                          # 015
                                          MPN: 20-22-16
                                          INTERRUTTORE
                                          # 017
                                          MPN: 20021903

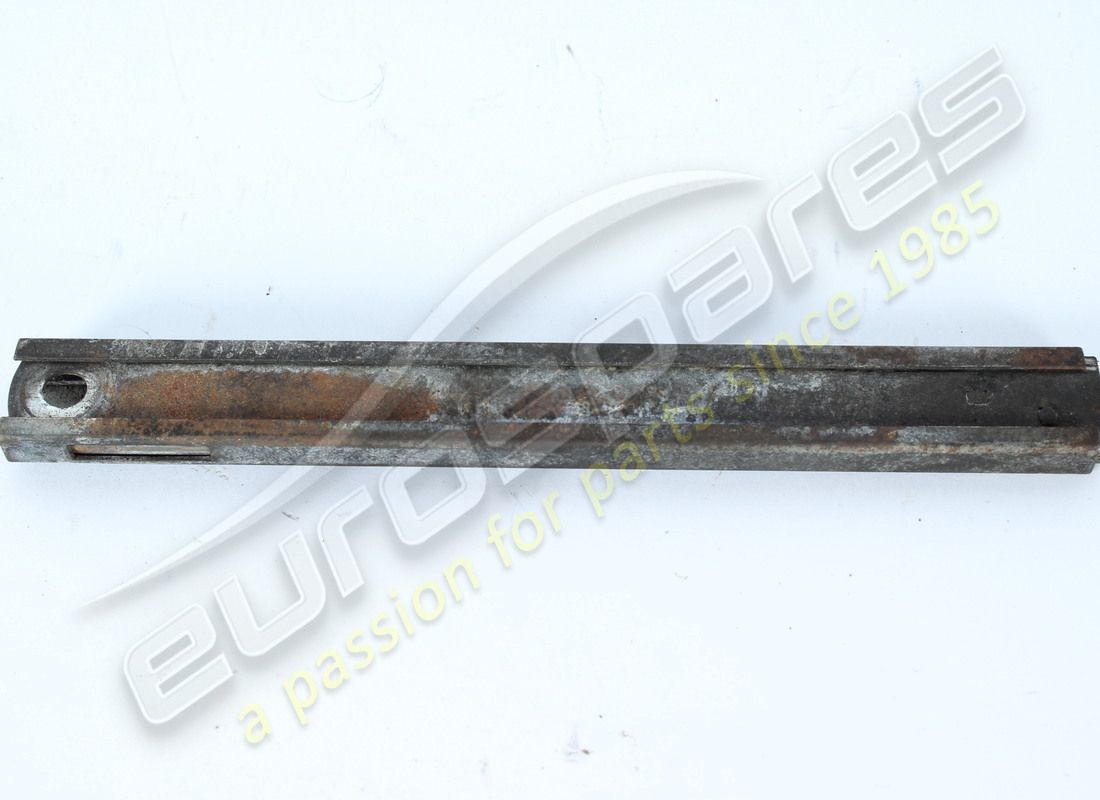

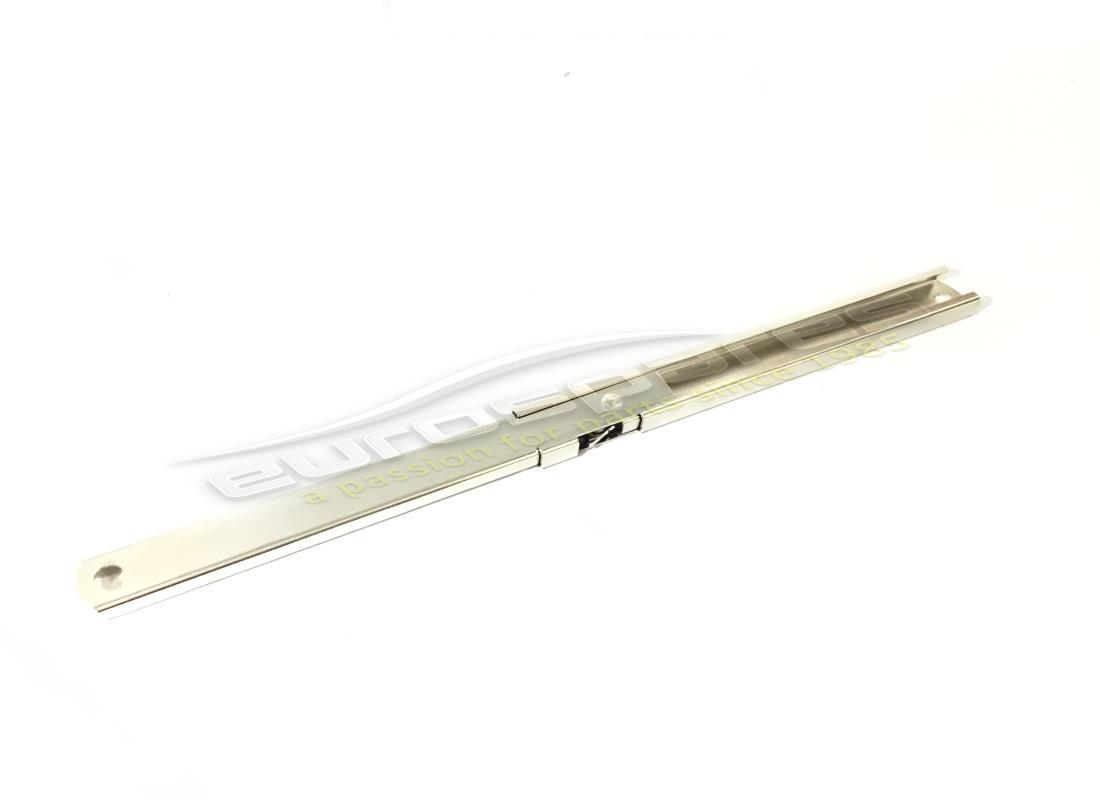

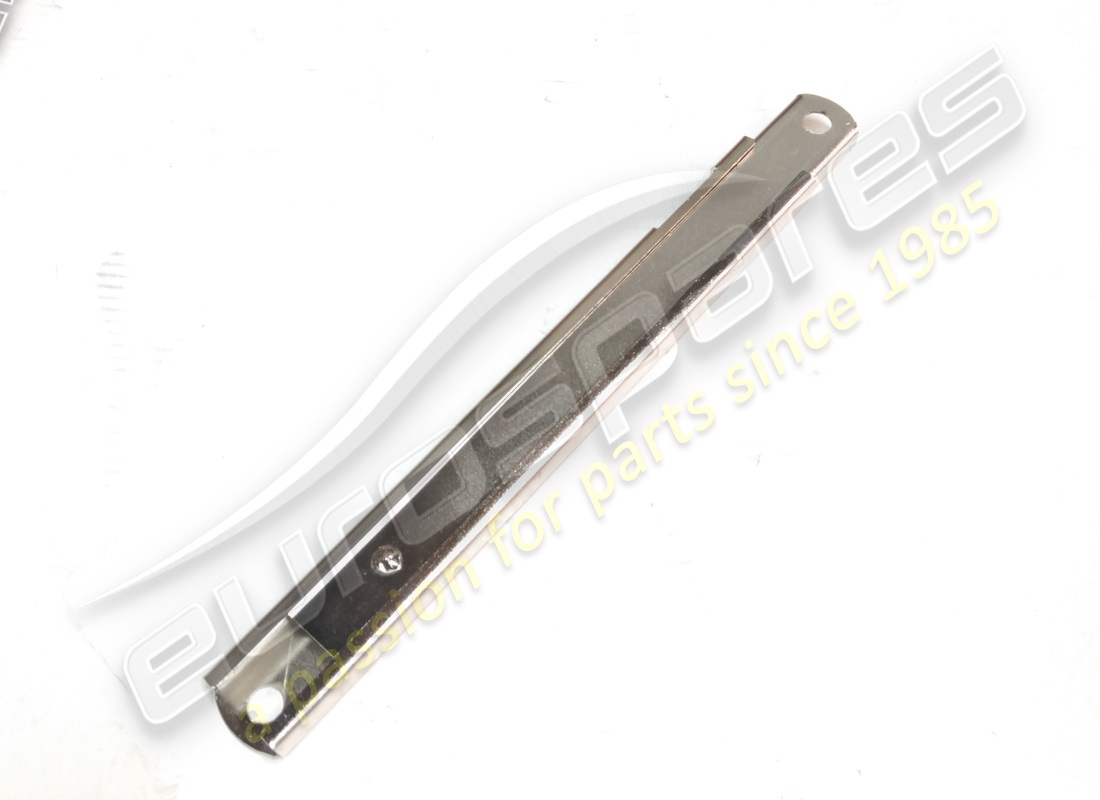

                                          BONNET RAISING ROD
                                          from £94.02
                                          from £94.02
                                          This part replaces part number 20-22-18 - and 5 more. Click to view details
                                          # 018
                                          MPN: 20047106
                                          TASSELLO BATTUTA SPORTELLO BAULE
                                          (16305181)
                                          from £13.65
                                          from £13.65
                                          This part replaces part number 20-22-19 - and 2 more. Click to view details
                                          # 019
                                          MPN: 20-22-20
                                          DRIPPER PERIMETER JOINT COVER
                                          # 020
                                          MPN: 20-22-21
                                          PIVOT
                                          # 021
                                          MPN: 20-22-22
                                          SERRATURA
                                          Supersession
                                          Supersession
