039 - Tool - Kit

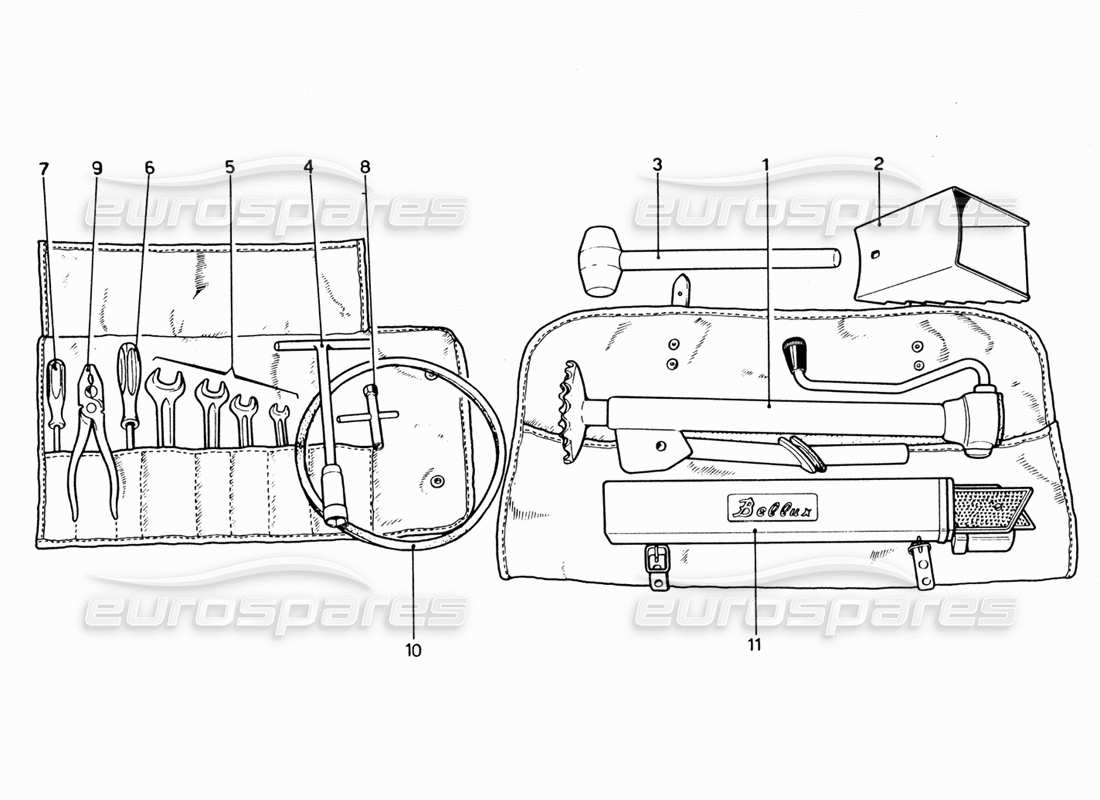

Ferrari 206 GT Dino (1969) Tool - Kit Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 95990010/206
HANDBOOK
from £85.62
from £85.62
# 001
MPN: 840019
MARTINETTO SOLLEVAMENTO VETTURA
Supersession
Supersession
# 002
-
CUNEO
# 003
-
MARTELLO DI PIOMBO (GR. 1000)
# 004
MPN: USAG
SPARK PLUG KEY .
Tipo
# 005
-
SERIE CHIAVI 8/10 - 12/14 -13/17 - 19/22
# 006
-
CACCIAVITE AMERICANO (LUNG. 120 MM)
# 007
-
PHILIPS SCREWDRIVER FOR 5 AND 9 SCREWS
# 008
MPN: 84114
CARBURETTOR KEYS
Supersession
Supersession
# 009
-
PINZA UNIVERSALE
# 010
MPN: PREMIUM - 4150202 7L
CINGHIA COMANDO ALTERNATORE
PIRELLI - 2010
# 011
-
TRIANGOLO DI SEGNALAZIONE
