ferrari 206 gt dino (1969) wheels - brake disc and rear hub parts diagram

036 - Wheels - Brake Disc and Rear Hub

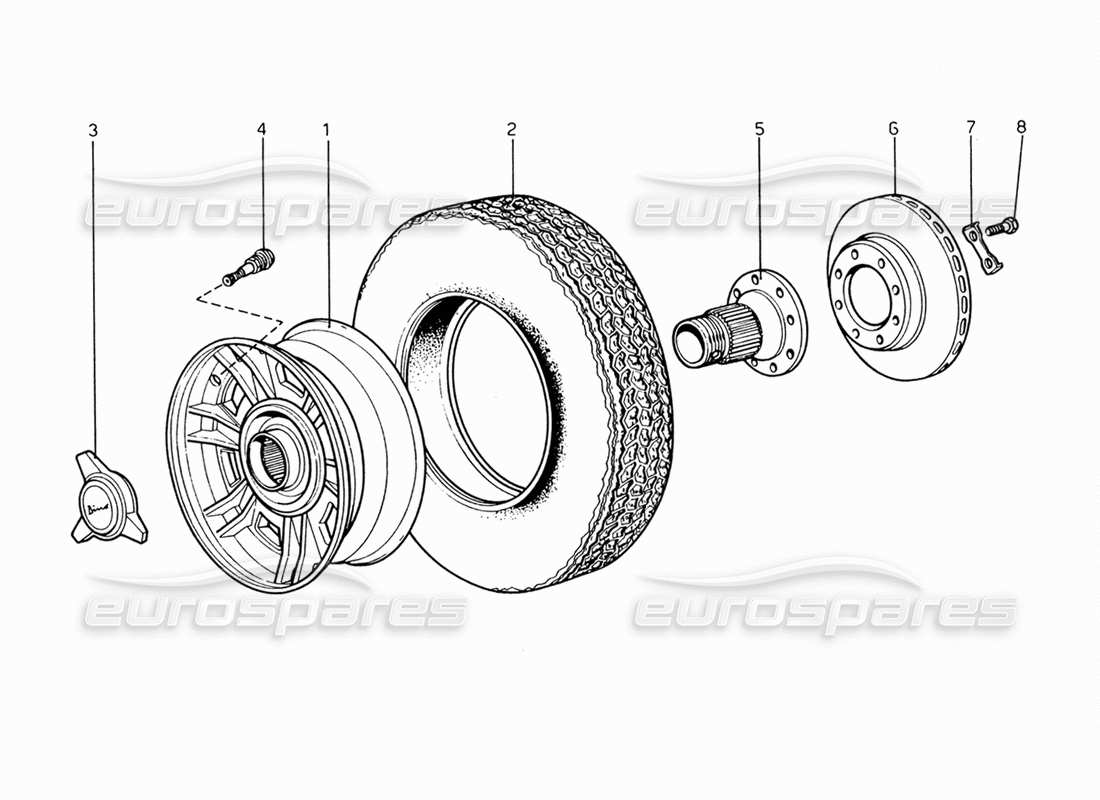

Ferrari 206 GT Dino (1969) Wheels - Brake Disc and Rear Hub Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 000
            MPN: 700385/A

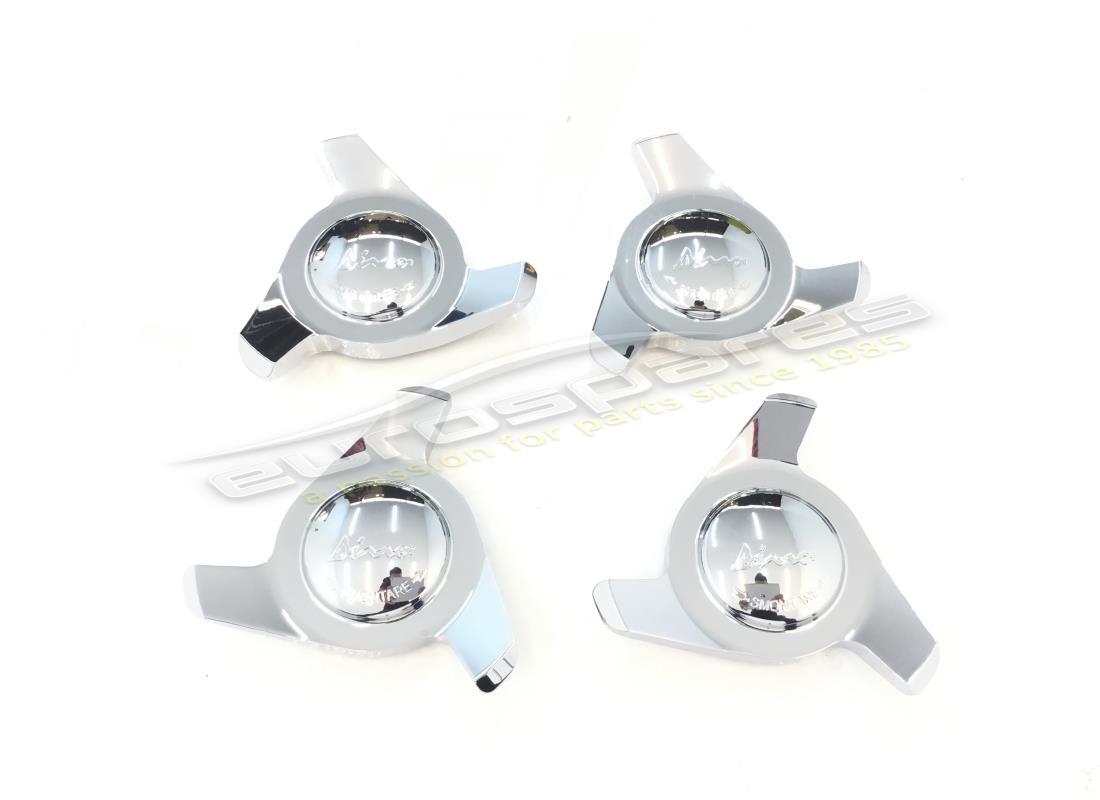

            Ferrari Dino Wheel Nut Set
            from £1,569.75
            from £1,569.75
            DINO WHEEL NUT SET Genuine Ferrari Part - New (to order)
            DINO WHEEL NUT SET Genuine Ferrari Part - New (other) In stock
            L-SERIES
            # 001
            MPN: 700445
            FRONT REAR AND SPARE WHEEL (14X6'/Z)
            WHEEL 61/2X14 246NOT LATE Genuine Ferrari Part - New (to order)
            # 002
            MPN: 185 VR 14 X
            COPERTURA
            MICHELIN
            COPERTURA Genuine Ferrari Part - New (to order)
            # 003
            MPN: 700385
            RIGHT RING FOR WHEEL LOCKING
            from £2.06
            from £2.06
            CLIP/TIE, HOOD RELEASE CABLE TO PAS HOSE (700385) Genuine Aston Martin - New (to order)
            RH DINO SPINNER Genuine Ferrari Part - New (to order)
            # 003
            MPN: 700386

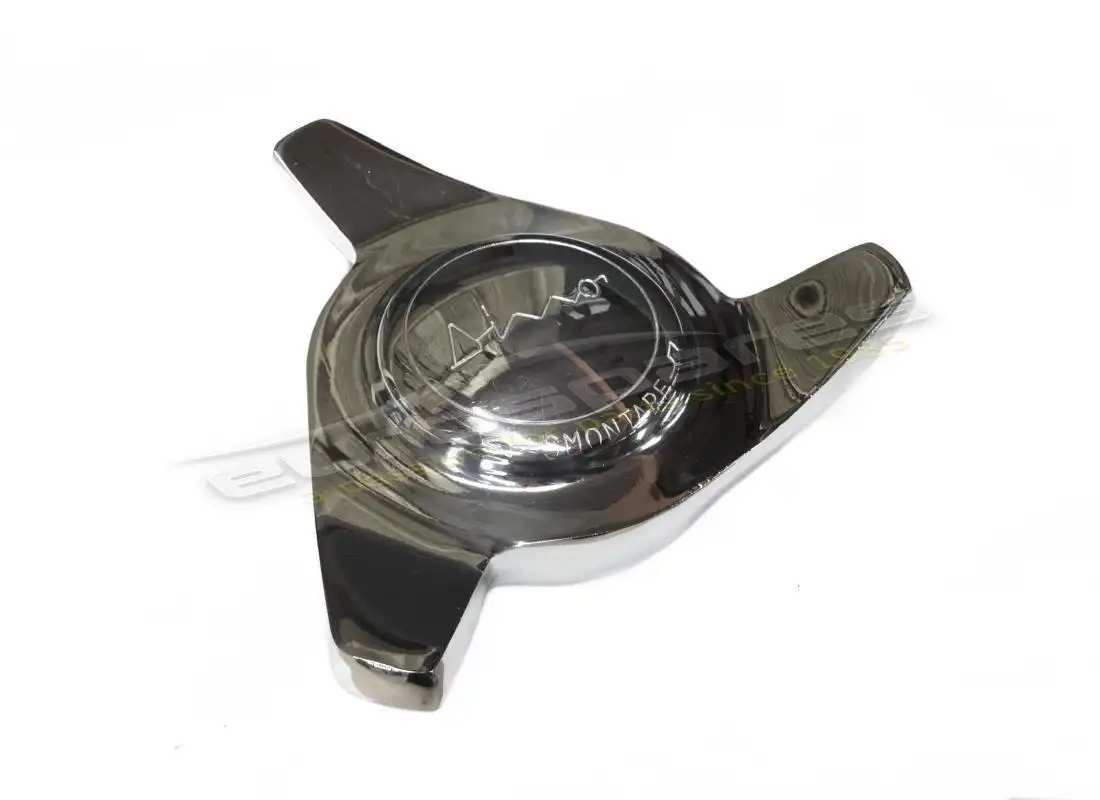

            LEFT RING FOR WHEEL LOCKING
            from £1,044.75
            from £1,044.75
            LH DINO SPINNER Genuine Ferrari Part - New In stock
            # 004
            MPN: Brass. 3001
            VALVALA PER COPERTURE TUBELESS
            Brigeport Catalogo
            VALVOLA TUBELESS Genuine Ferrari Part - New (to order)
            # 005
            MPN: 700480
            MOZZO SINISTRO PER ROUTA POSTERIORE
            from £712.35
            from £712.35
            This part replaces part number 4149521
            RH REAR HUB Genuine Ferrari Part - New (to order)
            # 005
            MPN: 700481
            MOZZO SINISTRO PER ROUTA POSTERIORE
            from £712.35
            from £712.35
            This part replaces part number 4149522
            SEALANT SIKAFLEX 221 UNIPAK, 400ML (700481) Genuine Aston Martin - New (to order)
            LH REAR HUB Genuine Ferrari Part - New (to order)
            # 006
            MPN: 680740
            DISCO PER FRENI ROUTE POSTERIORI
            from £751.88
            from £751.88
            This part replaces part number 4162562
            REAR BRAKE DISC OE Genuine Ferrari Part - New (to order)
            # 007
            MPN: 4149837
            PLATE
            FIAT
            from £1.65
            from £1.65
            LOCK TAB Genuine Ferrari Part - New (to order)
            # 008
            MPN: 4149836
            BOLT
            FIAT
            from £1.24
            from £1.24
            BOLT Genuine Ferrari Part - New (to order)
