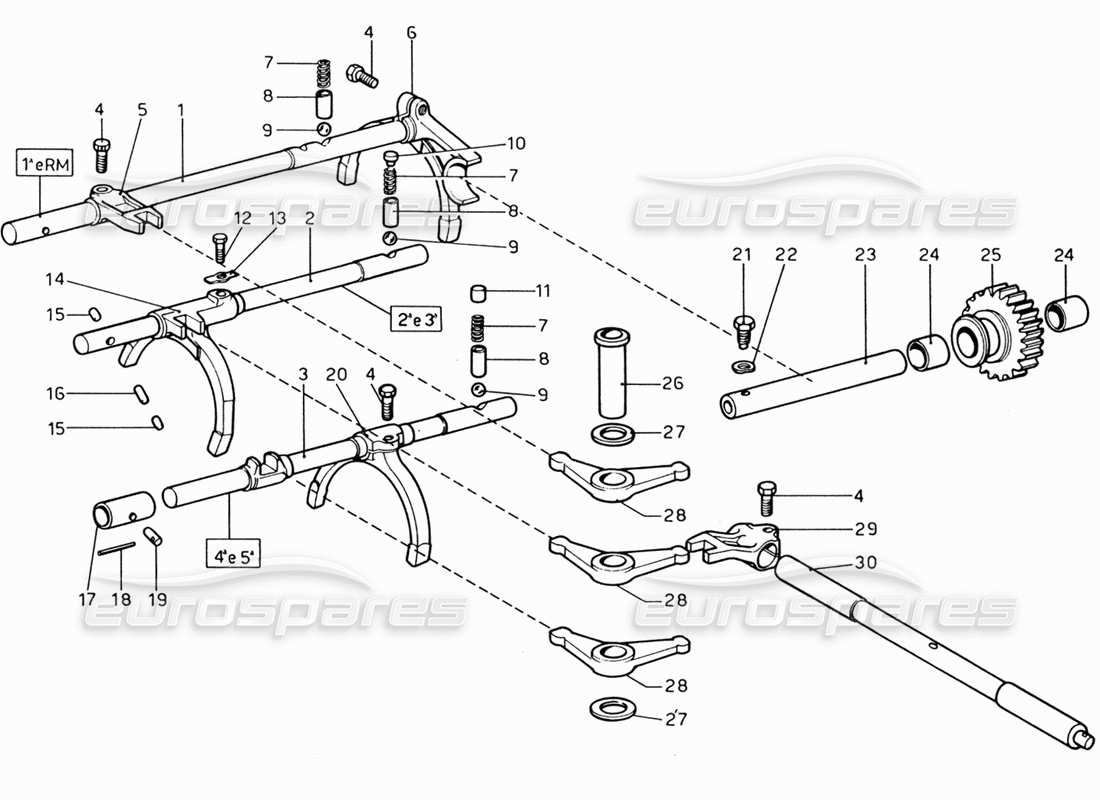

024 - Inside Gear Box Controls
Ferrari 206 GT Dino (1969) Inside Gear Box Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 522474
ASTA COMANDO 1 E R.M.
from £75.31
from £75.31
# 002
MPN: 522442
ASTA COMANDO 2 E 3 VELICOTA
from £167.34
from £167.34
# 003
MPN: 522475
ASTA COMANDO 4 E 5 VELOCITA
from £137.27
from £137.27
# 004
MPN: 95180
BOLT
from £4.94
from £4.94
# 005
MPN: 522467
CONTROL AND REVERSE STICK
from £95.67
from £95.67

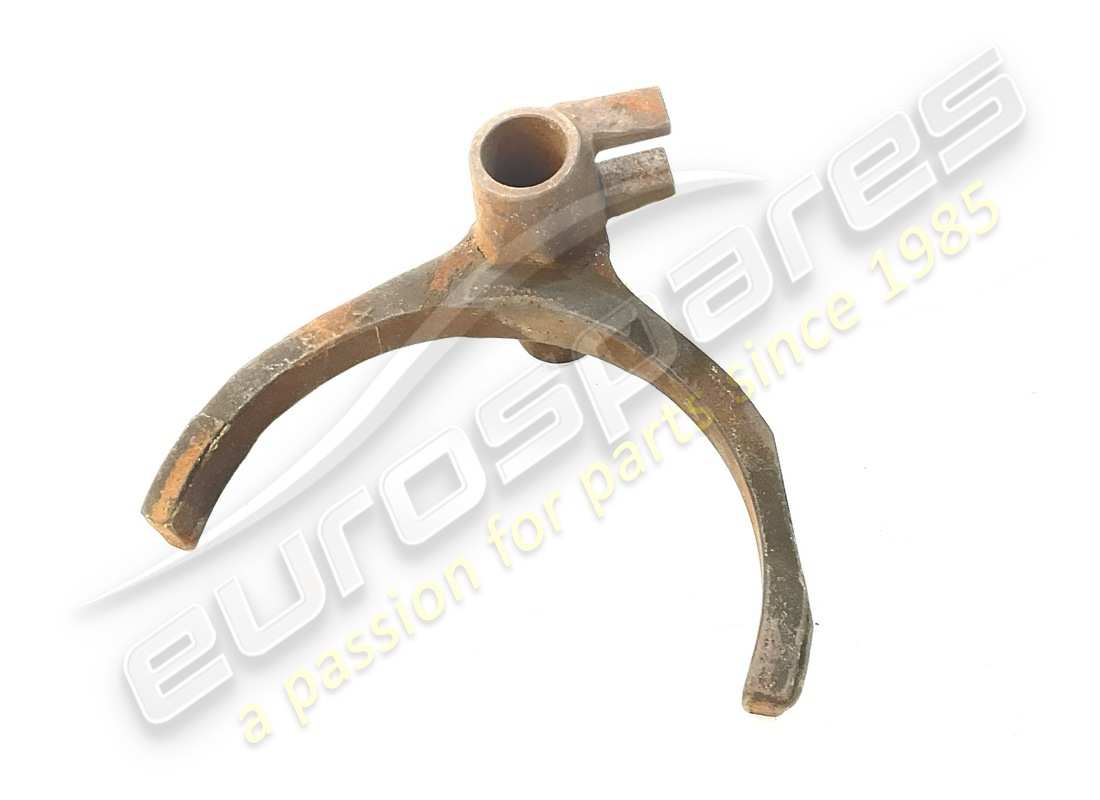

# 006
MPN: 522461
FORK 1ª AND REVERSE
from £155.30
from £155.30
# 007
MPN: 53684
MOL LA
508 B
from £33.45
from £33.45

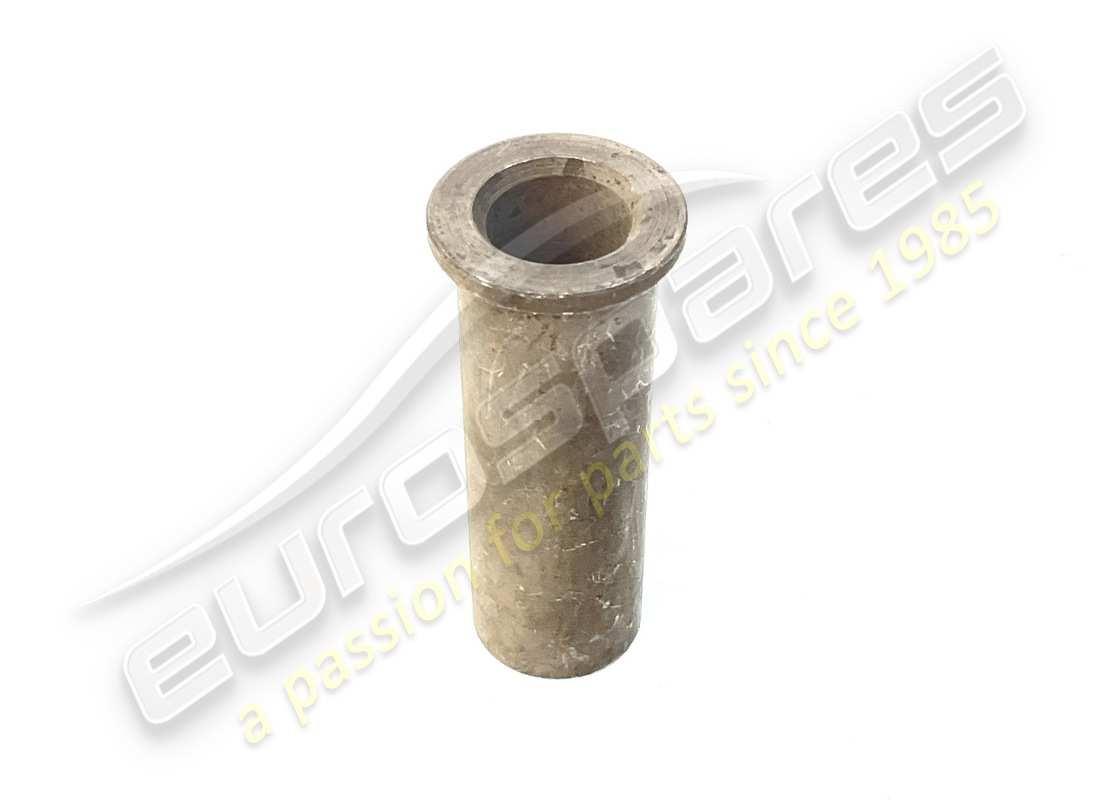

# 008
MPN: 100749
BUSH
from £52.78
from £52.78
# 009
MPN: 90. 142. 010
SFERA (F 5/16)
RIV
# 010
MPN: 522488
SPACER
from £18.69
from £18.69
# 011
MPN: 522489
SPACER
from £23.88
from £23.88
# 012
MPN: 92763
BOLT
# 013
MPN: 103587
PLATE
from £5.85
from £5.85
This part replaces part number 92692 - and 1 more. Click to view details
# 014
MPN: 523192
SELECTOR FORK 2 AND 3 SPEED
from £325.21
from £325.21
# 015
MPN: 522487
EXTERNAL ROD STOP ROLLER
from £5.24
from £5.24
# 016
MPN: 522486
RULLINO ARRESTO ASTA CENTRALE
from £5.61
from £5.61
# 017
MPN: 522436
CENTERING DOWEL
from £22.42
from £22.42
# 018
MPN: S 2,5x30
PIN
CONNEX
# 019
MPN: 522662
PIVOT
from £3.30
from £3.30
# 020
MPN: 523193
SELECTOR FORK 4 AND 5 SPEED
from £439.51
from £439.51
# 021
MPN: 520709
BOLT
Supersession
Supersession
# 022
MPN: REO - 8
WASHER
OEB
Supersession
Supersession
# 023
MPN: 522440
PIVOT
from £120.33
from £120.33
# 024
MPN: 1815M-MB7815
BUSH
TRIONE
# 025
MPN: 522448
REVERSE IDLER GEAR
from £169.59
from £169.59
# 026
MPN: 522466
PIVOT
from £29.67
from £29.67
# 027
MPN: 522518
SPACER
from £12.53
from £12.53
# 028
MPN: 522465
INTERNAL ROCKER FOR GEARBOX CONTROL
from £82.17
from £82.17
# 029
MPN: 522468
SHIFT ROD CONTROL LEVER
from £105.06
from £105.06
# 030
MPN: 522498
SHAFT FOR INTERNAL GEAR CONTROL LEVER
from £127.44
from £127.44
