023 - Outside Gear Box Controls

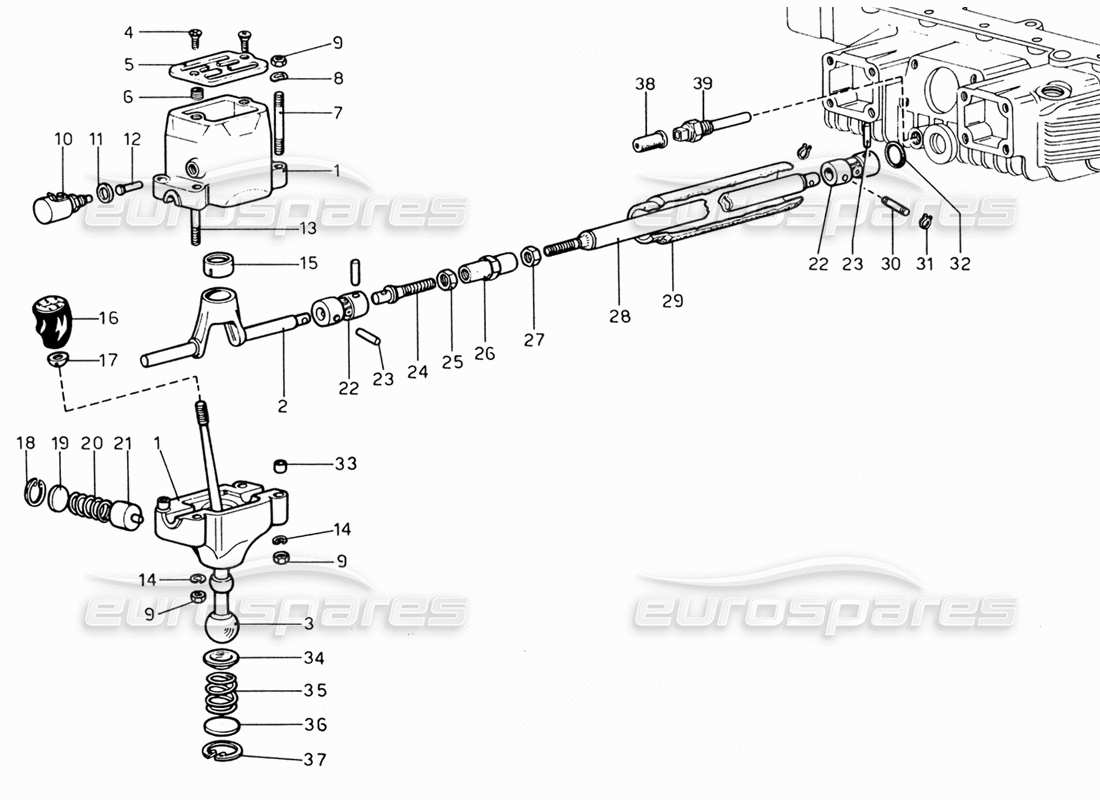

Ferrari 206 GT Dino (1969) Outside Gear Box Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 522444
                                                      ASSIEME SCATOLA COMANDO CAMBIO (SCAT. INF. E SUP.)
                                                      # 001
                                                      MPN: 522445
                                                      ASSIEME SCATOLA COMANDO CAMBIO (SCAT. INF. E SUP.)
                                                      from £1,464.75
                                                      from £1,464.75
                                                      # 002
                                                      MPN: 522469
                                                      PIVOT JOINT
                                                      Supersession
                                                      Supersession
                                                      # 003
                                                      MPN: 522470
                                                      LEVER
                                                      from £218.69
                                                      from £218.69
                                                      # 004
                                                      MPN: 5z0,8z12 - UNI 274
                                                      SCREW
                                                      SIREA .
                                                      # 006
                                                      MPN: 5 X 0,8 x 7,5
                                                      BUSH
                                                      HELI-COIL
                                                      # 007
                                                      MPN: 522658
                                                      THREADED STUD
                                                      from £3.94
                                                      from £3.94
                                                      # 008
                                                      MPN: REO - 8
                                                      WASHER
                                                      OEB
                                                      Supersession
                                                      Supersession
                                                      # 009
                                                      MPN: 8x1.25 UNI 5588
                                                      NUT
                                                      LOBO 8 G
                                                      # 010
                                                      MPN: 522749
                                                      INTERRUTTORE
                                                      # 011
                                                      MPN: RC 10
                                                      WASHER
                                                      OEB
                                                      # 012
                                                      MPN: 522497
                                                      PIVOT
                                                      Supersession
                                                      Supersession
                                                      # 013
                                                      MPN: 522657
                                                      THREADED STUD
                                                      from £3.15
                                                      from £3.15
                                                      # 014
                                                      MPN: REG. 8
                                                      WASHER
                                                      OEB
                                                      Supersession
                                                      Supersession
                                                      # 015
                                                      MPN: 103313
                                                      SPACER
                                                      from £24.73
                                                      from £24.73
                                                      # 016
                                                      MPN: 522432
                                                      KNOB FOR LEVER
                                                      # 017
                                                      MPN: 53203
                                                      CONTRODADO PER POMELLO
                                                      from £119.54
                                                      from £119.54
                                                      # 018
                                                      MPN: AA231
                                                      SEEGER RING
                                                      OEB
                                                      # 019
                                                      MPN: 522515
                                                      DISCHETTO RITEGNO MOLLA
                                                      Supersession
                                                      Supersession
                                                      # 020
                                                      MPN: 522483
                                                      SPRING
                                                      Supersession
                                                      Supersession
                                                      # 021
                                                      MPN: 522514
                                                      PUNTALINO
                                                      Supersession
                                                      Supersession
                                                      # 022
                                                      MPN: 103189
                                                      GIUNTO
                                                      from £91.02
                                                      from £91.02
                                                      This part replaces part number 524508 - and 1 more. Click to view details
                                                      # 023
                                                      MPN: N 5x26
                                                      PIN
                                                      SPIROL
                                                      # 025
                                                      MPN: 520465
                                                      NUT
                                                      565 C
                                                      # 026
                                                      MPN: 521362
                                                      TIE ROD
                                                      Supersession
                                                      Supersession
                                                      # 028
                                                      MPN: 522484
                                                      TUBO COMANDO CAMBIO
                                                      from £76.20
                                                      from £76.20
                                                      # 029
                                                      MPN: 522722
                                                      SOFFIETTO
                                                      from £68.77
                                                      from £68.77
                                                      # 030
                                                      MPN: 521542
                                                      PIN
                                                      from £14.48
                                                      from £14.48
                                                      # 031
                                                      MPN: AA5e
                                                      SEEGER RING
                                                      OEB
                                                      # 032
                                                      MPN: 95860065
                                                      SEALING RING
                                                      from £1.59
                                                      from £1.59
                                                      # 032
                                                      MPN: OR 3081
                                                      SEALING RING
                                                      not as spare part - use part number: 95860065
                                                      # 033
                                                      MPN: 100041
                                                      CENTERING DOWEL
                                                      from £4.66
                                                      from £4.66
                                                      # 034
                                                      MPN: 522517
                                                      LEVER LOWER BACKPACK
                                                      Supersession
                                                      Supersession
                                                      # 035
                                                      MPN: 522482
                                                      SPRING
                                                      Supersession
                                                      Supersession
                                                      # 036
                                                      MPN: 522516
                                                      DISCHETTO RITEGNO MOLLA
                                                      Supersession
                                                      Supersession
                                                      # 037
                                                      MPN: AA 32 i
                                                      SEEGER RING
                                                      OEB
                                                      # 038
                                                      MPN: 400410
                                                      GOMMINO DI PROTEZIONE
                                                      # 039
                                                      MPN: 4159681
                                                      ENGINE SUMP OIL TEMPERATURE SENSOR THERMISTOR
                                                      FIAT
                                                      Supersession
                                                      Supersession
