021 - Output Shaft Gearing

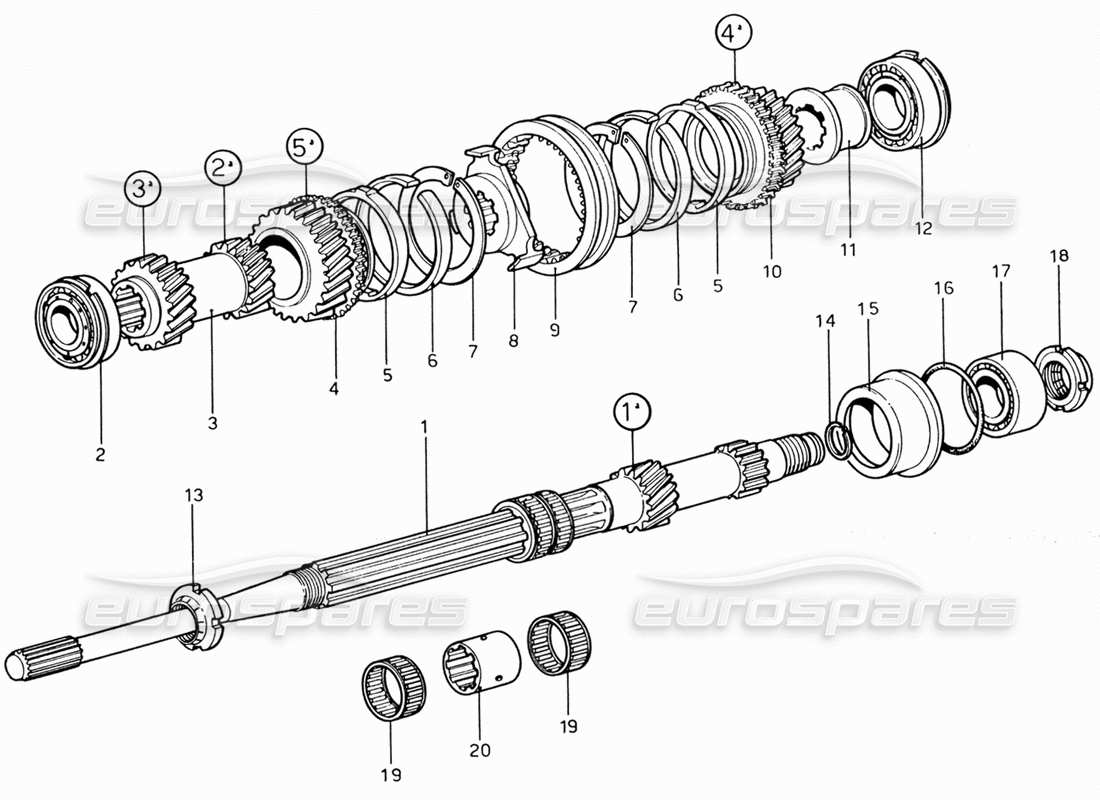

Ferrari 206 GT Dino (1969) Output Shaft Gearing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 522446
ALBERO PRIMARIO
from £267.58
from £267.58
# 002
MPN: 3DAAPV/32
Cuscinetto esterno (32.65.21)
RIV
from £720.00
from £720.00
# 003
MPN: 522742
INGRANAGGIO 2' E 3 VELOCITA
from £491.56
from £491.56
# 004
MPN: 523338
GEAR ASSEMBLY 5 SPEED AND DRIVE RING
from £1,163.35
from £1,163.35
This part replaces part number 522745
# 005
MPN: 522952
RING
from £488.96
from £488.96
# 006
MPN: 521767
SEEGER RING
93.5 mm
from £299.67
from £299.67
# 007
MPN: 53514
RING
from £85.61
from £85.61

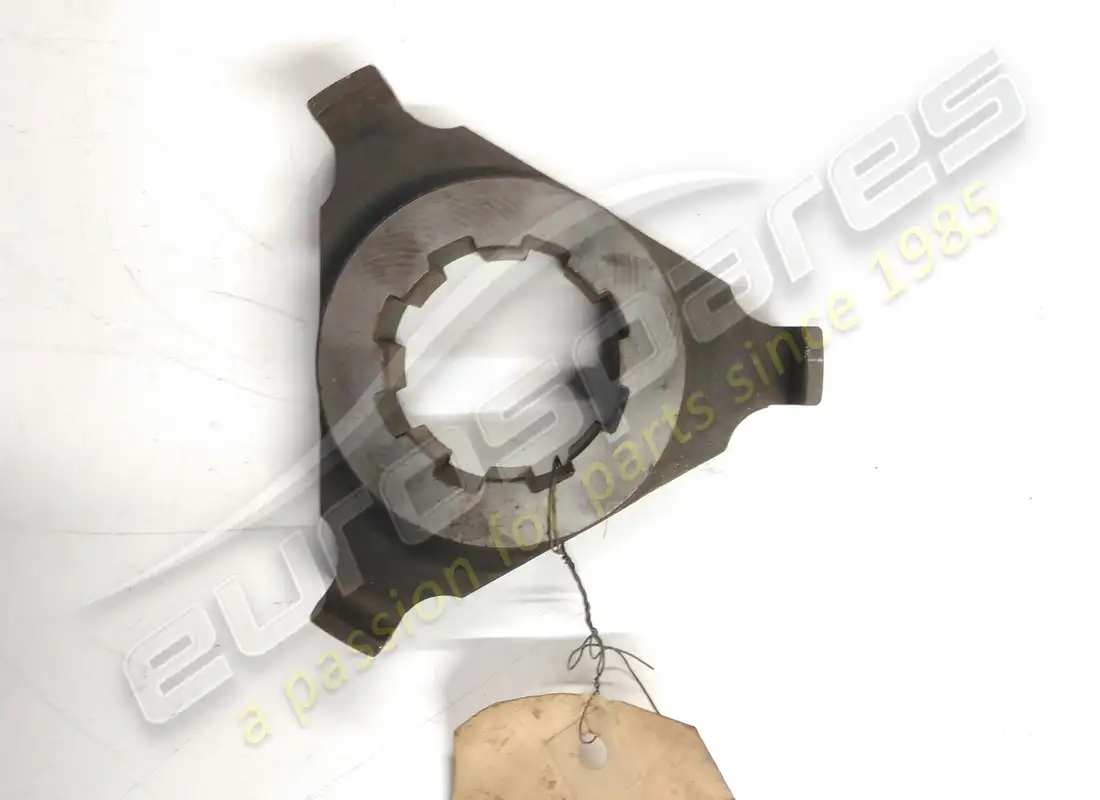

# 008
MPN: 522460
DRIVING CORE FOR 4 AND 5 SPEED
from £595.00
from £595.00
# 009
MPN: 522739
MANICOTTO DI COMANDO
from £624.80
from £624.80
This part replaces part number 522457
# 010
MPN: 523337
GEAR ASSEMBLY 4 SPEED AND DRIVE RING
from £489.99
from £489.99
This part replaces part number 522744

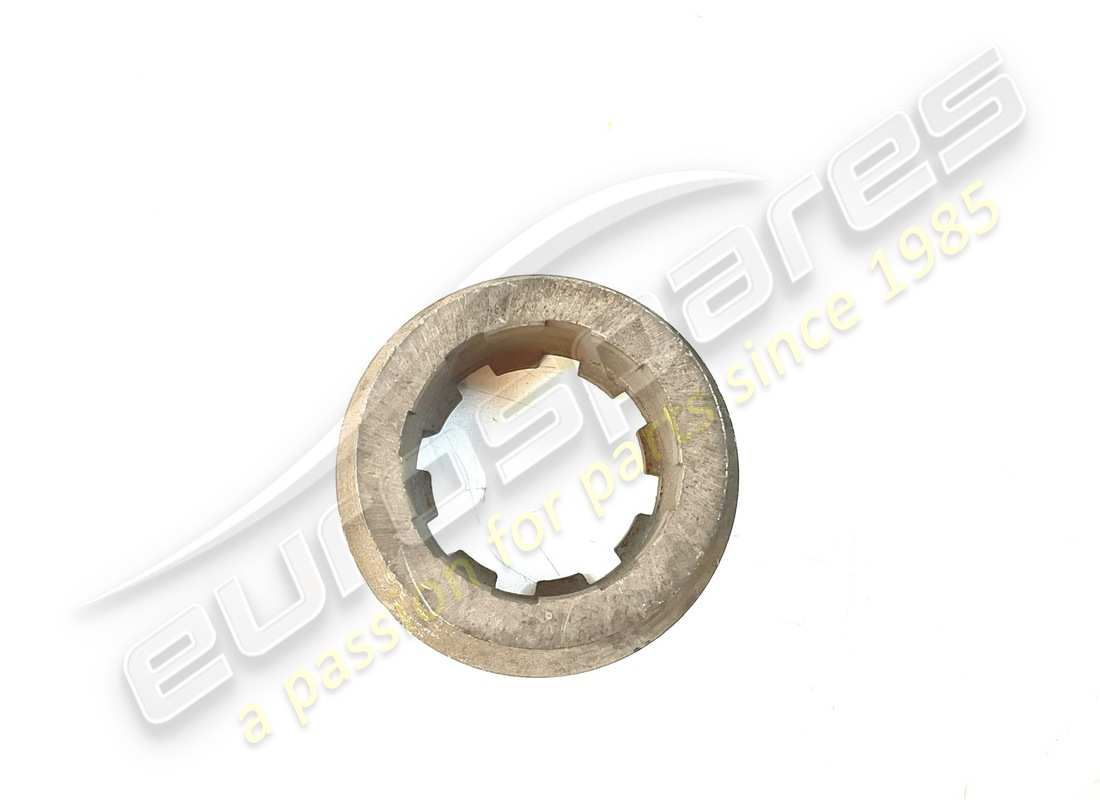

# 011
MPN: 522505
SPACER
from £92.88
from £92.88
# 012
MPN: 4DAAPV
Cuscinetto interno (35-72-23)
RIV
Supersession
Supersession
# 013
MPN: 522507
LOCKING RING NUT
from £89.84
from £89.84
# 014
MPN: 113087
OIL SEAL
from £39.40
from £39.40
This part replaces part number 22804
# 015
MPN: 522464
PORCE IT BEARING
from £52.23
from £52.23
# 016
MPN: 95860086
SEALING RING
from £2.71
from £2.71
# 017
MPN: 3AA NOn 32
CUSCINETTO REGGISPINTA (32-65-25)
RIV
from £154.68
from £154.68
# 018
MPN: 522506
LOCKING RING NUT
from £95.67
from £95.67
# 019
MPN: K 42/17 - 2-4
ROLLER CAGE FOR 4 AND 5 SPEED
INA - Selezlone
# 020
MPN: 521122
ROLLER TRACK FOR GEARS 4 AND 5 SPEED
from £144.34
from £144.34
