ferrari 206 gt dino (1969) clutch unit and cover parts diagram

019 - Clutch Unit and Cover

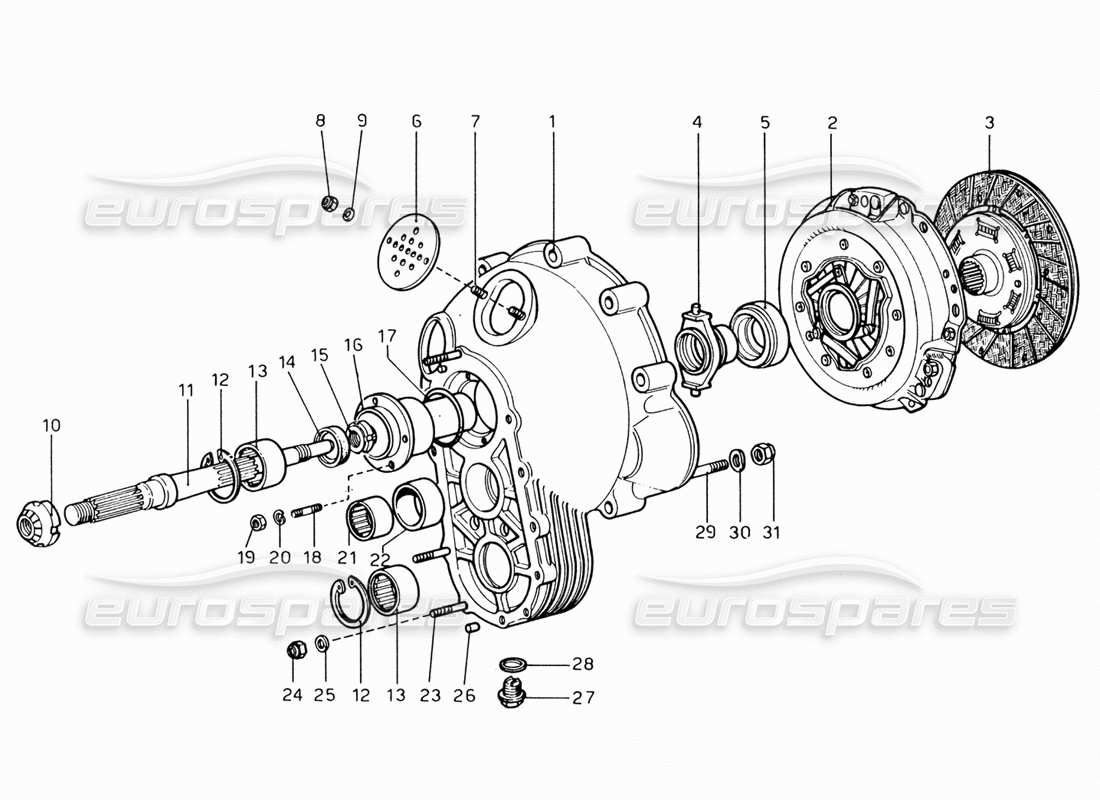

Ferrari 206 GT Dino (1969) Clutch Unit and Cover Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 001
                                MPN: 500509
                                CAMPANA FRIZIONE
                                # 002
                                MPN: 4149105
                                CLUTCH PRESSURE PLATE
                                FIAT - 135 AC100
                                # 003
                                MPN: 4166899
                                DRIVEN DISC
                                FIAT - 135 AC700
                                # 004

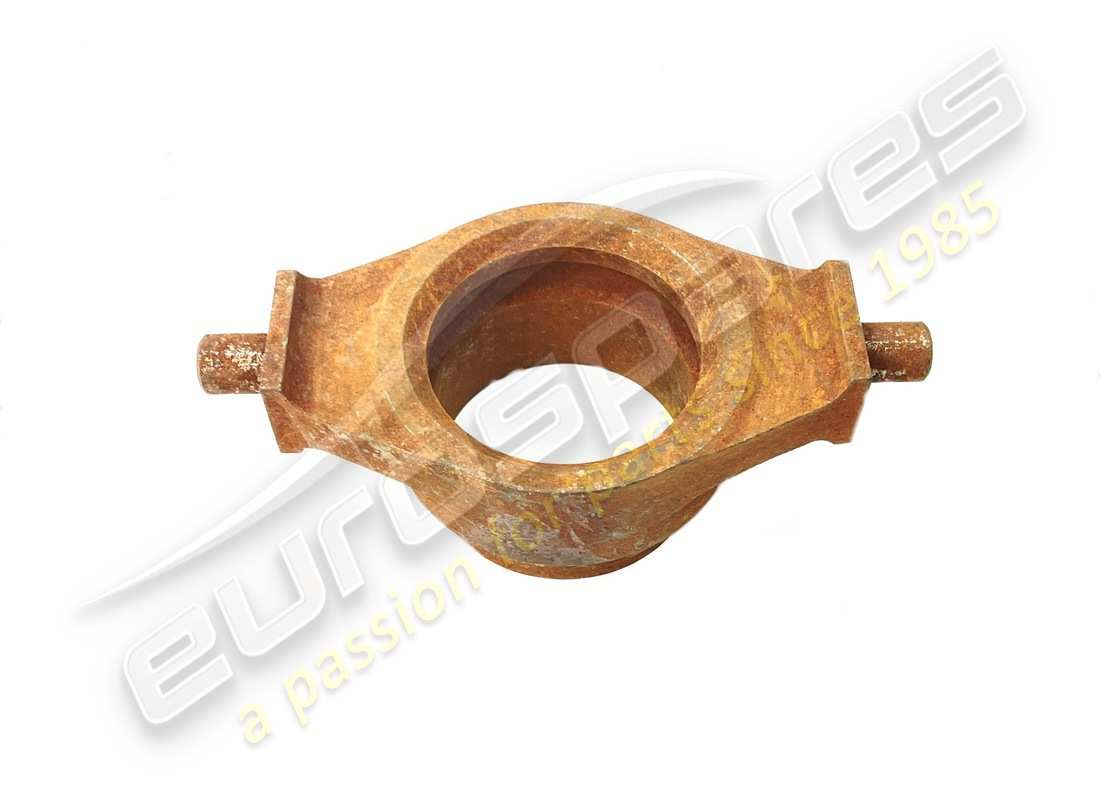

                                MPN: 500518
                                BEARING SLIDE
                                from £262.50
                                from £262.50
                                # 005
                                MPN: 4128752
                                CUSCINETTO COM. DISINNESTO FRIZIONE
                                FIAT - 135 AC100
                                Supersession
                                Supersession
                                # 006
                                MPN: 500521
                                COPERCHIETTO
                                from £45.35
                                from £45.35
                                # 007
                                MPN: 95920107
                                THREADED STUD
                                5x10
                                from £1.50
                                from £1.50
                                # 008
                                MPN: 205 MA
                                NUT
                                US/B70
                                # 010
                                MPN: 500517
                                LOCKING RING NUT
                                from £82.78
                                from £82.78
                                # 011
                                MPN: 500512
                                ALBERO FRIZIONE
                                # 012
                                MPN: BR 45
                                SEAL
                                INA
                                # 013

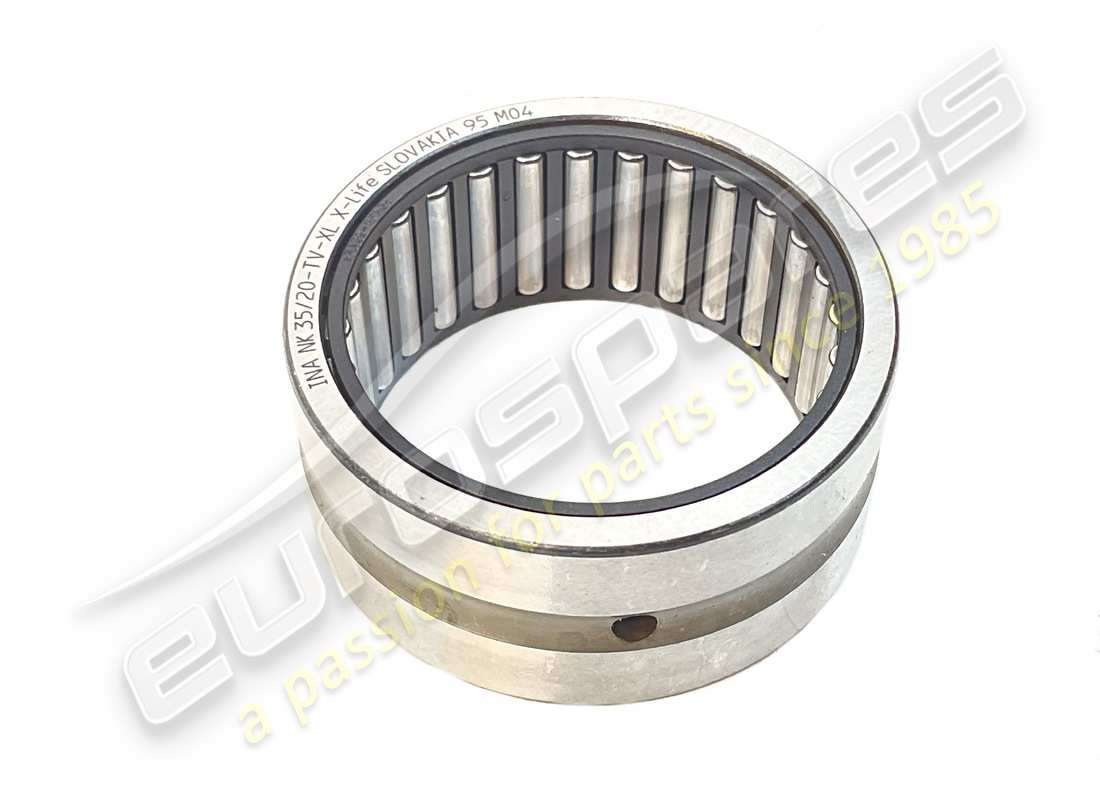

                                MPN: HK 35/20
                                CUSCINETTO A RULLINI
                                INA
                                from £35.00
                                from £35.00
                                # 014
                                MPN: 95850206
                                SEALING RING
                                MUM
                                from £12.29
                                from £12.29
                                # 015
                                MPN: 95910200
                                RING NUT
                                from £9.74
                                from £9.74
                                # 016
                                MPN: 500514
                                FLANGIA CON MANICOTTO
                                from £1.37
                                from £1.37
                                # 017
                                MPN: 101024
                                SEALING RING
                                from £1.41
                                from £1.41
                                This part replaces part number 95860020
                                # 018
                                MPN: 95920110
                                THREADED STUD
                                6x12
                                from £1.31
                                from £1.31
                                # 019
                                MPN: 6 x 1 - UNI 5588
                                NUT
                                LOBO 8 G
                                # 020
                                MPN: REG - 6
                                WASHER
                                OEB
                                # 021

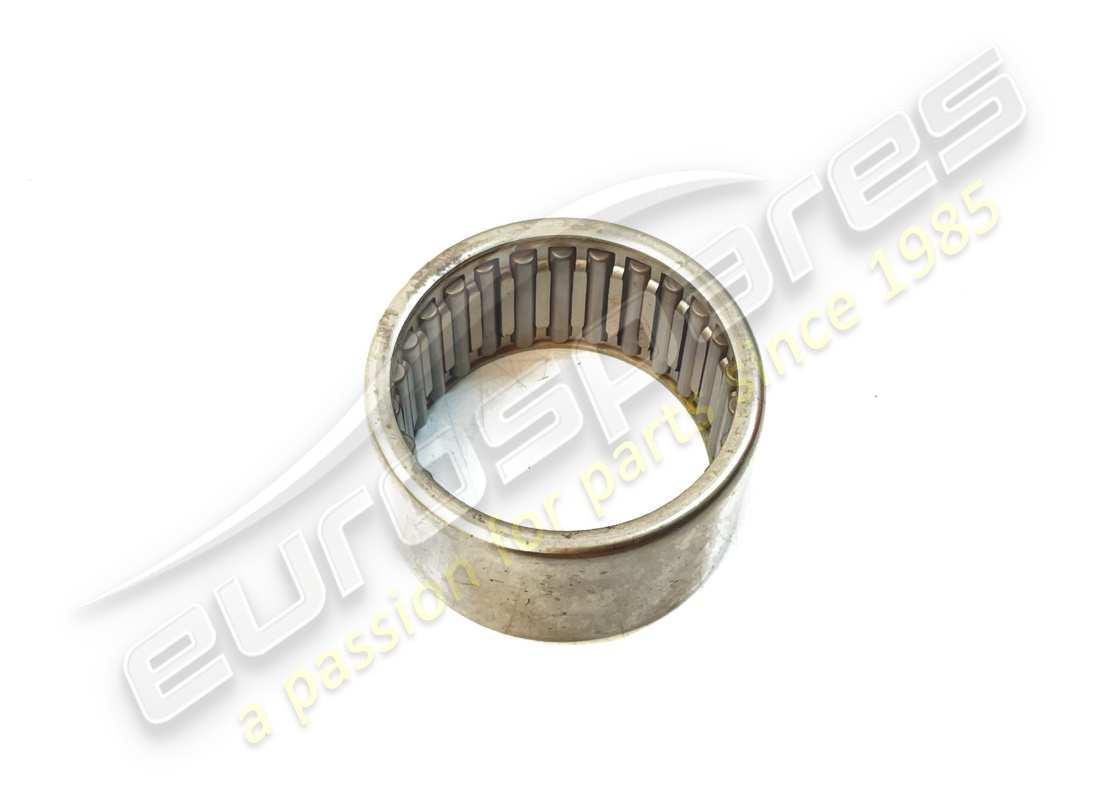

                                MPN: HK 30/20
                                CUSCINETTO A RULLINI
                                INA
                                from £19.06
                                from £19.06
                                # 022
                                MPN: 500519
                                SPACER
                                from £61.58
                                from £61.58
                                # 023
                                MPN: P 2
                                THREADED STUD
                                8x50
                                Supersession
                                Supersession
                                # 024
                                MPN: 95900603
                                NUT
                                from £0.77
                                from £0.77
                                # 025
                                MPN: REO - 8
                                WASHER
                                OEB
                                Supersession
                                Supersession
                                # 026
                                MPN: GC2
                                CENTERING DOWEL
                                8x12
                                # 027
                                MPN: 183962
                                OIL PLUG
                                from £14.81
                                from £14.81
                                This part replaces part number 182116
                                # 028
                                MPN: 95119
                                WASHER
                                Supersession
                                Supersession
                                # 030
                                MPN: 12601474
                                WASHER
                                from £0.54
                                from £0.54
                                This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                # 031
                                MPN: 95900604
                                NUT
                                US/N70
                                from £1.71
                                from £1.71
                                This part replaces part number 110MB
