015 - Cooling

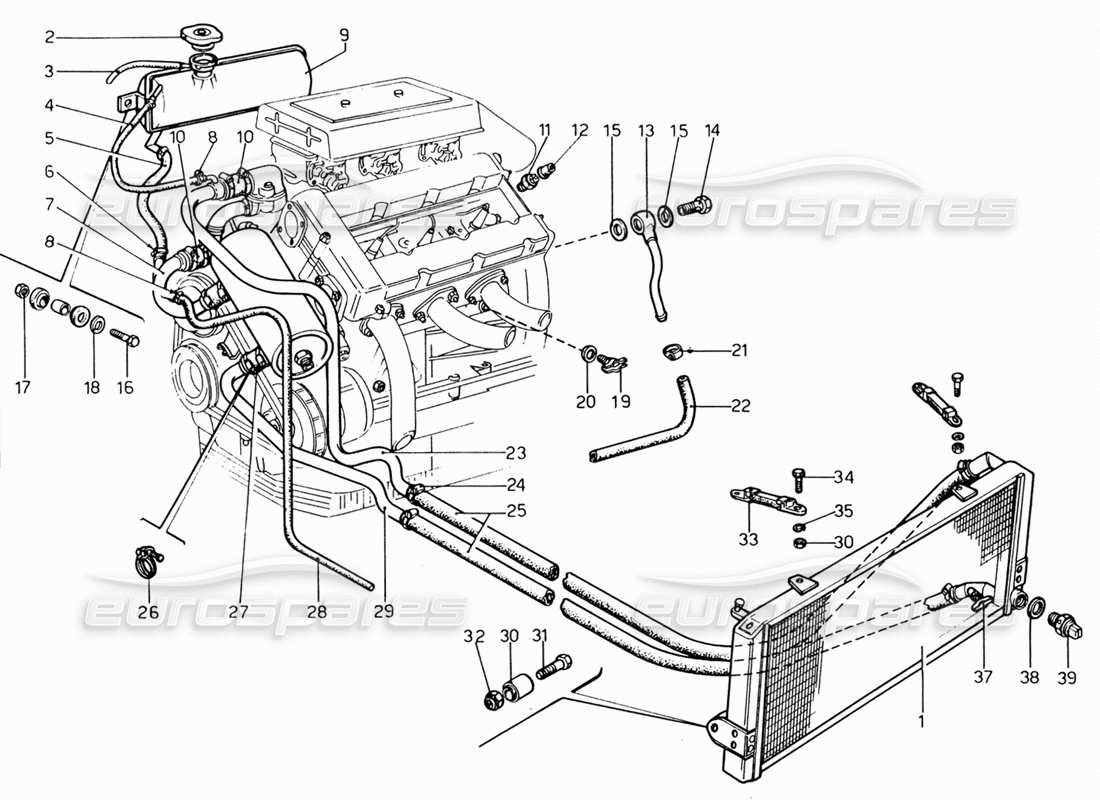

Ferrari 206 GT Dino (1969) Cooling Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 800188
RADIATORE ACQUA
# 002
MPN: 800204
TAPPO PER NOURICE
from £183.07
from £183.07
# 003
MPN: 800223
VENT PIPE ON THE CAP
from £273.70
from £273.70
# 004
MPN: 800197
TUBO SFIATO NOURICE
# 005
MPN: 95391
CONNECTING HOSE
# 006
MPN: 660323
FASCETTA FI=28
# 007
MPN: 240534
TUBO POMPA - SCAMBIATORE
236 B
# 008
MPN: tipo C F 15.16
JUBILEE CLIP
ANGST-PH
# 009
MPN: 104523

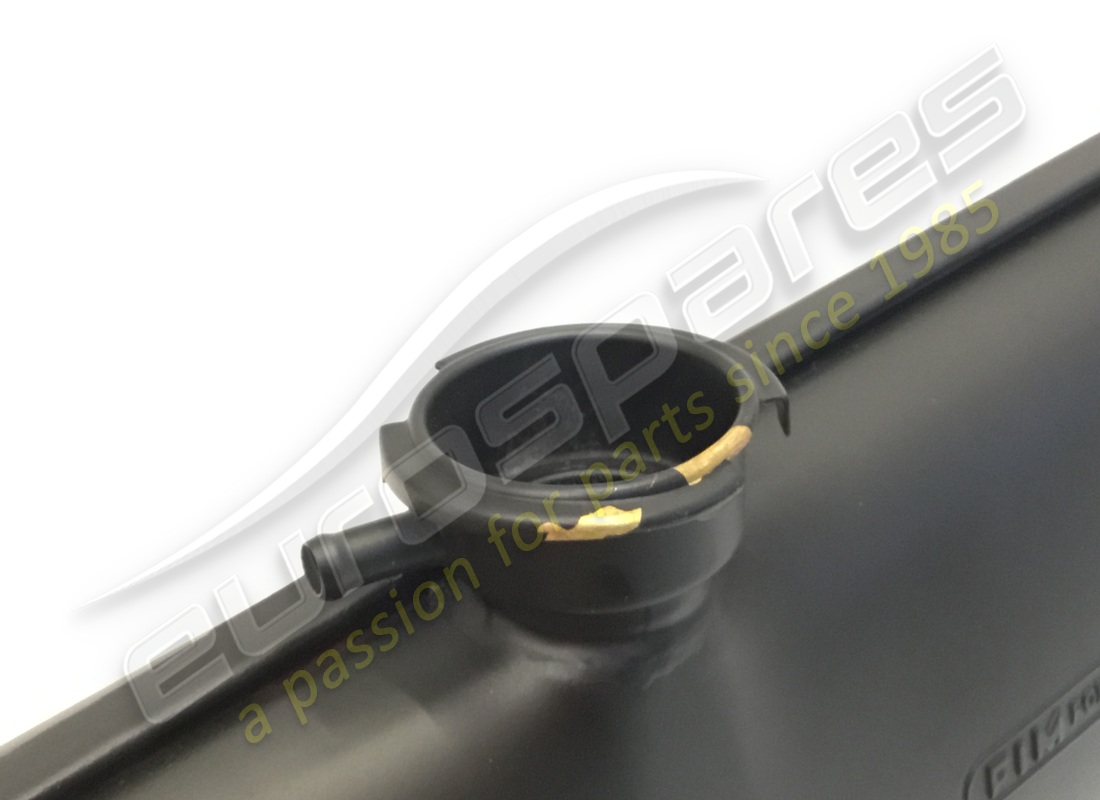

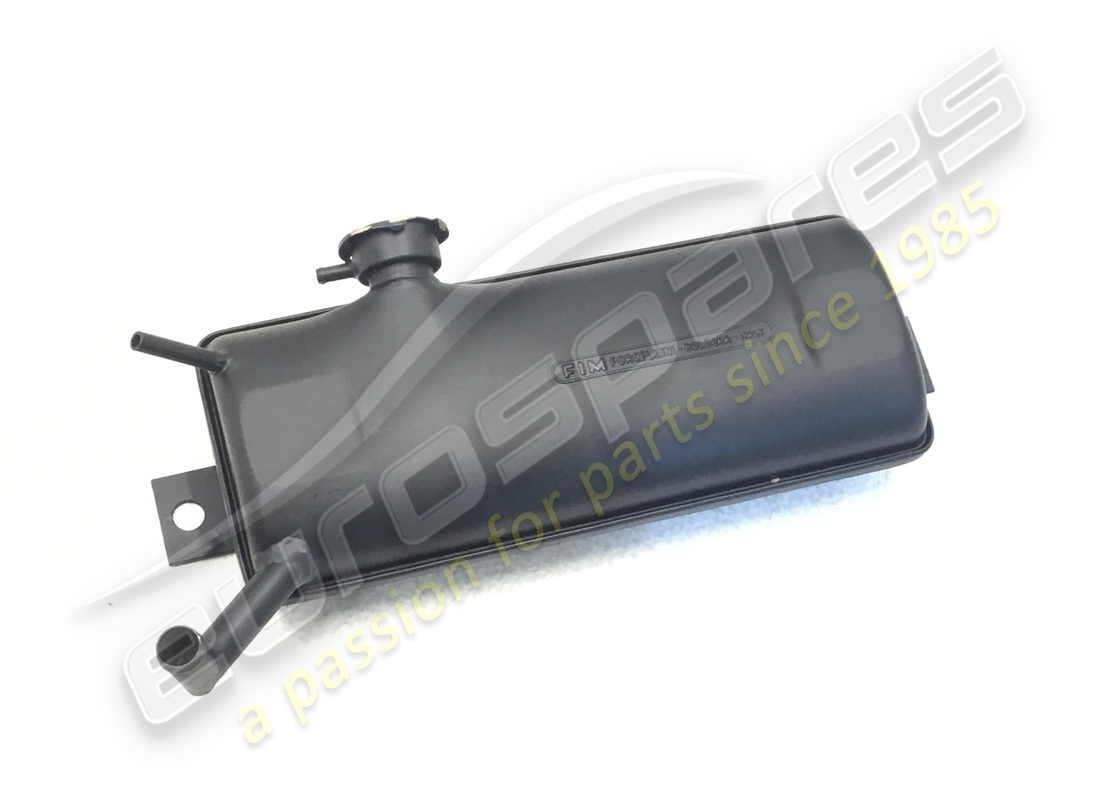

NOURICE COMPLETA
from £424.69
from £424.69
This part replaces part number 800221 - and 2 more. Click to view details
# 010
MPN: 94937
SLEEVE
from £10.86
from £10.86
# 011
MPN: 4108672
ELECTRICAL TRANSMITTER
FIAT
Supersession
Supersession
# 012
MPN: 4160940
CAPPUCCIO
FIAT
# 013
MPN: 4154184
UNION
FIAT
# 014
MPN: 10182611
UNION
FIAT
# 015
MPN: 10263360
GASKET
FIAT
from £0.53
from £0.53
This part replaces part number 94995
# 016
MPN: 8x25 UNI 5740
BOLT
LOBO 8 G
# 017
MPN: 108 MB
NUT
# 018
MPN: 95129
WASHER
# 019
MPN: 103948

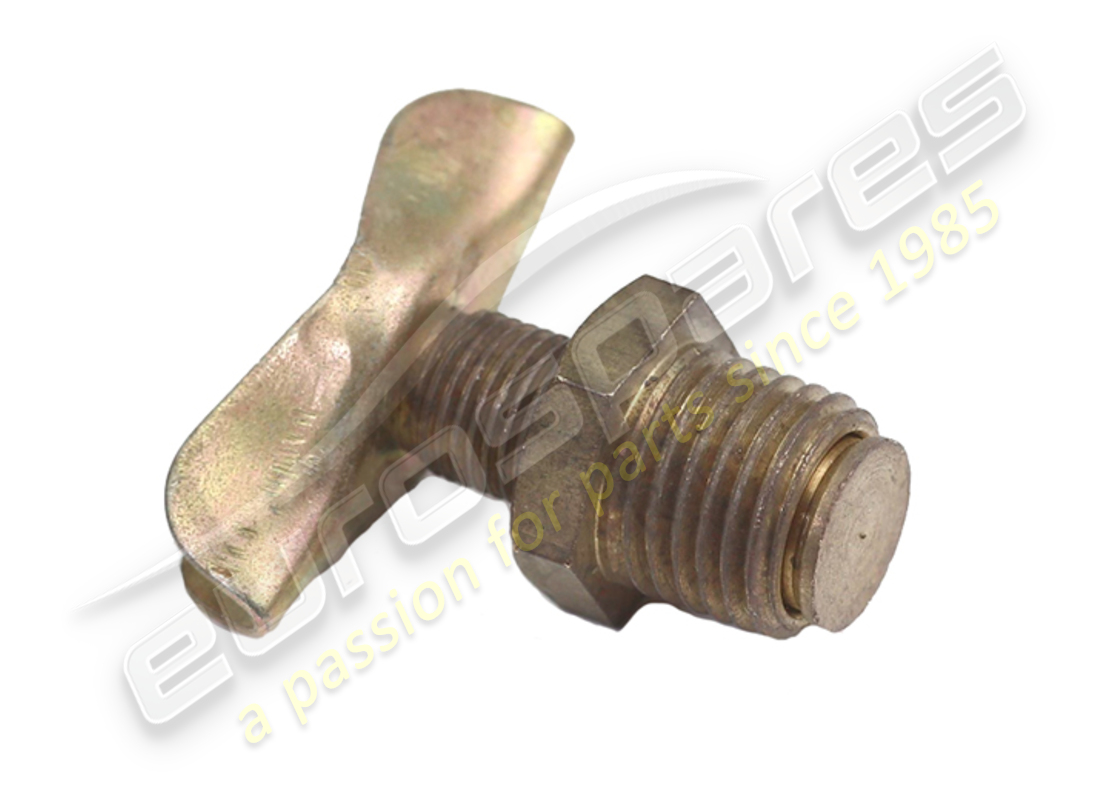

RADIATOR DRAIN TAP M14X1.5MM
from £95.35
from £95.35
This part replaces part number 10300640 - and 1 more. Click to view details
# 020
MPN: 10282460
GASKET
FIAT
from £0.56
from £0.56
# 021
MPN: tipo C Fi 22
JUBILEE CLIP
ANGST-PH
# 022
MPN: Calor 12x22
HEATER PIPE
PIRELLI
# 023
MPN: 800223
WATER OUTLET HOSE
from £273.70
from £273.70
# 024
MPN: llpo C-41-43
JUBILEE CLIP
ANGST-PH
# 025
MPN: 800199
TUBO GOMMA
from £100.49
from £100.49
This part replaces part number 800309
# 026
MPN: TIPO C-39-41
JUBILEE CLIP
ANGST-PH
# 027
MPN: 95390
SLEEVE
from £29.40
from £29.40
# 028
MPN: Calor 12x22
HEATER PIPE
PIRELLI
# 029
MPN: 240533
PIPE / TUBE / HOSE
236 B
# 030
MPN: 94678
SILENTBLOK (RIV 88110441)
from £17.79
from £17.79
# 031
MPN: 14 X 50 - UNI 5738
BOLT
LOBO 8 G
# 032
MPN: 95900611
NUT
US-8/70
Supersession
Supersession
# 033
MPN: 101497
EXHAUST STRAP
not as spare part - use part number: 101497
from £6.61
from £6.61
This part replaces part number 20180 - and 1 more. Click to view details
# 034
MPN: 6x6-UNI 5739
BOLT
LOBO 8 G
# 035
MPN: REG - 6
WASHER
OEB
# 036
MPN: 6x1-UNI 5586
NUT
LOBO 8 G
# 037
MPN: 101484
RADIATOR CAP
FIM
from £21.94
from £21.94
# 038
MPN: 101508
GASKET
from £0.84
from £0.84
This part replaces part number 94706
# 039
MPN: 65.8029
TERMOCONTATTO
BORLETTI
