ferrari 206 gt dino (1969) weber 40 dcnf-1 carburettor parts diagram

010 - Weber 40 DCNF-1 Carburettor

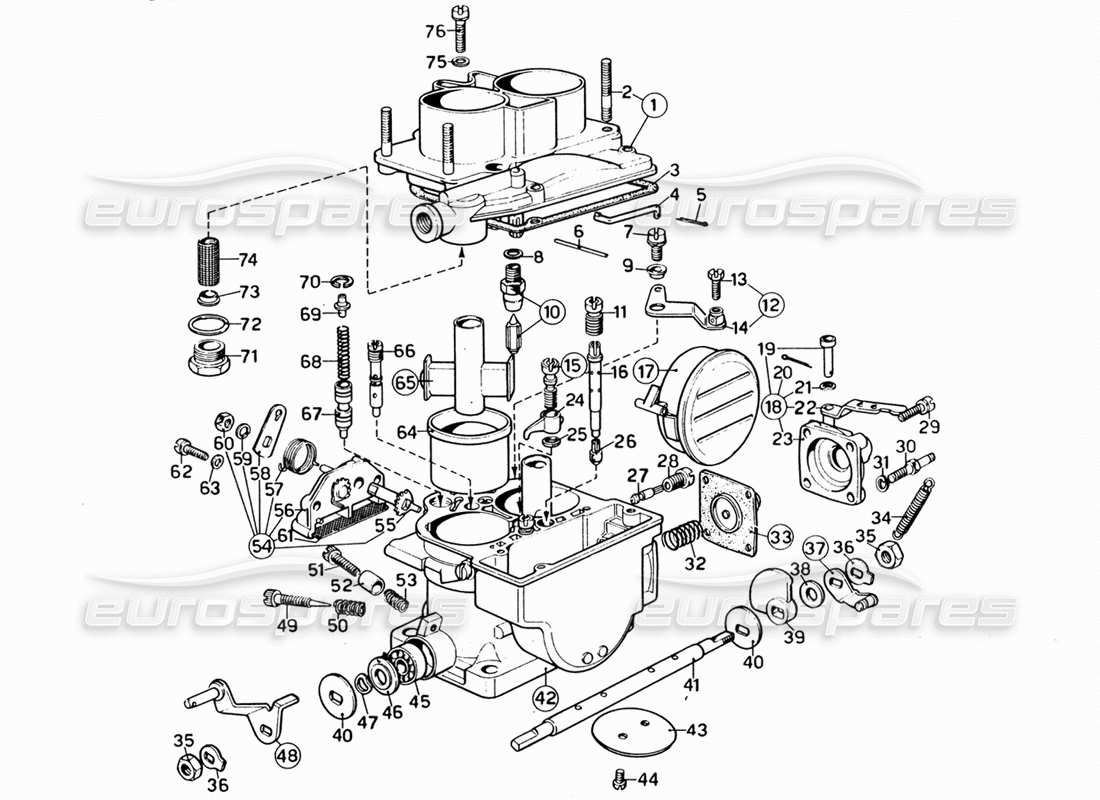

Ferrari 206 GT Dino (1969) Weber 40 DCNF-1 Carburettor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                            #
                                                                                                                                            Part number
                                                                                                                                            Description
                                                                                                                                            Key
                                                                                                                                            Price
                                                                                                                                            # 000
                                                                                                                                            MPN: K775SE
                                                                                                                                            CARBURETTOR REBUILD GASKET SET
                                                                                                                                            40DCNF
                                                                                                                                            from £254.17
                                                                                                                                            from £254.17
                                                                                                                                            Eurospares Approved Part (no longer available to order)
                                                                                                                                            CARBURETTOR REPAIR KIT 40 DCNF (13) Genuine Ferrari Part - New (to order)
                                                                                                                                            # 001
                                                                                                                                            MPN: 9918767
                                                                                                                                            COVER
                                                                                                                                            COVER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 002
                                                                                                                                            MPN: 9909525
                                                                                                                                            SCREW
                                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                                            # 003
                                                                                                                                            MPN: 9918747
                                                                                                                                            GASKET OR SEAL
                                                                                                                                            GASKET OR SEAL Genuine Ferrari Part - New (to order)
                                                                                                                                            # 004
                                                                                                                                            MPN: 9918748
                                                                                                                                            Tirantino comando avviamento
                                                                                                                                            Tirantino comando avviamento Genuine Ferrari Part - New (to order)
                                                                                                                                            # 005
                                                                                                                                            MPN: 9914495
                                                                                                                                            SPLIT PIN
                                                                                                                                            SPLIT PIN Genuine Ferrari Part - New (to order)
                                                                                                                                            # 006
                                                                                                                                            MPN: 9904710
                                                                                                                                            PIVOT FASTENING
                                                                                                                                            PIVOT FASTENING Genuine Ferrari Part - New (to order)
                                                                                                                                            # 007
                                                                                                                                            MPN: 9908650
                                                                                                                                            SCREW
                                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                                            # 008
                                                                                                                                            MPN: 9906837
                                                                                                                                            GASKET OR SEAL
                                                                                                                                            SEALING RING Genuine Ferrari Part - New (to order)
                                                                                                                                            # 009
                                                                                                                                            MPN: 9916275
                                                                                                                                            BUSH
                                                                                                                                            BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                            # 010
                                                                                                                                            MPN: 9917872
                                                                                                                                            VALVOLA A SPILLO
                                                                                                                                            VALVOLA A SPILLO Genuine Ferrari Part - New (to order)
                                                                                                                                            # 011
                                                                                                                                            MPN: 9918749
                                                                                                                                            JET
                                                                                                                                            JET Genuine Ferrari Part - New (to order)
                                                                                                                                            # 013
                                                                                                                                            MPN: 9914500
                                                                                                                                            SCREW
                                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                                            # 014
                                                                                                                                            MPN: 9918750
                                                                                                                                            LEVER
                                                                                                                                            45.096.019
                                                                                                                                            LEVER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 015
                                                                                                                                            MPN: 9916276
                                                                                                                                            VALVE
                                                                                                                                            VALVE Genuine Ferrari Part - New (to order)
                                                                                                                                            # 016
                                                                                                                                            MPN: 9918751
                                                                                                                                            TUBETTO EMULSIONATORE
                                                                                                                                            TUBETTO EMULSIONATORE Genuine Ferrari Part - New (to order)
                                                                                                                                            # 017
                                                                                                                                            MPN: 9918752
                                                                                                                                            FLOAT
                                                                                                                                            FLOAT Genuine Ferrari Part - New (to order)
                                                                                                                                            # 018
                                                                                                                                            MPN: 32486.013
                                                                                                                                            COVER
                                                                                                                                            COVER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 019
                                                                                                                                            MPN: 9916302
                                                                                                                                            PIVOT
                                                                                                                                            PIVOT Genuine Ferrari Part - New (to order)
                                                                                                                                            # 020
                                                                                                                                            MPN: 9914495
                                                                                                                                            COPPIGLIA
                                                                                                                                            SPLIT PIN Genuine Ferrari Part - New (to order)
                                                                                                                                            # 021
                                                                                                                                            MPN: 9916334
                                                                                                                                            WASHER
                                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 022
                                                                                                                                            MPN: 9916335
                                                                                                                                            LEVER
                                                                                                                                            LEVER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 023
                                                                                                                                            MPN: 9916336
                                                                                                                                            COVER
                                                                                                                                            COVER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 024
                                                                                                                                            MPN: 9916287
                                                                                                                                            JET
                                                                                                                                            JET Genuine Ferrari Part - New (to order)
                                                                                                                                            # 025
                                                                                                                                            MPN: 9904983
                                                                                                                                            GASKET OR SEAL
                                                                                                                                            SEALING RING Genuine Ferrari Part - New (to order)
                                                                                                                                            # 026
                                                                                                                                            MPN: 9918753
                                                                                                                                            JET
                                                                                                                                            JET Genuine Ferrari Part - New (to order)
                                                                                                                                            # 027
                                                                                                                                            MPN: 9918754
                                                                                                                                            JET
                                                                                                                                            JET Genuine Ferrari Part - New (to order)
                                                                                                                                            # 028
                                                                                                                                            MPN: 9907257
                                                                                                                                            PORTAGETTO MINIMO
                                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                                            # 029
                                                                                                                                            MPN: 9909139
                                                                                                                                            SCREW
                                                                                                                                            64700-004
                                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                                            # 030
                                                                                                                                            MPN: 9916337
                                                                                                                                            PIVOT
                                                                                                                                            STUD Genuine Ferrari Part - New (to order)
                                                                                                                                            # 031
                                                                                                                                            MPN: 9907260
                                                                                                                                            WASHER
                                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 032
                                                                                                                                            MPN: 9914510
                                                                                                                                            SPRING
                                                                                                                                            SPRING Genuine Ferrari Part - New (to order)
                                                                                                                                            # 033
                                                                                                                                            MPN: 9916280
                                                                                                                                            MEMBRANA POMPA
                                                                                                                                            MEMBRANA POMPA Genuine Ferrari Part - New (to order)
                                                                                                                                            # 034
                                                                                                                                            MPN: 9916338
                                                                                                                                            SPRING
                                                                                                                                            SPRING Genuine Ferrari Part - New (to order)
                                                                                                                                            # 035
                                                                                                                                            MPN: 9905045
                                                                                                                                            NUT
                                                                                                                                            34.710.003
                                                                                                                                            NUT Genuine Ferrari Part - New (to order)
                                                                                                                                            # 036
                                                                                                                                            MPN: 9911674
                                                                                                                                            WASHER
                                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 037
                                                                                                                                            MPN: 9916339
                                                                                                                                            LEVER
                                                                                                                                            LEVER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 038
                                                                                                                                            MPN: 9916340
                                                                                                                                            WASHER
                                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 039
                                                                                                                                            MPN: 9916341
                                                                                                                                            CAMMA COMANDO POMPA
                                                                                                                                            CAMMA COMANDO POMPA Genuine Ferrari Part - New (to order)
                                                                                                                                            # 040
                                                                                                                                            MPN: 9916342
                                                                                                                                            WASHER
                                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 041
                                                                                                                                            MPN: 9918755
                                                                                                                                            ALBERINO
                                                                                                                                            SHAFT Genuine Ferrari Part - New (to order)
                                                                                                                                            # 042
                                                                                                                                            -
                                                                                                                                            CORPO CARBURATORE
                                                                                                                                            # 043
                                                                                                                                            MPN: 9917875
                                                                                                                                            VALVOLA A FARFALLA
                                                                                                                                            64.005.020
                                                                                                                                            VALVOLA A FARFALLA Genuine Ferrari Part - New (to order)
                                                                                                                                            # 044
                                                                                                                                            MPN: 9917876
                                                                                                                                            SCREW
                                                                                                                                            64.520.027
                                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                                            # 045
                                                                                                                                            MPN: 9911682
                                                                                                                                            CUSCINETTO A SFERE
                                                                                                                                            CUSCINETTO A SFERE Genuine Ferrari Part - New (to order)
                                                                                                                                            # 046
                                                                                                                                            MPN: 9916346
                                                                                                                                            SCODELLINO PREMI CUSCINETTO
                                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 047
                                                                                                                                            MPN: 9916347
                                                                                                                                            WASHER
                                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 048
                                                                                                                                            MPN: 9918756
                                                                                                                                            LEVER
                                                                                                                                            LEVER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 049
                                                                                                                                            MPN: 9918757
                                                                                                                                            SCREW
                                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                                            # 050
                                                                                                                                            MPN: 9904577
                                                                                                                                            MOIIA
                                                                                                                                            SPRING Genuine Ferrari Part - New (to order)
                                                                                                                                            # 051
                                                                                                                                            MPN: 9904616
                                                                                                                                            SCREW
                                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                                            # 052
                                                                                                                                            MPN: 9916352
                                                                                                                                            BUSH
                                                                                                                                            BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                            # 053
                                                                                                                                            MPN: 9904577
                                                                                                                                            MOIIA
                                                                                                                                            SPRING Genuine Ferrari Part - New (to order)
                                                                                                                                            # 054
                                                                                                                                            MPN: 32556.013
                                                                                                                                            COVER
                                                                                                                                            from £11.86
                                                                                                                                            from £11.86
                                                                                                                                            LEVER ASSY Genuine Ferrari Part - New (to order)
                                                                                                                                            # 055
                                                                                                                                            MPN: 9911693
                                                                                                                                            SHAFT
                                                                                                                                            SHAFT Genuine Ferrari Part - New (to order)
                                                                                                                                            # 056
                                                                                                                                            MPN: 9918758
                                                                                                                                            COVER
                                                                                                                                            COVER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 057
                                                                                                                                            MPN: 9914788
                                                                                                                                            SPRING
                                                                                                                                            SPRING Genuine Ferrari Part - New (to order)
                                                                                                                                            # 058
                                                                                                                                            MPN: 9917859
                                                                                                                                            LEVER
                                                                                                                                            LEVER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 059
                                                                                                                                            MPN: 9911865
                                                                                                                                            WASHER
                                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 060
                                                                                                                                            MPN: 9904660
                                                                                                                                            NUT
                                                                                                                                            NUT Genuine Ferrari Part - New (to order)
                                                                                                                                            # 061
                                                                                                                                            MPN: 9911692
                                                                                                                                            ELEMENTO FILTRANTE
                                                                                                                                            FILTER ELEMENT Genuine Ferrari Part - New (to order)
                                                                                                                                            # 062
                                                                                                                                            MPN: 9909139
                                                                                                                                            SCREW
                                                                                                                                            E4700.004
                                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
                                                                                                                                            # 063
                                                                                                                                            MPN: 9904923
                                                                                                                                            WASHER
                                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 064
                                                                                                                                            MPN: 9916353
                                                                                                                                            DIFFUSER
                                                                                                                                            DIFFUSER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 065
                                                                                                                                            MPN: 9916354
                                                                                                                                            CENTRATORE
                                                                                                                                            NOZZLE Genuine Ferrari Part - New (to order)
                                                                                                                                            # 066
                                                                                                                                            MPN: 9918760
                                                                                                                                            JET
                                                                                                                                            JET Genuine Ferrari Part - New (to order)
                                                                                                                                            # 067
                                                                                                                                            MPN: 9918761
                                                                                                                                            VALVOLA AVVIAMENTO
                                                                                                                                            VALVOLA AVVIAMENTO Genuine Ferrari Part - New (to order)
                                                                                                                                            # 068
                                                                                                                                            MPN: 9918762
                                                                                                                                            SPRING
                                                                                                                                            SPRING Genuine Ferrari Part - New (to order)
                                                                                                                                            # 069
                                                                                                                                            MPN: 9918763
                                                                                                                                            BUSH
                                                                                                                                            BUSH Genuine Ferrari Part - New (to order)
                                                                                                                                            # 070
                                                                                                                                            MPN: 9918764
                                                                                                                                            ANELTO ELASTICO DI RITEGNO
                                                                                                                                            RING Genuine Ferrari Part - New (to order)
                                                                                                                                            # 071
                                                                                                                                            MPN: 9907813
                                                                                                                                            FILTER CAP
                                                                                                                                            FILTER CAP Genuine Ferrari Part - New (to order)
                                                                                                                                            # 072
                                                                                                                                            MPN: 99078014
                                                                                                                                            GASKET OR SEAL
                                                                                                                                            GASKET OR SEAL Genuine Ferrari Part - New (to order)
                                                                                                                                            # 073
                                                                                                                                            MPN: 9917874
                                                                                                                                            TAPPO PER ELEMENTO FILTRANTE
                                                                                                                                            TAPPO PER ELEMENTO FILTRANTE Genuine Ferrari Part - New (to order)
                                                                                                                                            # 074
                                                                                                                                            MPN: 9917873
                                                                                                                                            ELEMENTO FILTRANTE
                                                                                                                                            FILTER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 075
                                                                                                                                            MPN: 9904941
                                                                                                                                            WASHER
                                                                                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                                                                                            # 076
                                                                                                                                            MPN: 9904687
                                                                                                                                            SCREW
                                                                                                                                            SCREW Genuine Ferrari Part - New (to order)
