aston martin db9 (2004) rear brake system parts diagram

060400-C1 - Rear Brake System

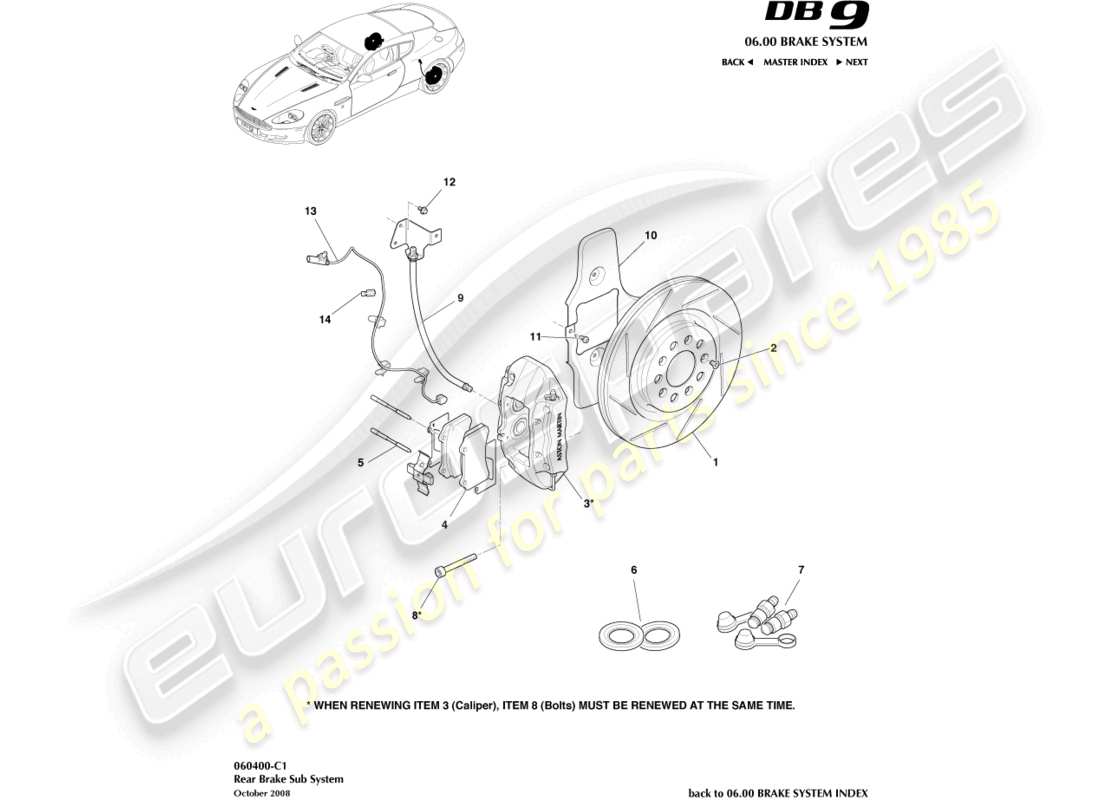

Aston Martin DB9 (2004) Rear Brake System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 1
            MPN: 4G43-28-10266
            DISC, REAR BRAKE
            Sold in Singles. ALWAYS Fit in Pairs.
            from £183.02
            from £183.02
            # 2
            MPN: 4G43-2N389-AA
            SCREW, M8 FL HD CSK
            from £0.47
            from £0.47
            # 3
            MPN: 7G43-2C465-AA
            CALIPER, REAR, GREY, NO PADS, LH
            from £205.16
            from £205.16
            # 3
            MPN: 7G43-2C464-AA
            CALIPER, REAR, GREY, NO PADS, RH
            from £205.16
            from £205.16
            # 3
            MPN: 7G43-2C465-CA
            CALIPER, REAR, BLACK, NO PADS, LH
            from £364.74
            from £364.74
            # 3
            MPN: 7G43-2C464-CA
            CALIPER, REAR, BLACK, NO PADS, RH
            from £364.74
            from £364.74
            # 3
            MPN: 7G43-2C465-DA
            CALIPER, REAR, RED, NO PADS, LH
            from £373.02
            from £373.02
            # 3
            MPN: 7G43-2C464-DA
            CALIPER, REAR, RED, NO PADS, RH
            from £373.02
            from £373.02
            # 3
            MPN: 7G43-2C465-EA
            CALIPER, REAR, SILVER, NO PADS, LH
            from £373.02
            from £373.02
            # 3
            MPN: 7G43-2C464-EA
            CALIPER, REAR, SILVER, NO PADS, RH
            from £373.02
            from £373.02
            # 3
            MPN: 4G43-28-10942
            KIT, BRAKE PAD & SHIMS, REAR
            from £368.80
            from £368.80
            # 3
            MPN: 7G43-2C464-FA
            CALIPER, REAR, YELLOW, NO PADS, LH
            FROM 12MY
            from £373.02
            from £373.02
            # 3
            MPN: 7G43-2C465-FA
            CALIPER, REAR, YELLOW, NO PADS, RH
            FROM 12MY
            from £373.02
            from £373.02
            # 4
            MPN: 7G43-2C562-AA
            BRAKE PAD KIT, REAR
            Per axle set
            from £327.18
            from £327.18
            # 4
            MPN: 4G43-28-10942
            KIT, BRAKE PAD & SHIMS, REAR
            from £368.80
            from £368.80
            # 5
            MPN: 4G43-2C588-BA
            KIT, PAD SPRING & PIN, REAR CALIPER
            per caliper
            from £41.64
            from £41.64
            # 6
            MPN: 4G43-32610-AA
            KIT, DUST BOOT, REAR CALIPER
            per caliper
            from £28.82
            from £28.82
            # 7
            MPN: 4G43-2C563-AA
            KIT, BLEED SCREW
            per caliper
            from £9.88
            from £9.88
            # 7
            MPN: 4G43-33693-AA
            CAP, BLEED SCREW
            per caliper
            from £16.22
            from £16.22
            # 8
            MPN: 4G43-2C564-AB
            BOLT, SOCKET HD
            -N.B. Always fit new bolts, do not reuse
            from £1.74
            from £1.74
            # 9
            MPN: 4G43-2282-AA
            HOSE ASSY, LH
            Up to 08MY
            # 9
            MPN: 8G43-2282-AA
            HOSE ASSY, LH
            FROM 08MY
            from £45.10
            from £45.10
            # 9
            MPN: 4G43-2282-BA
            HOSE ASSY, RH
            Up to 08MY
            # 9
            MPN: 8G43-2282-BA
            HOSE ASSY, RH
            FROM 08MY
            from £115.22
            from £115.22
            # 10
            MPN: 4G43-2C029-AA
            SHIELD, REAR BRAKE DISC LH
            # 10
            MPN: 4G43-2C028-AA
            SHIELD, REAR BRAKE DISC RH
            # 11
            MPN: 4G43-13D026-AA
            SCREW, M6 FL HD CSK
            from £0.47
            from £0.47
            # 12
            MPN: 703265
            BOLT, M6 X 16
            from £0.47
            from £0.47
            # 13
            MPN: 4G43-2D009-AB
            LEAD, PAD WEAR, REAR
            from £26.35
            from £26.35
            # 14
            MPN: 37-90075
            TIE STRAP
            Wear lead to hose
            from £0.47
            from £0.47
