maserati ghibli 2.8 (abs) instrument panel (lh drive) parts diagram

062 - Instrument Panel (LH Drive)

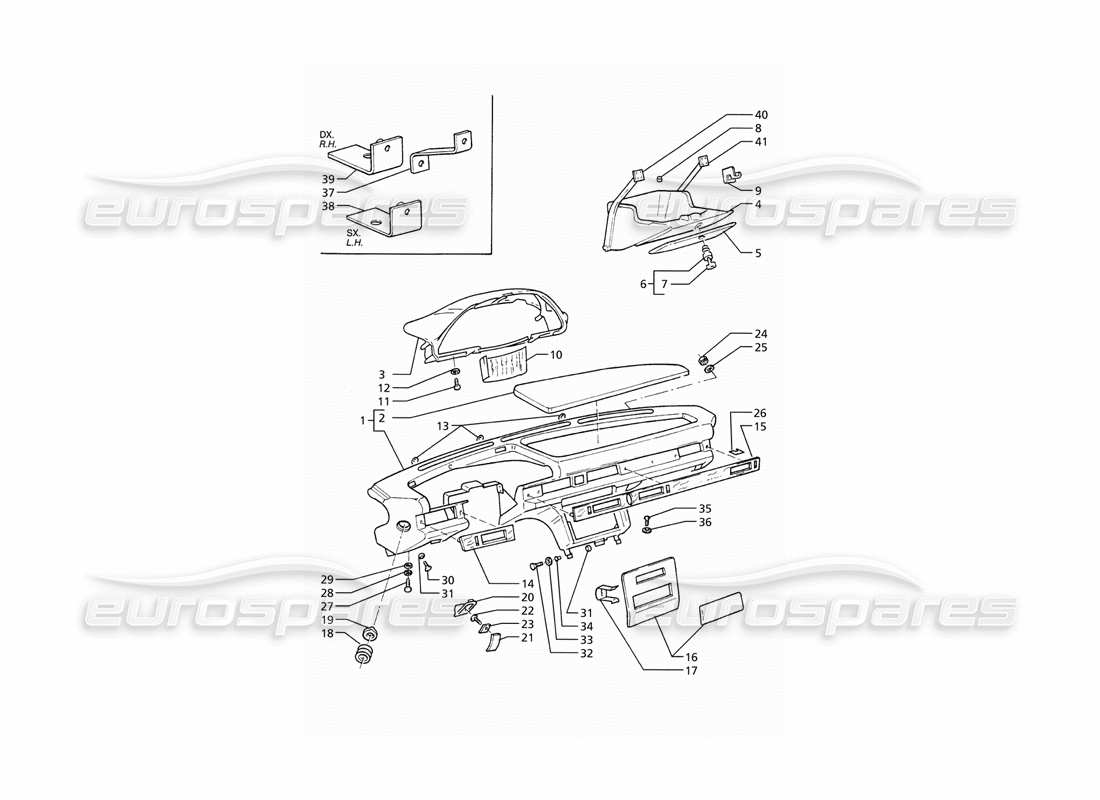

Maserati Ghibli 2.8 (ABS) Instrument Panel (L.H.Drive) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 362300046
    DASHBOARD (GREY LEATHER)
    - Valid for 09, 10 and 02 version
    from £704.70
    from £704.70
    This part replaces part number 362300042
    DASHBOARD Genuine Maserati Part - New (to order)
    # 001
    MPN: 362300047
    DASHBOARD (BLACK LEATHER)
    - Valid for 09, 10 and 02 version
    from £767.82
    from £767.82
    This part replaces part number 362300043
    DASHBOARD Genuine Maserati Part - New (to order)
    # 001
    MPN: 362300056
    DASHBOARD (BEIGE LEATHER)
    - Valid for 09, 10 and 02 version
    from £786.38
    from £786.38
    This part replaces part number 362300041
    DASHBOARD,BEIGE L. Genuine Maserati Part - New (to order)
    # 001
    MPN: 362300060
    DASHBOARD (IVORY LEATHER)
    - Valid for 09, 10 and 02 version
    DASHBOARD (IVORY LEATHER) Genuine Maserati Part - New (to order)
    # 002
    MPN: 369100024
    DASHBOARD UPP. TRIMMING (BEIGE ALC.)
    - Valid for 09, 10 and 02 version
    from £8.53
    from £8.53
    Finisher Genuine Maserati Part - New (to order)
    # 002
    MPN: 392350175
    DASHBOARD UPP. TRIMMING (GREY ALC.)
    - Valid for 09, 10 and 02 version
    DASHBOARD UPPER TRIMMING (DARK GREY ALCANTARA) Genuine Maserati Part - New (to order)
    # 003
    MPN: 319122032
    INSTRUMENT HOUSING (BEIGE LEATHER)
    - Valid for 09, 10 and 02 version
    from £166.53
    from £166.53
    INSTRUMENTATION ASSY Genuine Maserati Part - New (to order)
    # 003
    MPN: 322356186
    INSTRUMENT HOUSING (GREY ALC.)
    - Valid for 09, 10 and 02 version
    from £160.20
    from £160.20
    INSTRUMENT ASSY Genuine Maserati Part - New (to order)
    # 003
    MPN: 322356188
    INSTRUMENT HOUSING (BLACK LEATHER)
    - Valid for 09, 10 and 02 version
    from £218.63
    from £218.63
    INVOL.QUADRO APPARECCHI P.NE Genuine Maserati Part - New (to order)
    # 003
    MPN: 362302186
    INSTRUMENT HOUSING (IVORY ALC.)
    - Valid for 09, 10 and 02 version
    from £160.20
    from £160.20
    INSTRUMENT HOUSING Genuine Maserati Part - New (to order)
    # 004
    MPN: 312353113
    DASHBOARD BOX
    - Valid for 09, 10 and 02 version
    from £20.11
    from £20.11
    DASHBOARD COMPARTMENT Genuine Maserati Part - New (to order)
    # 005
    MPN: 322356036
    DASHBOARD BOX TRIMMING (GREY LEATHER)
    - Valid for 09, 10 and 02 version
    from £53.48
    from £53.48
    DOOR Genuine Maserati Part - New (to order)
    # 005
    MPN: 322356037
    DASHBOARD BOX TRIMMING (BLACK LEATHER)
    - Valid for 09, 10 and 02 version
    from £51.99
    from £51.99
    DOOR Genuine Maserati Part - New (to order)
    # 005
    MPN: 328912022
    DASHBOARD BOX TRIMMING (IVORY LEATHER)
    - Valid for 09, 10 and 02 version
    from £52.39
    from £52.39
    LID Genuine Maserati Part - New (to order)
    # 005
    MPN: 339120022
    DASHBOARD BOX TRIMMING (BEIGE LEATHER)
    - Valid for 09, 10 and 02 version
    from £156.05
    from £156.05
    GLOVE BOX Genuine Maserati Part - New (to order)
    # 006
    MPN: 372380012
    DASHBOARD BOX LOCK
    - Valid for 09, 10 and 02 version
    from £94.92
    from £94.92
    This part replaces part number 372330012
    DASHBOARD LOCK Genuine Maserati Part - New (to order)
    # 007
    MPN: 312320376
    Key
    - Valid for 09, 10 and 02 version
    from £0.55
    from £0.55
    GLOVE COMPARTMENT KEY Genuine Maserati Part - New (to order)
    # 008
    MPN: 312320324
    GROMMET
    - Valid for 09, 10 and 02 version
    from £0.71
    from £0.71
    RUBBER Genuine Maserati Part - New (to order)
    # 009
    MPN: 312320339
    GLOVE BOX LOCK STRIKER
    - Valid for 09, 10 and 02 version
    from £1.59
    from £1.59
    STRIK PLATE,DASHB.GLOVE COMP. LOC Genuine Maserati Part - New (to order)
    # 010
    MPN: 319122033
    TRIM (BEIGE LEATHER)
    - Valid for 09, 10 and 02 version
    from £19.51
    from £19.51
    TRIM Genuine Maserati Part - New (to order)
    # 010
    MPN: 322356180
    TRIM (GREY LEATHER)
    - Valid for 09, 10 and 02 version
    from £18.95
    from £18.95
    STEERING COLUMN TRIM PANEL,GR.SC.A. Genuine Maserati Part - New (to order)
    # 010
    MPN: 322356182
    TRIM (BLACK LEATHER)
    - Valid for 09, 10 and 02 version
    from £19.51
    from £19.51
    TRIM Genuine Maserati Part - New (to order)
    # 011
    MPN: 119935190
    SCREW
    - Valid for 09, 10 and 02 version
    from £1.11
    from £1.11
    RETAINING SCREW Genuine Maserati Part - New (to order)
    # 012
    MPN: 30831442
    FLAT WASHER
    - Valid for 09, 10 and 02 version
    WASHER Genuine Maserati Part - New (to order)
    # 013
    MPN: 312320384
    GASKET
    - Valid for 09, 10 and 02 version
    from £0.71
    from £0.71
    GASKET Genuine Maserati Part - New (to order)
    # 014
    MPN: 362300135
    BRIEKWOOD FINISH
    - Valid for 09, 10 and 02 version
    from £129.90
    from £129.90
    BRIARWOOD FINISHER Genuine Maserati Part - New (to order)
    # 015
    MPN: 362302136
    BRIEKWOOD FINISH WITH GHIBLI NAME
    - Valid for 09, 10 and 02 version
    from £510.75
    from £510.75
    BRIARWOOD FINISHER Genuine Maserati Part - New (to order)
    # 016
    MPN: 368300278
    RADIO COMPARTMENT/ CLIM. CONTROL UNIT FINISHER
    - Valid for 09, 10 and 02 version
    from £261.80
    from £261.80
    This part replaces part number 328312243
    RADIO-A.C. SYSTEM HOUSING PANEL Genuine Maserati Part - New (to order)
    # 017
    MPN: 318320027
    BRACKET
    - Valid for 09, 10 and 02 version
    from £1.59
    from £1.59
    STAFFA FISSAGGIO AUTORADIO Genuine Maserati Part - New (to order)
    # 018
    MPN: 315520320
    BOOT
    - Valid for 09, 10 and 02 version
    from £16.73
    from £16.73
    GAITER FOR SIDE DOOR AIR Genuine Maserati Part - New (to order)
    # 019
    MPN: 315520319
    RING NUT
    - Valid for 09, 10 and 02 version
    from £1.59
    from £1.59
    DOOR AIR GAITER FASTENING RING NU Genuine Maserati Part - New (to order)
    # 020
    MPN: 312353336
    SUPPORT
    - Valid for 09, 10 and 02 version
    from £1.11
    from £1.11
    This part replaces part number 312320336
    CONTROL LEVER MOUNT,ANTRACITE Genuine Maserati Part - New (to order)
    # 021
    MPN: 312353333
    COMPARTMENT FINISHER
    - Valid for 09, 10 and 02 version
    from £1.72
    from £1.72
    STARTER LEVER TRIM PLATE,GREY Genuine Maserati Part - New (to order)
    # 022
    MPN: 119142160
    SCREW
    - Valid for 09, 10 and 02 version
    from £0.87
    from £0.87
    SCREW Genuine Maserati Part - New (to order)
    # 023
    MPN: 552315334
    WASHER
    - Valid for 09, 10 and 02 version
    from £1.11
    from £1.11
    WASHER Genuine Maserati Part - New (to order)
    # 024
    MPN: 128350060
    NUT
    - Valid for 09, 10 and 02 version
    Maserati PART 128350060 Genuine Maserati Part - New (to order)
    # 025
    MPN: 163030060
    FLAT WASHER
    - Valid for 09, 10 and 02 version
    from £1.11
    from £1.11
    WASHER Genuine Maserati Part - New (to order)
    # 026
    MPN: 312320381
    SHIM
    from £0.71
    from £0.71
    SPACER Genuine Maserati Part - New (to order)
