maserati ghibli 2.8 (abs) body shell: inner panels parts diagram

045.1 - Body Shell: Inner Panels

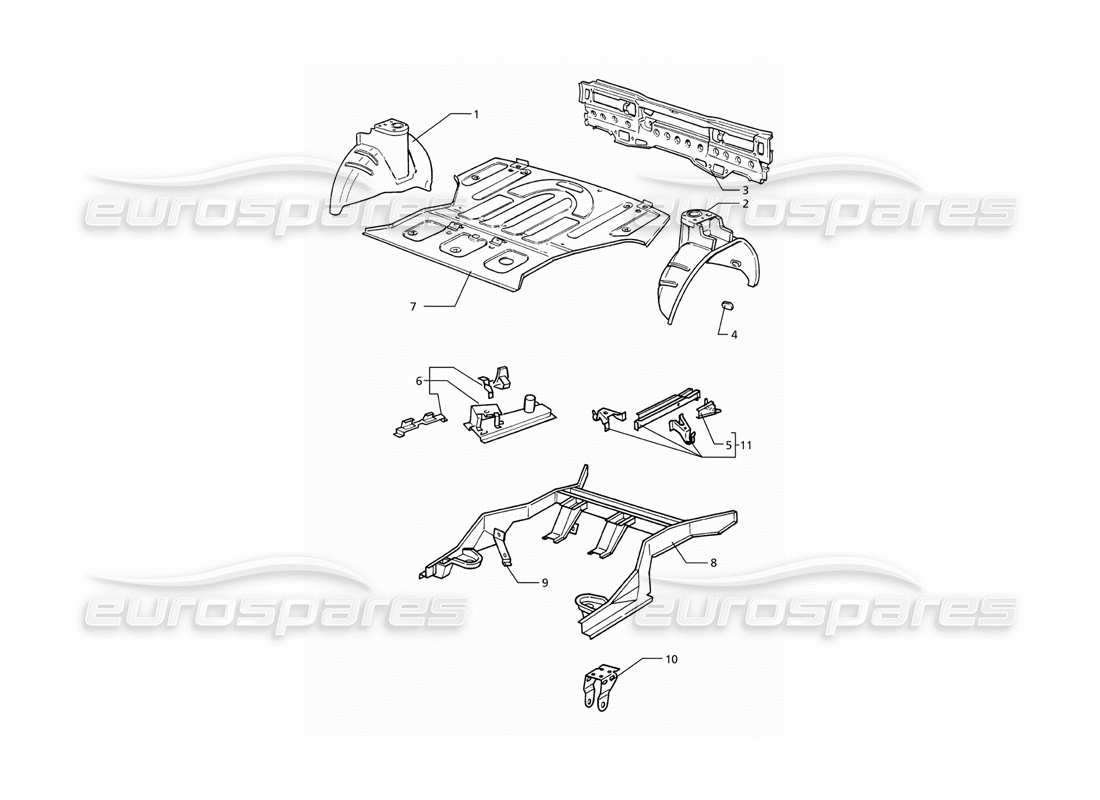

Maserati Ghibli 2.8 (ABS) Body Shell: Inner Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 331320220
                        RH INSIDE REAR WHEELARCH, ASSY
                        from £154.94
                        from £154.94
                        PASSARUOTA P.D. Genuine Maserati Part - New (to order)
                        # 002
                        MPN: 331320219
                        LH INSIDE REAR WHEELARCH, ASSY
                        from £158.18
                        from £158.18
                        PASSARUOTA P.S. Genuine Maserati Part - New (to order)
                        # 003
                        MPN: 361300228
                        REAR COVERING ASSY
                        from £2,836.62
                        from £2,836.62
                        COMPLETE REAR CROSS MEMBER Genuine Maserati Part - New In stock
                        # 004
                        MPN: 312120307
                        REAR WHEELARCH THROUGH HOLE PLUG
                        from £0.71
                        from £0.71
                        CAP Genuine Maserati Part - New (to order)
                        # 005
                        MPN: 361300237
                        REAR PINTLE
                        from £18.95
                        from £18.95
                        REAR PINTLE Genuine Maserati Part - New (to order)
                        # 006
                        MPN: 391150205
                        SET OF PLATES FOR BATTERY
                        from £9.11
                        from £9.11
                        SUPPORTI BATTERIA E MARTINET Genuine Maserati Part - New (to order)
                        # 007
                        MPN: 311320191
                        BOOT FLOOR
                        from £243.67
                        from £243.67
                        FLOOR Genuine Maserati Part - New (to order)
                        # 008
                        MPN: 371300202
                        rear chassis
                        from £322.96
                        from £322.96
                        Frame Genuine Maserati Part - New (to order)
                        # 009
                        MPN: 331320543
                        REAR LH SIDE MEMBER SIDE REINFORCEMENT
                        from £1.52
                        from £1.52
                        Maserati PART 331320543 Genuine Maserati Part - New (to order)
                        # 009
                        MPN: 331320544
                        REAR RH SIDE MEMBER SIDE REINFORCEMENT
                        from £3.25
                        from £3.25
                        Maserati PART 331320544 Genuine Maserati Part - New (to order)
                        # 010
                        MPN: 371300289
                        LH LOAD PROPORTIONING VALVE BRACKET
                        from £8.89
                        from £8.89
                        BRAKET Genuine Maserati Part - New (to order)
                        # 010
                        MPN: 371300290
                        RH LOAD PROPORTIONING VALVE BRACKET
                        from £8.89
                        from £8.89
                        BRAKET Genuine Maserati Part - New (to order)
                        # 011
                        MPN: 361300207
                        REAR LH SILL
                        from £14.76
                        from £14.76
                        LONGHERINA SX.PAV.POST.CPL Genuine Maserati Part - New (to order)
                        # 011
                        MPN: 361300208
                        REAR RH SILL
                        from £86.52
                        from £86.52
                        REAR RH SILL Genuine Maserati Part - New (to order)
