Maserati Ghibli 2.8 (ABS) timing control Parts Diagram

008 - timing control

Maserati Ghibli 2.8 (ABS) Timing Control Parts Diagram

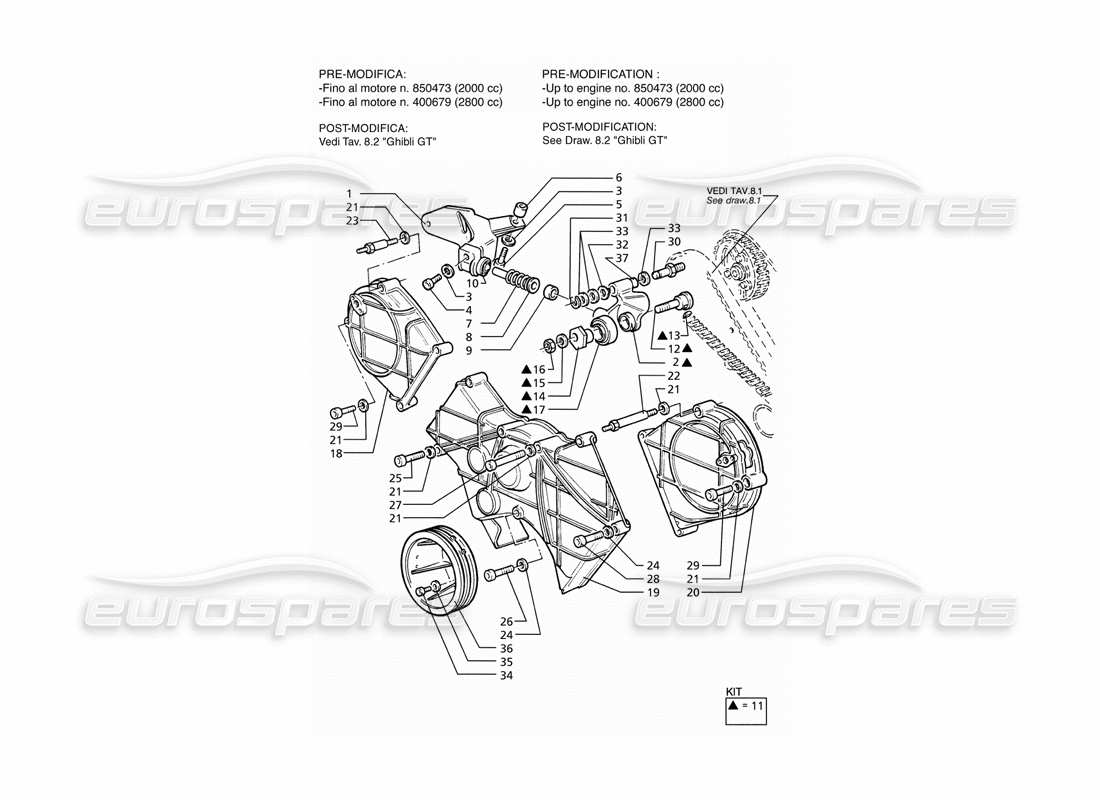

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Key
                                                                            Price
                                                                            # 001
                                                                            MPN: 317832369
                                                                            TENSIONER SUPPORT
                                                                            Maserati PART 317832369 Genuine Maserati Part - New (to order)
                                                                            # 002
                                                                            MPN: 475038102
                                                                            TIGHTENING PULLEY + BUSHING
                                                                            from £85.64
                                                                            from £85.64
                                                                            This part replaces part number 475037502
                                                                            TENSIONER SUPPORT Genuine Maserati Part - New (to order)
                                                                            # 003
                                                                            MPN: 138410080
                                                                            RETAINING WASHER
                                                                            Maserati PART 138410080 Genuine Maserati Part - New (to order)
                                                                            # 004
                                                                            MPN: 14306424
                                                                            SCREW
                                                                            from £0.47
                                                                            from £0.47
                                                                            SCREW (14306424) Genuine Ferrari Part - New In stock
                                                                            SCREW Genuine Maserati Part - New In stock
                                                                            # 008
                                                                            MPN: 475031500
                                                                            PUSH ROD
                                                                            from £1.59
                                                                            from £1.59
                                                                            CAP Genuine Maserati Part - New (to order)
                                                                            # 009
                                                                            MPN: 475031101
                                                                            SPACER
                                                                            from £15.11
                                                                            from £15.11
                                                                            BOCCOLE D.25X5X6 ADIPOL90SH Genuine Maserati Part - New (to order)
                                                                            # 010
                                                                            MPN: 475031401
                                                                            SPRING PLATE
                                                                            from £1.59
                                                                            from £1.59
                                                                            WASHER Genuine Maserati Part - New (to order)
                                                                            # 011
                                                                            MPN: 475949602
                                                                            TIGHTENING PULLEY ASSY
                                                                            from £190.40
                                                                            from £190.40
                                                                            TIGHTENING PULLEY Genuine Maserati Part - New (to order)
                                                                            # 012
                                                                            MPN: 311053353
                                                                            TIGHTENING PULLEY PIN
                                                                            Maserati PART 311053353 Genuine Maserati Part - New (to order)
                                                                            # 013
                                                                            MPN: 311053460
                                                                            TAB
                                                                            from £0.71
                                                                            from £0.71
                                                                            STANDARD US TAB 3X5 Genuine Maserati Part - New (to order)
                                                                            # 014
                                                                            MPN: 475033200
                                                                            ECCENTRIC
                                                                            from £6.98
                                                                            from £6.98
                                                                            CAM ON THE MOVABLE PULLEY Genuine Maserati Part - New (to order)
                                                                            # 015
                                                                            MPN: 452008901
                                                                            WASHER
                                                                            from £2.22
                                                                            from £2.22
                                                                            WASHER RN-75853 D.10.25X21X3 Genuine Maserati Part - New (to order)
                                                                            # 016
                                                                            MPN: 326656321
                                                                            SELF LOCKING NUT
                                                                            from £3.65
                                                                            from £3.65
                                                                            SELF-LOCKING NUT D.10X1.5X8. Genuine Maserati Part - New (to order)
                                                                            # 017
                                                                            MPN: 311020107
                                                                            TIMING BEARING
                                                                            from £99.75
                                                                            from £99.75
                                                                            TIMING BEARING Genuine Maserati Part - New In stock
                                                                            # 018
                                                                            MPN: 571002600
                                                                            RH COVER TOOTHED BELT
                                                                            from £19.33
                                                                            from £19.33
                                                                            COP.SENSORE MARELLI SU COP.A Genuine Maserati Part - New (to order)
                                                                            # 019
                                                                            MPN: 571038700
                                                                            CENTRE COVER TOOTHED BELT
                                                                            from £341.39
                                                                            from £341.39
                                                                            FRONT BELT GUARD Genuine Maserati Part - New (to order)
                                                                            # 020
                                                                            MPN: 571007300
                                                                            LH TOOTHED BELT
                                                                            from £35.39
                                                                            from £35.39
                                                                            COPERCHIO SX. CINGHIA DENTAT Genuine Maserati Part - New (to order)
                                                                            # 021
                                                                            MPN: 95564
                                                                            WASHER
                                                                            from £1.35
                                                                            from £1.35
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            WASHER Genuine Maserati Part - New In stock
                                                                            # 022
                                                                            MPN: 571003200
                                                                            STUD BOLT
                                                                            from £6.58
                                                                            from £6.58
                                                                            STUD Genuine Maserati Part - New (to order)
                                                                            # 023
                                                                            MPN: 571003300
                                                                            STUD BOLT
                                                                            from £4.76
                                                                            from £4.76
                                                                            STUD Genuine Maserati Part - New (to order)
                                                                            # 025
                                                                            MPN: 108006040
                                                                            SCREW L= 40MM
                                                                            SCREW L= 40MM Genuine Maserati Part - New (to order)
                                                                            # 026
                                                                            MPN: 95988
                                                                            SCREW L= 50MM
                                                                            SCREW L= 50MM Genuine Maserati Part - New (to order)
                                                                            # 028
                                                                            MPN: 14304821
                                                                            SCREW L= 55MM
                                                                            from £0.53
                                                                            from £0.53
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            SCREW 6X1X55 Genuine Maserati Part - New In stock
                                                                            # 030
                                                                            MPN: 470037600
                                                                            TIGHTENING PULLEY PIN
                                                                            from £42.74
                                                                            from £42.74
                                                                            This part replaces part number 311020343
                                                                            FULCRO SUPPORTO GALOP.TEND. Genuine Maserati Part - New (to order)
                                                                            # 032
                                                                            MPN: 96789
                                                                            WASHER (2 MM THICK)
                                                                            from £1.67
                                                                            from £1.67
                                                                            This part replaces part number 135200120
                                                                            FLAT WASHER D.12.5X20X2 Genuine Maserati Part - New In stock
                                                                            # 033
                                                                            MPN: 311020352
                                                                            WASHER (0.30 MM THICK)
                                                                            from £1.11
                                                                            from £1.11
                                                                            WASHER 12.7X20X0.5 Genuine Maserati Part - New (to order)
                                                                            # 035
                                                                            MPN: 312220411
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            ROSETTA Genuine Maserati Part - New (to order)
                                                                            # 036
                                                                            MPN: 571023801
                                                                            PULLEY
                                                                            from £1,297.43
                                                                            from £1,297.43
                                                                            COMPLETE PULLEY FOR SENSORS Genuine Maserati Part - New (to order)
                                                                            # 037
                                                                            MPN: 470037700
                                                                            BUSH
                                                                            from £4.74
                                                                            from £4.74
                                                                            This part replaces part number 311020336
                                                                            BOCCOLA FULCRO GALOP.MB 1225 Genuine Maserati Part - New (to order)
