010 - Fuel Tanks and Union

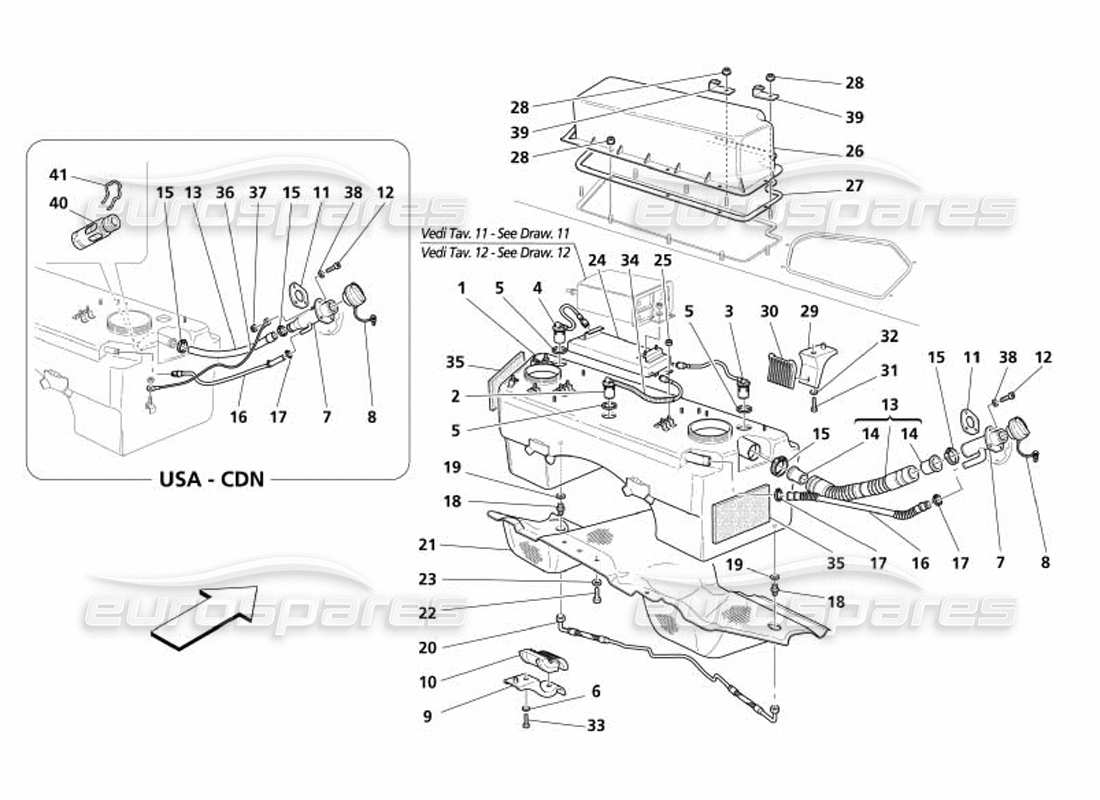

Maserati 4200 Spyder (2005) Fuel Tanks and Union Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 184288
FUEL TANK
Not for USA and CDN
from £1,414.36
from £1,414.36
# 001
MPN: 193834
FUEL TANK
Valid for USA and CDN
from £1,655.48
from £1,655.48
# 002
MPN: 184908
CENTRAL FLOAT VALVLE WHIT PIPE
from £343.35
from £343.35
# 003
MPN: 184349
RH FLOAT VALVE WITH PIPE
from £32.61
from £32.61
# 004
MPN: 184907
LH FLOAT VALVE WITH PIPE
from £35.28
from £35.28
# 005
MPN: 195049
GASKET FOR VALVE
from £2.40
from £2.40
This part replaces part number 169938
# 006
MPN: 12626224
WASHER
from £0.54
from £0.54
# 007
MPN: 201347
FUEL UNION
Valid for USA and CDN
from £653.93
from £653.93
This part replaces part number 194101
# 007
MPN: 201363
FUEL UNION
Not for USA and CDN
from £73.67
from £73.67
# 008
MPN: 190154
COMPLETE PLUG
from £175.09
from £175.09
This part replaces part number 186866 which we have in stock
# 009
MPN: 184298
FUEL TANK FIXING BRACKET
from £8.33
from £8.33
# 010
MPN: 186986
RUBBER REAR SPACER
from £4.23
from £4.23
# 011
MPN: 190141
GASKET FOR UNION
from £6.11
from £6.11
# 012
MPN: 14778017
SCREW
Valid for USA and CDN
from £1.59
from £1.59
# 012
MPN: 62926700
SCREW
Not for USA and CDN
from £0.71
from £0.71
# 013
MPN: 189733
UNION-TANK CONNECTING PIPE
Valid for USA and CDN
from £107.22
from £107.22
# 013
MPN: 191617
UNION-TANK CONNECTING PIPE
Not for USA and CDN
from £59.29
from £59.29
# 014
MPN: 191618
GASKET
Not for USA and CDN
from £31.32
from £31.32
# 015
MPN: 13000590
SCREW COLLAR
Valid for USA and CDN
from £0.47
from £0.47
# 015
MPN: 13000790
SCREW COLLAR
Not for USA and CDN
from £0.47
from £0.47
This part replaces part number 312420106
# 016
MPN: 190150
VAPOR RECYCLING PIPE
Valid for USA and CDN
from £23.50
from £23.50
# 016
MPN: 190164
COMPLETE VENT PIPE FROM TANK TO UNION
Not for USA and CDN
from £29.21
from £29.21
# 017
MPN: 13000390
SCREW COLLAR
Not for USA and CDN
from £0.47
from £0.47
This part replaces part number 13121170 - and 1 more. Click to view details
# 017
MPN: 13432070
COLLAR FOR SLEEVE
Valid for USA and CDN
from £0.53
from £0.53
This part replaces part number 13434670
# 018
MPN: 188548
NIPPLO
Not for USA and CDN
from £101.74
from £101.74
# 018
MPN: 193689
NIPPLO
Valid for USA and CDN
from £28.15
from £28.15
# 019
MPN: 675000691
GASKET
from £1.11
from £1.11
This part replaces part number 10257060 which we have in stock
# 020
MPN: 193688
TANK CONNECTING PIPE
from £145.61
from £145.61
# 021
MPN: 66065600
UNDERTANK HEAT SHIELD
from £81.14
from £81.14
# 022
MPN: 10902224
SCREW
from £0.49
from £0.49
# 023
MPN: 10523424
WASHER
from £0.47
from £0.47
# 024
MPN: 187466
DISAREATOR
Not for USA and CDN
from £69.64
from £69.64
# 024
MPN: 187467
DISAREATOR
Valid for USA and CDN
from £286.58
from £286.58
# 025
MPN: 12574211
NUT
from £0.71
from £0.71
This part replaces part number 128300060
# 026
MPN: 67239500
ANTIEVAPORATION DEVICE COVER
from £24.47
from £24.47
This part replaces part number 66360800 which we have in stock - and 1 more. Click to view details
# 027
MPN: 66360700
GASKET
from £28.15
from £28.15
# 028
MPN: 14059217
NUT
from £0.47
from £0.47
# 029
MPN: 184297
FUEL TANK FIXING BRACKET
from £8.12
from £8.12
# 030
MPN: 186985
RUBBER FRONT SPACER
from £4.23
from £4.23
# 031
MPN: 14307524
SCREW
from £0.62
from £0.62
# 032
MPN: 12626224
WASHER
from £0.54
from £0.54
# 033
MPN: 14307524
SCREW
from £0.62
from £0.62
# 034
MPN: 318720333
PIPE
Supplied in meters - (Minimum quantity 1m. or multiples)
from £5.28
from £5.28
# 035
MPN: 371530464
PROTECTION
from £23.72
from £23.72
# 036
MPN: 200649
GROUND CABLE
Valid for USA and CDN
from £5.54
from £5.54
This part replaces part number 194102
# 037
MPN: 14059214
NUT M6
Valid for USA and CDN
from £0.47
from £0.47
This part replaces part number 12578121
# 038
MPN: 12605374
WASHER
from £0.71
from £0.71
# 039
MPN: 179996
CONNECTOR FIXING BRACKET
from £2.93
from £2.93
# 040
MPN: 181929
FUEL INTERCEPTION VALVE
Valid for USA and CDN
from £153.95
from £153.95
# 041
MPN: 181930
CLIP
Valid for USA and CDN
from £10.31
from £10.31
