ferrari mondial 8 (1981) pedal board - clutch control (variants for rhd versions) parts diagram

042 - Pedal Board - Clutch Control (Variants for RHD Versions)

Ferrari Mondial 8 (1981) Pedal Board - Clutch Control (Variants for RHD Versions) Parts Diagram

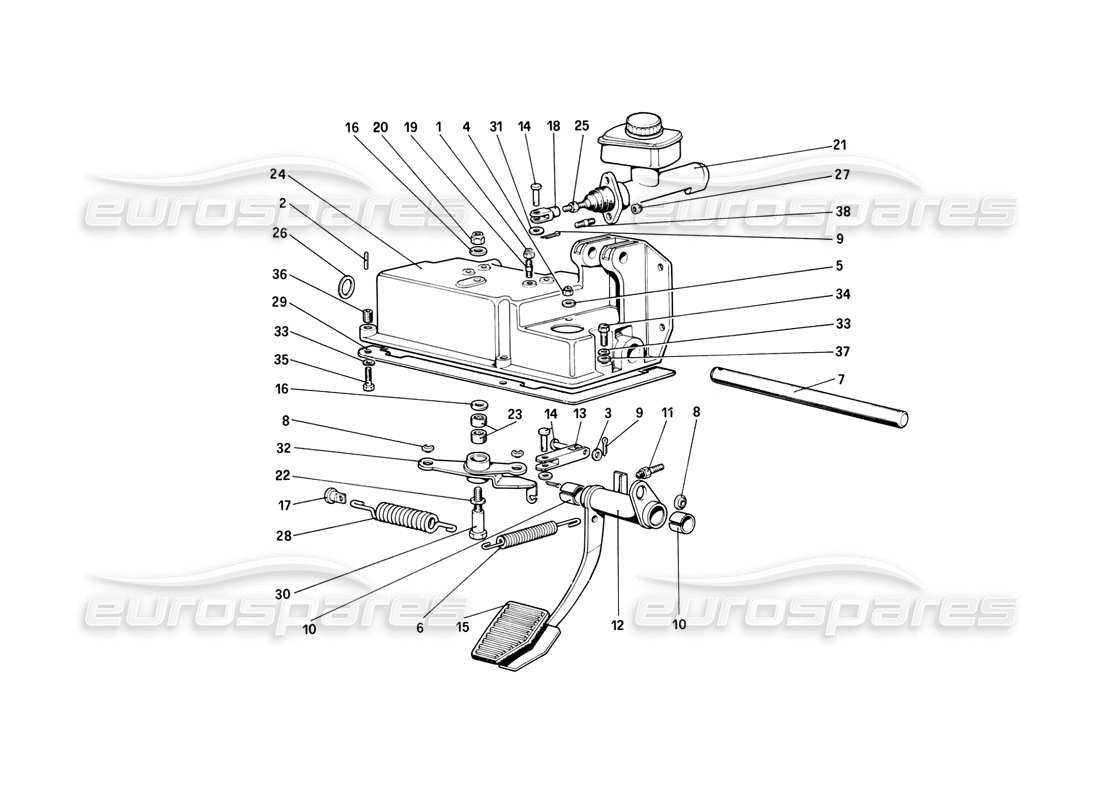

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Key
                                                                            Price
                                                                            # 001
                                                                            MPN: 12574121
                                                                            NUT
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 12574111 - and 2 more. Click to view details
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            # 002
                                                                            MPN: 13942870
                                                                            PIN
                                                                            from £0.47
                                                                            from £0.47
                                                                            COTTER Genuine Ferrari Part - New In stock
                                                                            # 003
                                                                            MPN: 10519624
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 10519601 - and 3 more. Click to view details
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            WASHER (10519624) Genuine Maserati Part - New In stock
                                                                            # 004
                                                                            MPN: 16100821
                                                                            NUT
                                                                            from £0.71
                                                                            from £0.71
                                                                            This part replaces part number 16100825 which we have in stock
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            HEX.NUT M8X6.5 (16100821) Genuine Maserati Part - New (to order)
                                                                            # 005
                                                                            MPN: 12601371
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            # 007
                                                                            MPN: 113831
                                                                            PIVOT SUPPORT
                                                                            from £63.92
                                                                            from £63.92
                                                                            PIN Genuine Ferrari Part - New (to order)
                                                                            PIN Genuine Ferrari Part - Used In stock
                                                                            # 008
                                                                            MPN: 109407
                                                                            SHODO SFERICO
                                                                            from £22.62
                                                                            from £22.62
                                                                            JOINT Genuine Ferrari Part - New In stock
                                                                            BALL JOINT D.8-16X5 (109407) Genuine Maserati Part - New (to order)
                                                                            # 009
                                                                            MPN: 10734201
                                                                            SPLIT PIN
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            # 010
                                                                            MPN: 103163
                                                                            BUSH
                                                                            from £2.95
                                                                            from £2.95
                                                                            BUSH Genuine Ferrari Part - New (to order)
                                                                            SELF-LUBRICATING BUSHING (103163) Genuine Maserati Part - New (to order)
                                                                            # 011
                                                                            MPN: 114825
                                                                            PUNTALINO D'ARRESTO
                                                                            from £38.43
                                                                            from £38.43
                                                                            PIN Genuine Ferrari Part - New In stock
                                                                            # 012
                                                                            MPN: 113826
                                                                            PEDALE FRIZIONE
                                                                            from £218.14
                                                                            from £218.14
                                                                            CLUTCH PEDAL Genuine Ferrari Part - New (to order)
                                                                            # 013
                                                                            MPN: 112172
                                                                            FORK
                                                                            from £99.03
                                                                            from £99.03
                                                                            CLUTCH PEDAL FORK Genuine Ferrari Part - New In stock
                                                                            # 014
                                                                            MPN: 10050810
                                                                            PIVOT
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            # 015
                                                                            MPN: 106949
                                                                            GOMMINO COPRIPEDALE
                                                                            from £18.34
                                                                            from £18.34
                                                                            PEDAL RUBBER Genuine Ferrari Part - New In stock
                                                                            # 016
                                                                            MPN: 113500
                                                                            WASHER
                                                                            from £10.25
                                                                            from £10.25
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            # 017
                                                                            MPN: 114828
                                                                            PIVOT SPRING
                                                                            from £21.88
                                                                            from £21.88
                                                                            PIN Genuine Ferrari Part - New In stock
                                                                            PIN Genuine Ferrari Part - Used In stock
                                                                            # 018
                                                                            MPN: 10007871
                                                                            FORK
                                                                            from £5.83
                                                                            from £5.83
                                                                            FORK Genuine Ferrari Part - New In stock
                                                                            FORK Genuine Ferrari Part - Used In stock
                                                                            # 019
                                                                            MPN: 11000821
                                                                            THREADED STUD
                                                                            from £0.71
                                                                            from £0.71
                                                                            STUD Genuine Ferrari Part - New (to order)
                                                                            # 020
                                                                            MPN: 148020
                                                                            SELF LOCKING NUT
                                                                            from £2.57
                                                                            from £2.57
                                                                            This part replaces part number 102825 - and 3 more. Click to view details
                                                                            NUT Genuine Ferrari Part - New In stock
                                                                            # 021
                                                                            MPN: 116093
                                                                            POMPA COMANDO IDRAULICO FRIZIONE
                                                                            from £207.80
                                                                            from £207.80
                                                                            CLUTCH MASTER CYLINDER (116093) Eurospares Approved Part - New In stock
                                                                            CLUTCH MASTER CYLINDER Genuine Ferrari Part - New (to order)
                                                                            # 022
                                                                            MPN: 112126
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            # 023
                                                                            MPN: 115430
                                                                            ASTUCCIO A RULLINI
                                                                            from £12.60
                                                                            from £12.60
                                                                            ROLLER BEARING Genuine Ferrari Part - New (to order)
                                                                            # 024
                                                                            MPN: 113830
                                                                            SUPPORT
                                                                            from £646.07
                                                                            from £646.07
                                                                            PEDAL SUPPORT HOUSING RHD Genuine Ferrari Part - New (to order)
                                                                            PEDAL SUPPORT HOUSING RHD Genuine Ferrari Part - Used In stock
                                                                            Complete
                                                                            # 025
                                                                            MPN: 16102311
                                                                            LOCKNUT
                                                                            from £0.43
                                                                            from £0.43
                                                                            This part replaces part number 16102315
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            Genuine Maserati Part (no longer available to order)
                                                                            NUT FOR RUBBER PAD ON TRU (16102311) Genuine Maserati Part - Used In stock
                                                                            # 026
                                                                            MPN: 106083
                                                                            WASHER
                                                                            Di eventuale montaggio
                                                                            from £0.71
                                                                            from £0.71
                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                            WASHER -TH. 1MM- (106083) Genuine Maserati Part - New (to order)
                                                                            # 026
                                                                            MPN: 113833
                                                                            IDEM SPESSORE MM. 1,1
                                                                            Di eventuale montaggio
                                                                            from £1.91
                                                                            from £1.91
                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                            WASHER (113833) Genuine Maserati Part - New (to order)
                                                                            # 026
                                                                            MPN: 113834
                                                                            IDEM SPESSORE MM. 1,2
                                                                            Di eventuale montaggio
                                                                            from £2.13
                                                                            from £2.13
                                                                            ROSETTA TRANC. D.20-30X1,2 Genuine Ferrari Part - New (to order)
                                                                            WASHER (113834) Genuine Maserati Part - New (to order)
                                                                            # 026
                                                                            MPN: 113835
                                                                            IDEM SPESSORE MM. 1,3
                                                                            Di eventuale montaggio
                                                                            from £1.91
                                                                            from £1.91
                                                                            WASHER Genuine Ferrari Part - New (to order)
                                                                            WASHER (113835) Genuine Maserati Part - New (to order)
                                                                            # 026
                                                                            MPN: 113836
                                                                            IDEM SPESSORE MM. 1,4
                                                                            Di eventuale montaggio
                                                                            from £2.39
                                                                            from £2.39
                                                                            WASHER 1.4MM Genuine Ferrari Part - New (to order)
                                                                            WASHER (113836) Genuine Maserati Part - New (to order)
                                                                            # 027
                                                                            MPN: 104030
                                                                            SELF LOCKING NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 16104125
                                                                            NUT Genuine Ferrari Part - New In stock
                                                                            DADO E NYLON STOP M 8X9,5 (104030) Genuine Maserati Part - New (to order)
                                                                            # 029
                                                                            MPN: 112151
                                                                            GASKET
                                                                            from £25.71
                                                                            from £25.71
                                                                            GASKET Genuine Ferrari Part - New (to order)
                                                                            # 030
                                                                            MPN: 114830
                                                                            PIVOT
                                                                            from £6.12
                                                                            from £6.12
                                                                            PIN Genuine Ferrari Part - New In stock
                                                                            PIN Genuine Ferrari Part - Used In stock
                                                                            # 031
                                                                            MPN: 12642701
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12642724
                                                                            WASHER Genuine Ferrari Part - New In stock
                                                                            SPLIT WASHER D.2 8.45-12X 1 (12642701) Genuine Maserati Part - New (to order)
                                                                            # 032
                                                                            MPN: 116531
                                                                            LEVER
                                                                            from £251.90
                                                                            from £251.90
                                                                            LEVER Genuine Ferrari Part - New In stock
                                                                            # 033
                                                                            MPN: 106852
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 10516670 - and 2 more. Click to view details
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            # 034
                                                                            MPN: 16136021
                                                                            SCREW
                                                                            from £0.74
                                                                            from £0.74
                                                                            SCREW Genuine Ferrari Part - New In stock
                                                                            # 035
                                                                            MPN: 16043421
                                                                            SCREW
                                                                            from £2.78
                                                                            from £2.78
                                                                            This part replaces part number 95524
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            HEX HEAD SCREW M 8X20 (16043421) Genuine Maserati Part - New In stock
                                                                            # 036
                                                                            MPN: 105510
                                                                            HELI-COIL
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            # 037
                                                                            MPN: 10519620
                                                                            WASHER
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Ferrari Part (no longer available to order)
                                                                            Genuine Maserati Part (no longer available to order)
                                                                            # 038
                                                                            MPN: 13543324
                                                                            THREADED STUD
                                                                            from £0.84
                                                                            from £0.84
                                                                            This part replaces part number 13543321
                                                                            STUD Genuine Ferrari Part - New In stock
                                                                            PRIGIONIERO M 8X16 GAMBO 2 (13543324) Genuine Maserati Part - New (to order)
