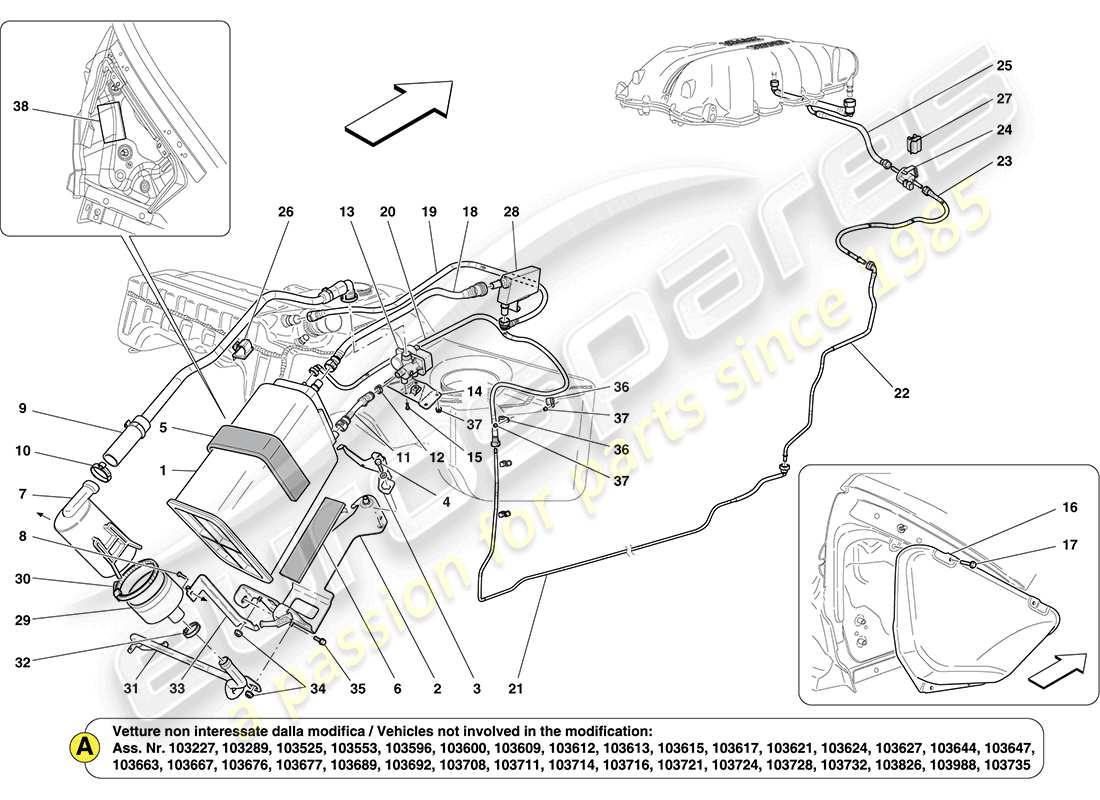

0009 - evaporative emissions control system
Ferrari California (USA) EVAPORATIVE EMISSIONS CONTROL SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 220074
FUEL VAPOUR FILTER
from £62.88
from £62.88
# 002
MPN: 253150
CARBON CANISTER BRACKET
from £183.19
from £183.19
# 003
MPN: 242634
BRACKET
from £45.28
from £45.28
# 004
MPN: 16285127
SCREW
from £0.47
from £0.47
# 005
MPN: 225354
UPPER RUBBER SPACER
from £1.42
from £1.42
# 006
MPN: 217156
RUBBER SHIM
from £0.54
from £0.54
# 007
MPN: 183221
DIAGNOSTIC PUMP FILTER
from £6.19
from £6.19
# 008
MPN: 15958701
SCREW
from £0.47
from £0.47
# 009
MPN: 253148
PIPE FROM OBD PUMP TO FILTER
from £168.94
from £168.94
# 010
MPN: 13432670
COLLAR
from £3.55
from £3.55
# 010
MPN: 13433370
COLLAR FOR HOSE UNION
-No longer supplied- -Replaced by 13432670-
from £0.47
from £0.47
This part replaces part number 247921
# 011
MPN: 241749
PIPE FROM CANISTER TO OBD PUMP
-No longer supplied- -Replaced by 248970-
Supersession
Supersession
# 011
MPN: 248970
PIPE FROM CANISTER TO OBD PUMP
from £15.92
from £15.92
This part replaces part number 241749 - and 2 more. Click to view details
# 012
MPN: 13432870
COLLAR
from £5.88
from £5.88
This part replaces part number 164015
# 013
MPN: 202968
DIAGNOSTIC PUMP
-No longer supplied- -Replaced by 251288-
from £54.60
from £54.60
# 013
MPN: 251288
DIAGNOSTIC PUMP
from £151.25
from £151.25
This part replaces part number 202968 which we have in stock
# 014
MPN: 241750
DIAGNOSTIC PUMP BRACKET
from £4.81
from £4.81
# 015
MPN: 15958701
SCREW
from £0.47
from £0.47
# 016
MPN: 81963200
VAPOR FILTER COVER
from £22.32
from £22.32
# 017
MPN: 16284914
SCREW
-No longer supplied- -Replaced by 16284934-
from £0.47
from £0.47
# 017
MPN: 16284934
SCREW
from £0.47
from £0.47
This part replaces part number 16284927
# 018
MPN: 253530
PIPE FROM DISAREATOR TO CANISTER
-No longer supplied- -Replaced by 254492-
Supersession
Supersession
This part replaces part number 241738
# 018
MPN: 254492
PIPE FROM DISAREATOR TO CANISTER
from £18.01
from £18.01
This part replaces part number 253530 - and 1 more. Click to view details
# 019
MPN: 253529
PIPE FROM TANK TO SEPARATOR
-Applicable up to Ass. No. 103178-
from £34.15
from £34.15
This part replaces part number 241086
# 019
MPN: 279103
PIPE FROM TANK TO SEPARATOR
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £337.92
from £337.92
# 020
MPN: 241748
PIPE FROM CANISTER TO UNDERFLOOR PIPE
-No longer supplied- -Replaced by 248966-
Supersession
Supersession
# 020
MPN: 248966
PIPE FROM CANISTER TO UNDERFLOOR PIPE
-Applicable until depletion-
Supersession
Supersession
This part replaces part number 241748
# 020
MPN: 294673
PIPE FROM CANISTER TO UNDERBODY PIPE
-Applicable after depletion of 248966-
from £41.01
from £41.01
This part replaces part number 248966
# 021
MPN: 244448
UNDERFLOOR PIPE
-No longer supplied- -Replaced by 248965-
Supersession
Supersession
# 021
MPN: 248965
UNDERFLOOR PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for CINA, USA, CDN, J, GD, USA LIGHT- -Applicable up to Ass. No. 89388-
from £56.43
from £56.43
This part replaces part number 244448
# 021
MPN: 248965
UNDERFLOOR PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for CINA, USA, CDN, J, USA LIGHT- -Applicable up to Ass. No. 90608-
from £56.43
from £56.43
This part replaces part number 244448
# 021
MPN: 248965
UNDERFLOOR PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable up to Ass. No. 91552-
from £56.43
from £56.43
This part replaces part number 244448
# 021
MPN: 248965
UNDERFLOOR PIPE
-Applicable for Mechanical gearbox-
from £56.43
from £56.43
This part replaces part number 244448
# 021
MPN: 262057
UNDERFLOOR PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for CINA, USA, CDN, J, GD, USA LIGHT- -Applicable from Ass. No. 89389 up to Ass. No. 103178-
from £30.82
from £30.82
# 021
MPN: 262057
UNDERFLOOR PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for CINA, USA, CDN, J, USA LIGHT- -Applicable from Ass. No. 90609-
from £30.82
from £30.82
# 021
MPN: 262057
UNDERFLOOR PIPE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable from Ass. No. 91553-
from £30.82
from £30.82
# 021
MPN: 278677
UNDERBODY PIPE
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £24.55
from £24.55
# 022
MPN: 244381
PIPE FROM UNDERFLOOR TO CONNECTION
-No longer supplied- -Replaced by 248964-
Supersession
Supersession
# 022
MPN: 248964
PIPE FROM UNDERFLOOR TO CONNECTION
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for CINA, USA, CDN, J, GD, USA LIGHT- -Applicable up to Ass. No. 89388-
from £37.76
from £37.76
This part replaces part number 244381
# 022
MPN: 248964
PIPE FROM UNDERFLOOR TO CONNECTION
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for CINA, USA, CDN, J, USA LIGHT- -Applicable up to Ass. No. 90608-
from £37.76
from £37.76
This part replaces part number 244381
# 022
MPN: 248964
PIPE FROM UNDERFLOOR TO CONNECTION
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable up to Ass. No. 91552-
from £37.76
from £37.76
This part replaces part number 244381
# 022
MPN: 248964
PIPE FROM UNDERFLOOR TO CONNECTION
-Applicable for Mechanical gearbox- -No longer supplied- -Replaced by 259533-
from £37.76
from £37.76
This part replaces part number 244381
# 022
MPN: 259533
PIPE FROM UNDERFLOOR TO CONNECTION
-Applicable for Mechanical gearbox-
from £20.78
from £20.78
# 022
MPN: 262059
PIPE FROM UNDERFLOOR TO CONNECTION
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for CINA, USA, CDN, J, GD, USA LIGHT- -Applicable from Ass. No. 89389 up to Ass. No. 103178-
from £28.75
from £28.75
# 022
MPN: 262059
PIPE FROM UNDERFLOOR TO CONNECTION
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for CINA, USA, CDN, J, USA LIGHT- -Applicable from Ass. No. 90609-
from £28.75
from £28.75
# 022
MPN: 262059
PIPE FROM UNDERFLOOR TO CONNECTION
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable from Ass. No. 91553-
from £28.75
from £28.75
# 022
MPN: 280876
PIPE FROM UNDERBODY TO JUNCTION
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £32.99
from £32.99
# 023
MPN: 246676
PIPE FROM JOINT TO FLUSH VALVE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for CINA, USA, CDN, J, GD, USA LIGHT- -Applicable up to Ass. No. 89388-
from £36.58
from £36.58
# 023
MPN: 246676
PIPE FROM JOINT TO FLUSH VALVE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for CINA, USA, CDN, J, USA LIGHT- -Applicable up to Ass. No. 90608-
from £36.58
from £36.58
# 023
MPN: 246676
PIPE FROM JOINT TO FLUSH VALVE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable up to Ass. No. 91552-
from £36.58
from £36.58
# 023
MPN: 246676
PIPE FROM JOINT TO FLUSH VALVE
-Applicable for Mechanical gearbox- -No longer supplied- -Replaced by 259534-
from £36.58
from £36.58
# 023
MPN: 259534
PIPE FROM JOINT TO FLUSH VALVE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Not for CINA, USA, CDN, J, GD, USA LIGHT- -Applicable from Ass. No. 89389 up to Ass. No. 103178-
from £36.24
from £36.24
# 023
MPN: 259534
PIPE FROM JOINT TO FLUSH VALVE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for CINA, USA, CDN, J, USA LIGHT- -Applicable from Ass. No. 90609-
from £36.24
from £36.24
# 023
MPN: 259534
PIPE FROM JOINT TO FLUSH VALVE
-Applicable for DCT-F1 gearbox (Not for mechanical gearbox)- -Applicable for GD- -Applicable from Ass. No. 91553-
from £36.24
from £36.24
# 023
MPN: 259534
PIPE FROM JOINT TO FLUSH VALVE
-Applicable for Mechanical gearbox-
from £36.24
from £36.24
# 023
MPN: 280945
PIPE FROM JUNCTION TO FLUSH VALVE
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £43.95
from £43.95
# 024
MPN: 254425
FLUSH VALVE
from £14.74
from £14.74
This part replaces part number 237683 - and 3 more. Click to view details
# 025
MPN: 254161
FLUSH VALVE PIPE
-No longer supplied- -Replaced by 258429-
from £68.48
from £68.48
This part replaces part number 243536
# 025
MPN: 258429
FLUSH VALVE PIPE
-Applicable up to Ass. No. 103178-
from £82.79
from £82.79
This part replaces part number 254161 which we have in stock
# 025
MPN: 279672
FLUSH VALVE PIPE
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £88.70
from £88.70
# 026
MPN: 192314
CLIP
from £0.47
from £0.47
# 027
MPN: 254427
CLIP
from £0.47
from £0.47
# 028
MPN: 253583
DISAREATOR
from £67.77
from £67.77
# 029
MPN: 253152
AIR FILTER HEADPHONE
from £119.43
from £119.43
# 030
MPN: 13000890
SCREW COLLAR
from £0.64
from £0.64
This part replaces part number 12173290 - and 2 more. Click to view details
# 031
MPN: 253155
AIR FILTER INTAKE PIPE
-Applicable up to Ass. No. 103178-
from £60.32
from £60.32
# 031
MPN: 283323
AIR FILTER INTAKE PIPE
-See note A for Ass. Numbers of vehicles not affected by modification- -Applicable from Ass. No. 103179-
from £33.90
from £33.90
# 032
MPN: 13430770
COLLAR
from £0.47
from £0.47
# 033
MPN: 253157
BRACKET
from £40.65
from £40.65
# 034
MPN: 14058319
NUT
from £0.53
from £0.53
This part replaces part number 139951 - and 1 more. Click to view details
# 035
MPN: 16287024
SCREW
from £0.47
from £0.47
# 036
MPN: 10441490
BRACKET WITH SHEATH
from £0.47
from £0.47
# 037
MPN: 14058419
NUT
from £0.47
from £0.47
# 038
MPN: 255515
PLUG
from £1.26
from £1.26
This part replaces part number 84069800 - and 1 more. Click to view details
-part-diagram-0010.webp "FERRARI CALIFORNIA (USA) RIGHT HAND INJECTION SYSTEM - IGNITION PARTS DIAGRAM")
-part-diagram-0011.webp "FERRARI CALIFORNIA (USA) LEFT HAND INJECTION SYSTEM - IGNITION PARTS DIAGRAM")
-part-diagram-0012.webp "FERRARI CALIFORNIA (USA) SECONDARY AIR SYSTEM PARTS DIAGRAM")
-part-diagram-0013.webp "FERRARI CALIFORNIA (USA) INTAKE MANIFOLD AND THROTTLE BODY PARTS DIAGRAM")
-part-diagram-0014.webp "FERRARI CALIFORNIA (USA) AIR FILTER, AIR INTAKE AND DUCTS PARTS DIAGRAM")
-part-diagram-0015.webp "FERRARI CALIFORNIA (USA) PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS PARTS DIAGRAM")
-part-diagram-0016.webp "FERRARI CALIFORNIA (USA) SILENCERS PARTS DIAGRAM")
-part-diagram-0017.webp "FERRARI CALIFORNIA (USA) HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-0018.webp "FERRARI CALIFORNIA (USA) VAPOUR OIL RECOVERY SYSTEM PARTS DIAGRAM")
-part-diagram-0019.webp "FERRARI CALIFORNIA (USA) LUBRICATION: CIRCUIT AND PICKUP PARTS DIAGRAM")
-part-diagram-0020.webp "FERRARI CALIFORNIA (USA) LUBRICATION: PUMP AND FILTER PARTS DIAGRAM")
-part-diagram-0021.webp "FERRARI CALIFORNIA (USA) COOLING: WATER PUMP PARTS DIAGRAM")
-part-diagram-0022.webp "FERRARI CALIFORNIA (USA) COOLING: RADIATORS AND AIR DUCTS PARTS DIAGRAM")
-part-diagram-0023.webp "FERRARI CALIFORNIA (USA) COOLING: HEADER TANK AND PIPES PARTS DIAGRAM")
-part-diagram-0024.webp "FERRARI CALIFORNIA (USA) TRANSMISSION HOUSING PARTS DIAGRAM")
-part-diagram-0025.webp "FERRARI CALIFORNIA (USA) EXTERNAL GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-0026.webp "FERRARI CALIFORNIA (USA) GEARBOX HOUSING PARTS DIAGRAM")
-part-diagram-0027.webp "FERRARI CALIFORNIA (USA) GEARBOX REPAIR KIT PARTS DIAGRAM")
-part-diagram-0028.webp "FERRARI CALIFORNIA (USA) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0029.webp "FERRARI CALIFORNIA (USA) GEARBOX OIL LUBRICATION AND COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-0030.webp "FERRARI CALIFORNIA (USA) GEARBOX LUBRICATION AND COOLING CIRCUIT PARTS DIAGRAM")
-part-diagram-0031.webp "FERRARI CALIFORNIA (USA) MANUAL DCT GEARBOX LOCK RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-0032.webp "FERRARI CALIFORNIA (USA) TRANSMISSION PIPE PARTS DIAGRAM")
-part-diagram-0033.webp "FERRARI CALIFORNIA (USA) DIFFERENTIAL AND REAR AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-0034.webp "FERRARI CALIFORNIA (USA) POWER STEERING SYSTEM PARTS DIAGRAM")
-part-diagram-0035.webp "FERRARI CALIFORNIA (USA) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0036.webp "FERRARI CALIFORNIA (USA) COMPLETE PEDAL BOARD ASSEMBLY PARTS DIAGRAM")
-part-diagram-0037.webp "FERRARI CALIFORNIA (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0038.webp "FERRARI CALIFORNIA (USA) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-0039.webp "FERRARI CALIFORNIA (USA) FRONT WHEEL BRAKE SYSTEM COMPONENTS PARTS DIAGRAM")
-part-diagram-0040.webp "FERRARI CALIFORNIA (USA) REAR WHEEL BRAKE SYSTEM COMPONENTS PARTS DIAGRAM")
-part-diagram-0041.webp "FERRARI CALIFORNIA (USA) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-0042.webp "FERRARI CALIFORNIA (USA) STEERING BOX AND POWER STEERING PUMP PARTS DIAGRAM")
-part-diagram-0043.webp "FERRARI CALIFORNIA (USA) STEERING COLUMN ASSEMBLY AND STEERING WHEEL PARTS DIAGRAM")
-part-diagram-0044.webp "FERRARI CALIFORNIA (USA) FRONT SHOCK ABSORBER COMPONENTS PARTS DIAGRAM")
-part-diagram-0045.webp "FERRARI CALIFORNIA (USA) FRONT SUSPENSION PARTS DIAGRAM")
-part-diagram-0046.webp "FERRARI CALIFORNIA (USA) REAR SHOCK ABSORBER COMPONENTS PARTS DIAGRAM")
-part-diagram-0047.webp "FERRARI CALIFORNIA (USA) REAR SUSPENSION PARTS DIAGRAM")
-part-diagram-0048.webp "FERRARI CALIFORNIA (USA) WHEELS AND TYRES PARTS DIAGRAM")
-part-diagram-0049.webp "FERRARI CALIFORNIA (USA) TYRE PRESSURE MONITORING SYSTEM PARTS DIAGRAM")
-part-diagram-0050.webp "FERRARI CALIFORNIA (USA) BATTERY PARTS DIAGRAM")
-part-diagram-0051.webp "FERRARI CALIFORNIA (USA) ALTERNATOR, STARTER MOTOR AND AC COMPRESSOR PARTS DIAGRAM")
-part-diagram-0052.webp "FERRARI CALIFORNIA (USA) AC UNIT: COMPONENTS IN ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0053.webp "FERRARI CALIFORNIA (USA) AC UNIT: COMPONENTS IN ENGINE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0054.webp "FERRARI CALIFORNIA (USA) AC UNIT: DASHBOARD COMPONENTS PARTS DIAGRAM")
-part-diagram-0055.webp "FERRARI CALIFORNIA (USA) AC UNIT: DISTRIBUTION PARTS DIAGRAM")
-part-diagram-0056.webp "FERRARI CALIFORNIA (USA) STANDARD ACCESSORIES PARTS DIAGRAM")
-part-diagram-0100.webp "FERRARI CALIFORNIA (USA) BODYSHELL AND EXTERNAL FRONT TRIM PARTS DIAGRAM")
-part-diagram-0101.webp "FERRARI CALIFORNIA (USA) FRONT BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0102.webp "FERRARI CALIFORNIA (USA) CENTRE BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0103.webp "FERRARI CALIFORNIA (USA) CENTRE BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0104.webp "FERRARI CALIFORNIA (USA) REAR BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0105.webp "FERRARI CALIFORNIA (USA) REAR BODYSHELL AND EXTERNAL TRIM PARTS DIAGRAM")
-part-diagram-0106.webp "FERRARI CALIFORNIA (USA) FRONT STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0107.webp "FERRARI CALIFORNIA (USA) FRONT STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0108.webp "FERRARI CALIFORNIA (USA) CENTRE STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0109.webp "FERRARI CALIFORNIA (USA) CENTRE STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0110.webp "FERRARI CALIFORNIA (USA) REAR STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0111.webp "FERRARI CALIFORNIA (USA) REAR STRUCTURES AND CHASSIS BOX SECTIONS PARTS DIAGRAM")
-part-diagram-0112.webp "FERRARI CALIFORNIA (USA) UNDERBODY SHIELDS AND FLAT UNDERTRAY SECTIONS PARTS DIAGRAM")
-part-diagram-0113.webp "FERRARI CALIFORNIA (USA) WHEELHOUSES AND DOORS PARTS DIAGRAM")
-part-diagram-0114.webp "FERRARI CALIFORNIA (USA) FRONT BUMPER PARTS DIAGRAM")
-part-diagram-0115.webp "FERRARI CALIFORNIA (USA) REAR BUMPER PARTS DIAGRAM")
-part-diagram-0116.webp "FERRARI CALIFORNIA (USA) SOUNDPROOFING IN VEHICLE PARTS DIAGRAM")
-part-diagram-0117.webp "FERRARI CALIFORNIA (USA) HEAT SHIELDS IN VEHICLE PARTS DIAGRAM")
-part-diagram-0118.webp "FERRARI CALIFORNIA (USA) PASSENGER COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0119.webp "FERRARI CALIFORNIA (USA) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0120.webp "FERRARI CALIFORNIA (USA) LUGGAGE COMPARTMENT MATS PARTS DIAGRAM")
-part-diagram-0121.webp "FERRARI CALIFORNIA (USA) HEADLINER TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0122.webp "FERRARI CALIFORNIA (USA) ELECTRIC ROOF: ROLLBAR AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0123.webp "FERRARI CALIFORNIA (USA) ELECTRIC ROOF: TRIM PARTS DIAGRAM")
-part-diagram-0124.webp "FERRARI CALIFORNIA (USA) ELECTRIC ROOF: KINEMATICS PARTS DIAGRAM")
-part-diagram-0125.webp "FERRARI CALIFORNIA (USA) ELECTRIC ROOF: STRUCTURE PARTS DIAGRAM")
-part-diagram-0126.webp "FERRARI CALIFORNIA (USA) ELECTRIC ROOF: HYDRAULICS PARTS DIAGRAM")
-part-diagram-0127.webp "FERRARI CALIFORNIA (USA) FRONT LID PARTS DIAGRAM")
-part-diagram-0128.webp "FERRARI CALIFORNIA (USA) REAR LID PARTS DIAGRAM")
-part-diagram-0129.webp "FERRARI CALIFORNIA (USA) FUEL FILLER FLAP AND CONTROLS PARTS DIAGRAM")
-part-diagram-0130.webp "FERRARI CALIFORNIA (USA) FRONT DOORS: TRIM PARTS DIAGRAM")
-part-diagram-0131.webp "FERRARI CALIFORNIA (USA) FRONT DOORS: MECHANISMS PARTS DIAGRAM")
-part-diagram-0132.webp "FERRARI CALIFORNIA (USA) POWER WINDOWS AND REAR VIEW MIRRORS PARTS DIAGRAM")
-part-diagram-0133.webp "FERRARI CALIFORNIA (USA) SCREENS, WINDOWS AND SEALS PARTS DIAGRAM")
-part-diagram-0134.webp "FERRARI CALIFORNIA (USA) FRONT SEAT - SEAT BELTS PARTS DIAGRAM")
-part-diagram-0135.webp "FERRARI CALIFORNIA (USA) FRONT SEAT - TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-0136.webp "FERRARI CALIFORNIA (USA) FRONT SEAT - RACING PARTS DIAGRAM")
-part-diagram-0137.webp "FERRARI CALIFORNIA (USA) CENTRE TUNNEL AND ACCESSORY UNIT PARTS DIAGRAM")
-part-diagram-0138.webp "FERRARI CALIFORNIA (USA) INTERIOR TRIM PARTS DIAGRAM")
-part-diagram-0139.webp "FERRARI CALIFORNIA (USA) DASHBOARD PARTS DIAGRAM")
-part-diagram-0140.webp "FERRARI CALIFORNIA (USA) GLOVE COMPARTMENT PARTS DIAGRAM")
-part-diagram-0141.webp "FERRARI CALIFORNIA (USA) AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-0142.webp "FERRARI CALIFORNIA (USA) AIRBAG SYSTEM PARTS DIAGRAM")
-part-diagram-0143.webp "FERRARI CALIFORNIA (USA) INTERNAL PASSENGER COMPARTMENT SERVICES PARTS DIAGRAM")
-part-diagram-0144.webp "FERRARI CALIFORNIA (USA) HEADLIGHTS PARTS DIAGRAM")
-part-diagram-0145.webp "FERRARI CALIFORNIA (USA) TAILLIGHTS PARTS DIAGRAM")
-part-diagram-0146.webp "FERRARI CALIFORNIA (USA) SHIELDS, TRIM AND COVERS PARTS DIAGRAM")
-part-diagram-0147.webp "FERRARI CALIFORNIA (USA) SHIELDS, TRIM AND COVERS PARTS DIAGRAM")
-part-diagram-0148.webp "FERRARI CALIFORNIA (USA) MAIN WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-0149.webp "FERRARI CALIFORNIA (USA) VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM PARTS DIAGRAM")
-part-diagram-0150.webp "FERRARI CALIFORNIA (USA) ELECTRONIC MANAGEMENT (SUSPENSION) PARTS DIAGRAM")
-part-diagram-0151.webp "FERRARI CALIFORNIA (USA) PASSENGER COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0152.webp "FERRARI CALIFORNIA (USA) LUGGAGE COMPARTMENT ECUS PARTS DIAGRAM")
-part-diagram-0153.webp "FERRARI CALIFORNIA (USA) ALARM AND IMMOBILIZER SYSTEM PARTS DIAGRAM")
-part-diagram-0154.webp "FERRARI CALIFORNIA (USA) INFOTAINMENT SYSTEM PARTS DIAGRAM")
-part-diagram-0155.webp "FERRARI CALIFORNIA (USA) AUDIO SPEAKER SYSTEM PARTS DIAGRAM")
-part-diagram-0156.webp "FERRARI CALIFORNIA (USA) WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-0157.webp "FERRARI CALIFORNIA (USA) ADHESIVE LABELS AND PLAQUES PARTS DIAGRAM")
-part-diagram-0999.webp "FERRARI CALIFORNIA (USA) COLOUR CODES PARTS DIAGRAM")
-part-diagram-0000.webp "FERRARI CALIFORNIA (USA) SPARE ASSEMBLY UNITS PARTS DIAGRAM")
-part-diagram-0001.webp "FERRARI CALIFORNIA (USA) CRANKCASE PARTS DIAGRAM")
-part-diagram-0002.webp "FERRARI CALIFORNIA (USA) CRANKSHAFT, CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-0003.webp "FERRARI CALIFORNIA (USA) RIGHT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0004.webp "FERRARI CALIFORNIA (USA) LEFT HAND CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-0005.webp "FERRARI CALIFORNIA (USA) TIMING SYSTEM - CAMSHAFTS AND VALVES PARTS DIAGRAM")
-part-diagram-0006.webp "FERRARI CALIFORNIA (USA) TIMING SYSTEM - DRIVE PARTS DIAGRAM")
-part-diagram-0007.webp "FERRARI CALIFORNIA (USA) FUEL PUMP AND CONNECTOR PIPES PARTS DIAGRAM")
-part-diagram-0008.webp "FERRARI CALIFORNIA (USA) FUEL TANK PARTS DIAGRAM")
