106 - FRONT BUMPER

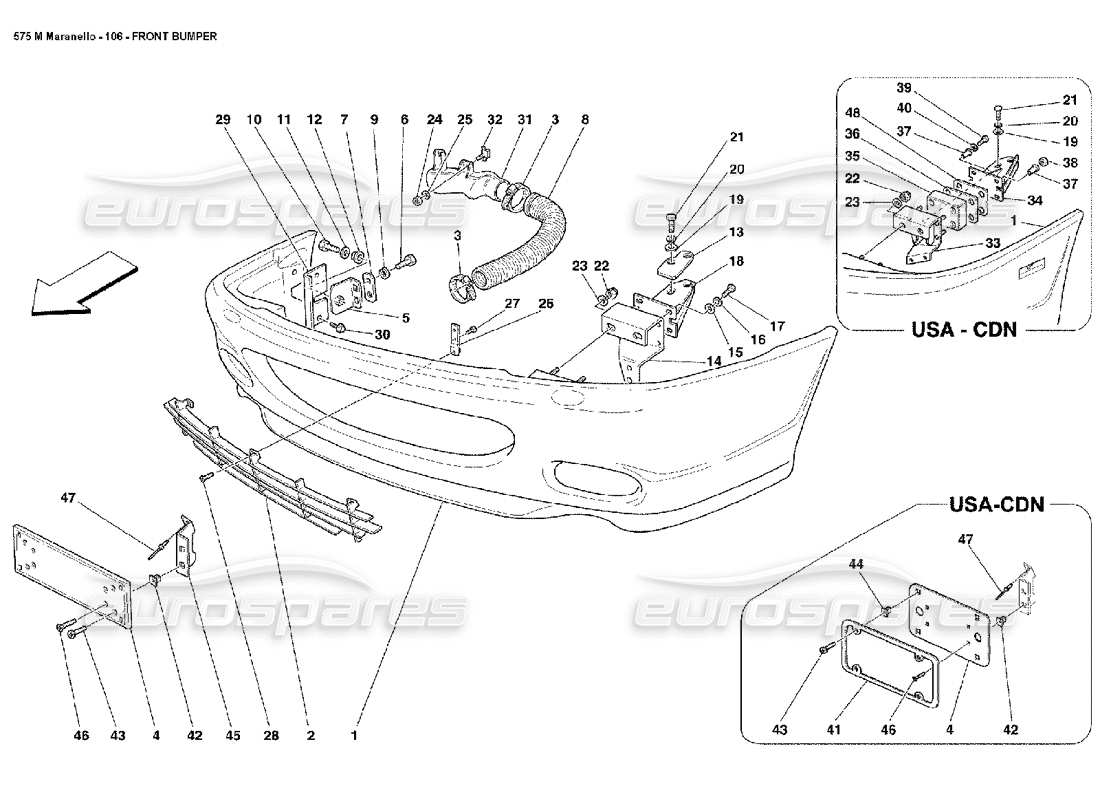

Ferrari 575M Maranello Front Bumper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66082010

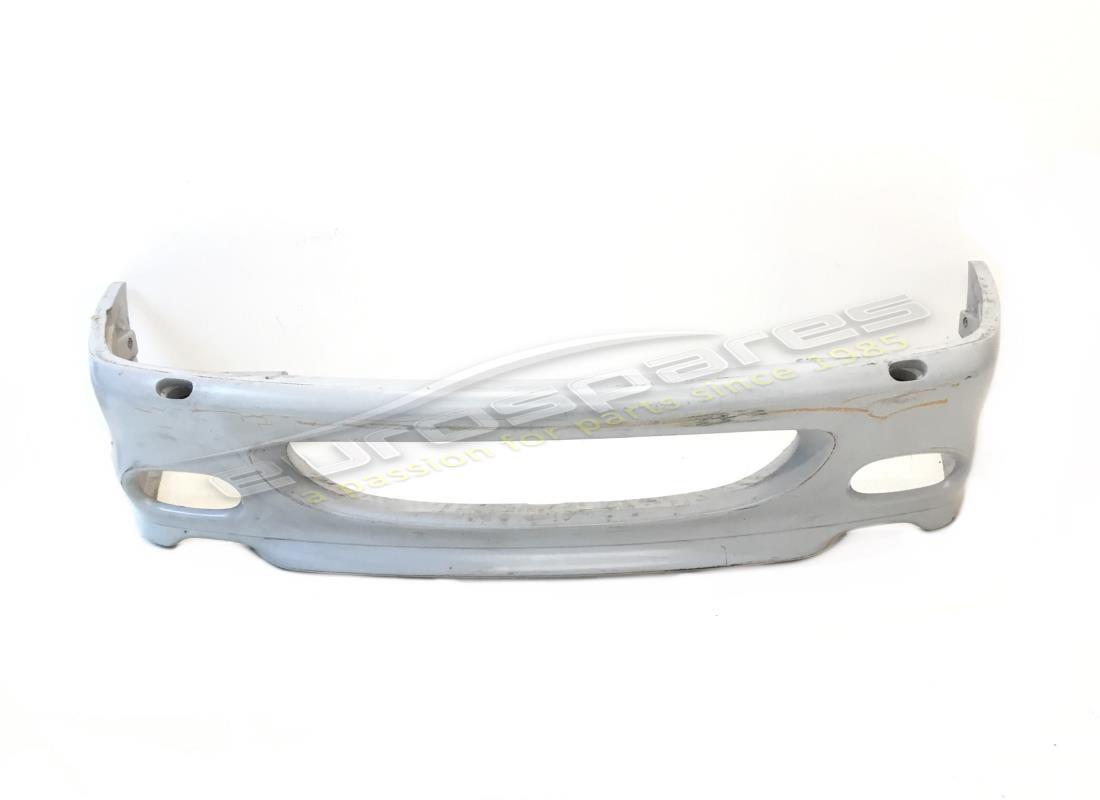

COMPLETE FRONT BUMPER
- Not for USA and CDN
from £2,724.75
from £2,724.75
This part replaces part number 69272510 - and 2 more. Click to view details
# 001
MPN: 66407510
COMPLETE FRONT BUMPER
- Valid for USA
from £5,344.90
from £5,344.90
This part replaces part number 69272610
# 001
MPN: 66615210
COMPLETE FRONT BUMPER
- Valid for CDN
from £5,759.70
from £5,759.70
This part replaces part number 69273010
# 002
MPN: 66084100

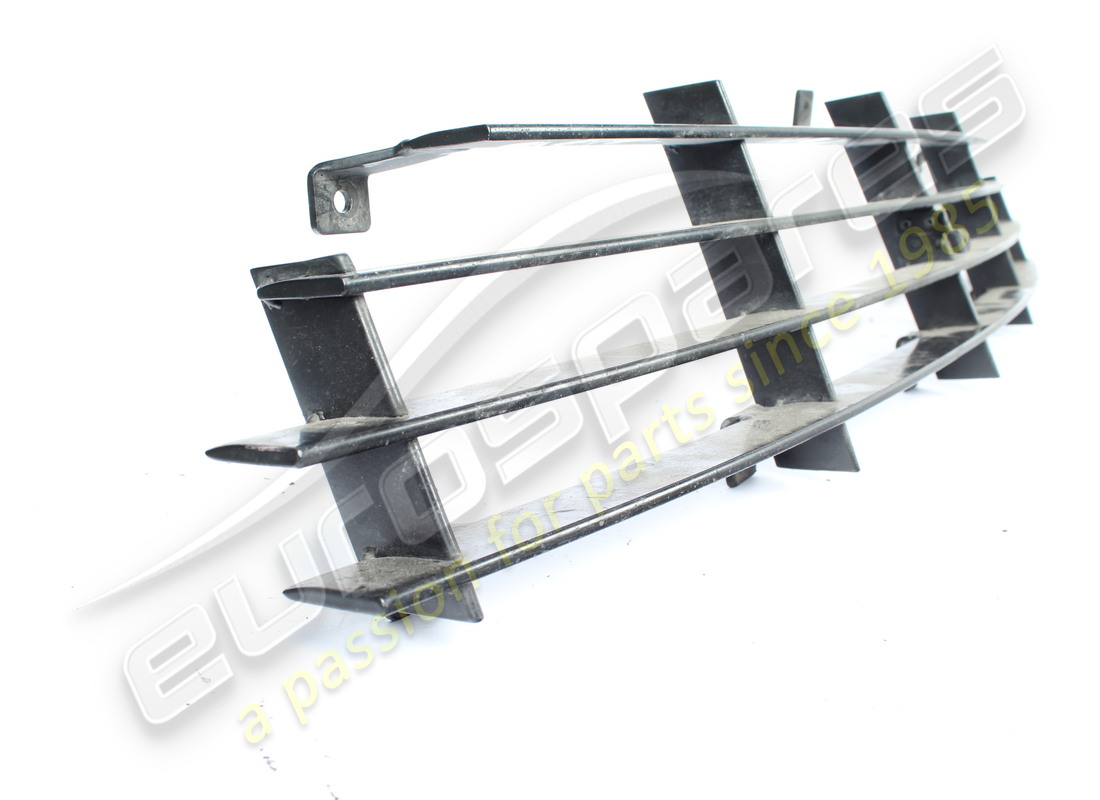

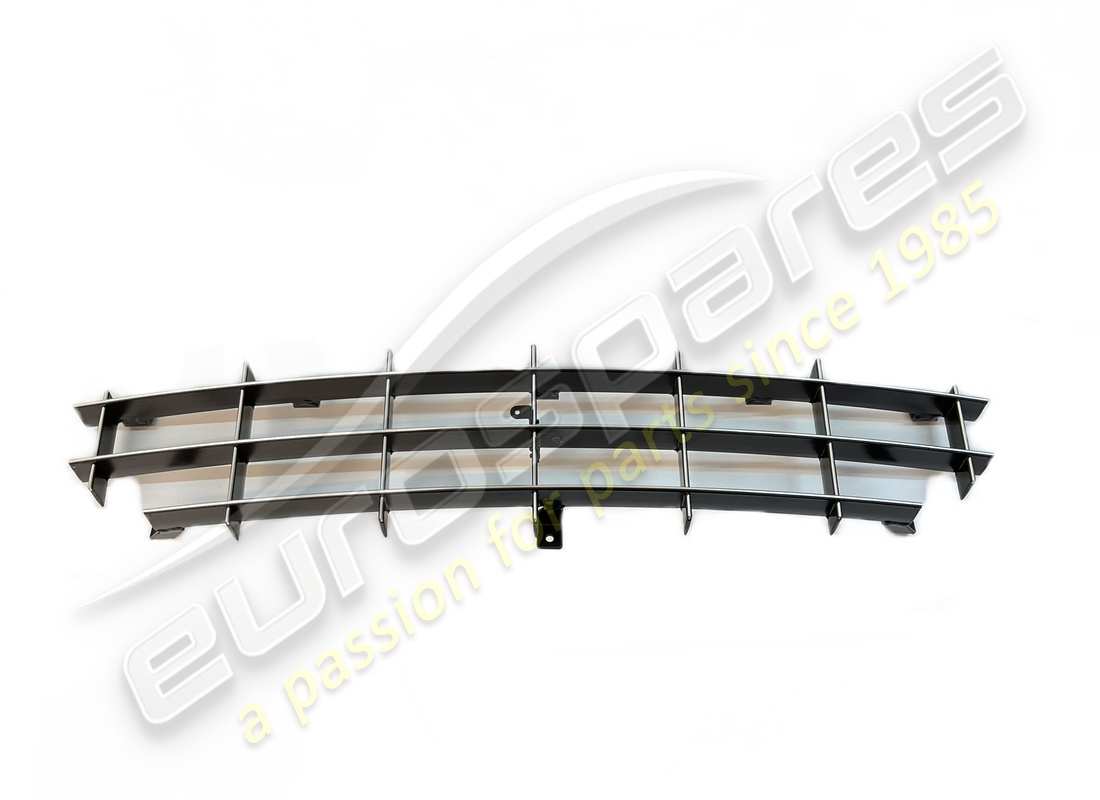

COMPLETE FRONT BUMPER GRILL
from £405.45
from £405.45
# 002
MPN: 67128200
COMPLETE FRONT BUMPER GRILL
- 250 GT2 type - Optional - Not as spare part now - Replaced by 67944700
Supersession
Supersession
# 002
MPN: 67944700

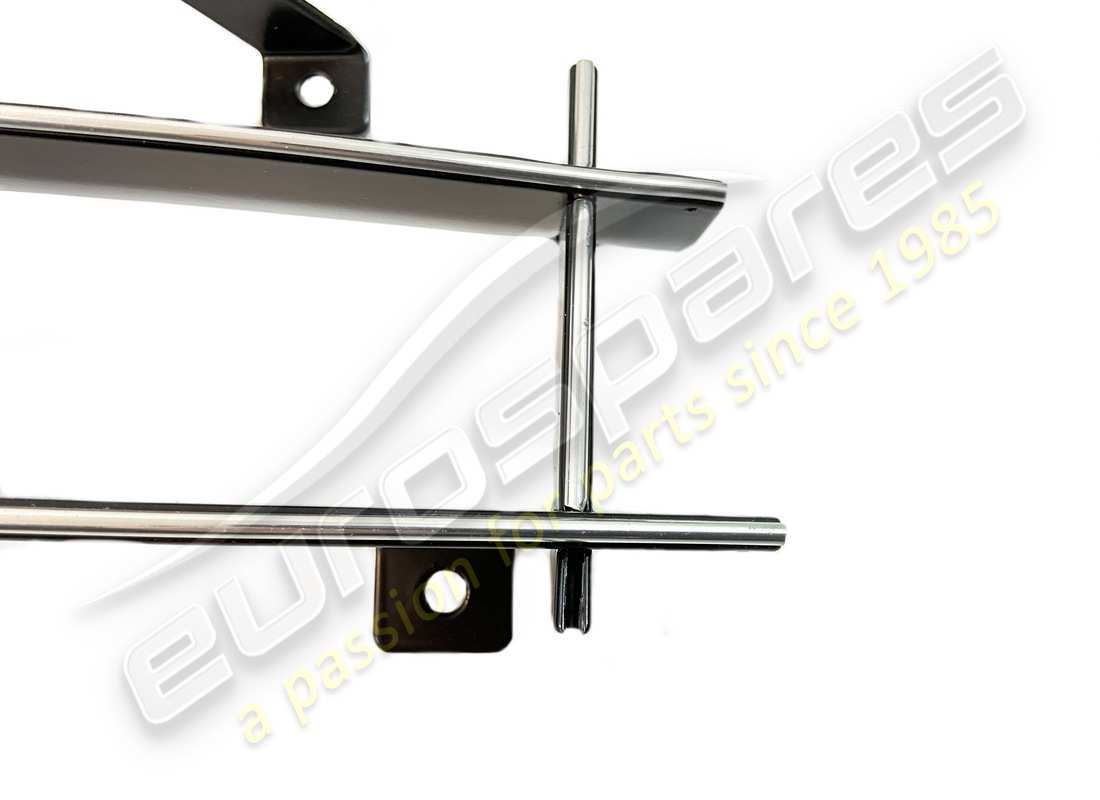

COMPLETE FRONT BUMPER GRILL
- 250 GT2 type - Optional
from £901.81
from £901.81
This part replaces part number 67128200 - and 1 more. Click to view details
# 003
MPN: 13001090
SCREW COLLAR
from £0.84
from £0.84
This part replaces part number 12174990 - and 2 more. Click to view details
# 004
MPN: 63736300
FRONT PLATE FRAME
- Valid for GB and D
from £39.63
from £39.63
# 004
MPN: 63736400
FRONT PLATE FRAME
- Not for USA,CDN,AUS,GB,J,CH and D
from £37.81
from £37.81
# 004
MPN: 65271000
FRONT PLATE FRAME
- Valid for AUS
# 004
MPN: 65271400
FRONT PLATE FRAME
- Valid for USA and CDN
from £23.59
from £23.59
# 004
MPN: 65272100
FRONT PLATE FRAME
- Valid for J
from £34.50
from £34.50
# 004
MPN: 65272400
FRONT PLATE FRAME
- Valid for CH
from £20.25
from £20.25
# 005
MPN: 65238400

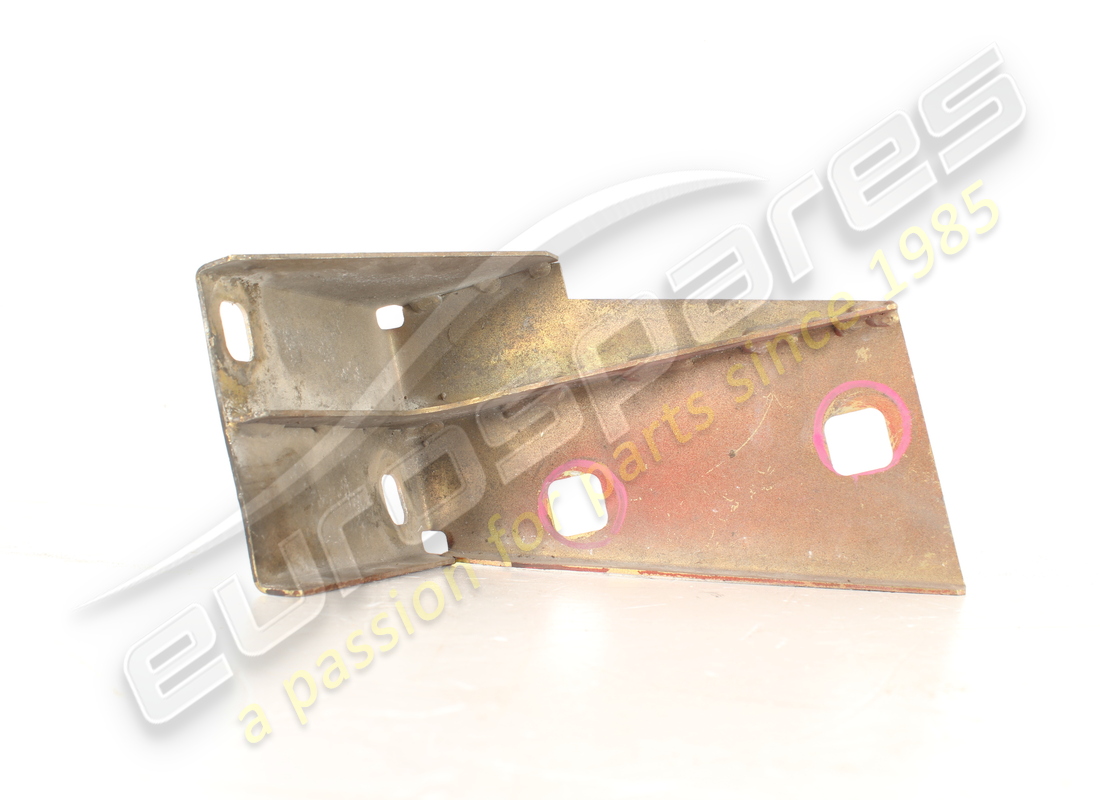

RH BRACKET
from £20.41
from £20.41
# 005
MPN: 65239000
LH BRACKET
from £20.41
from £20.41
# 006
MPN: 10902624
SCREW
from £0.47
from £0.47
This part replaces part number 10902621
# 007
MPN: 12640624
WASHER
- Not as spare part - Replaced by 67123200
from £0.47
from £0.47
This part replaces part number 12640601 - and 1 more. Click to view details
# 007
MPN: 67123200
SPACER
from £1.69
from £1.69
# 008
MPN: 174155

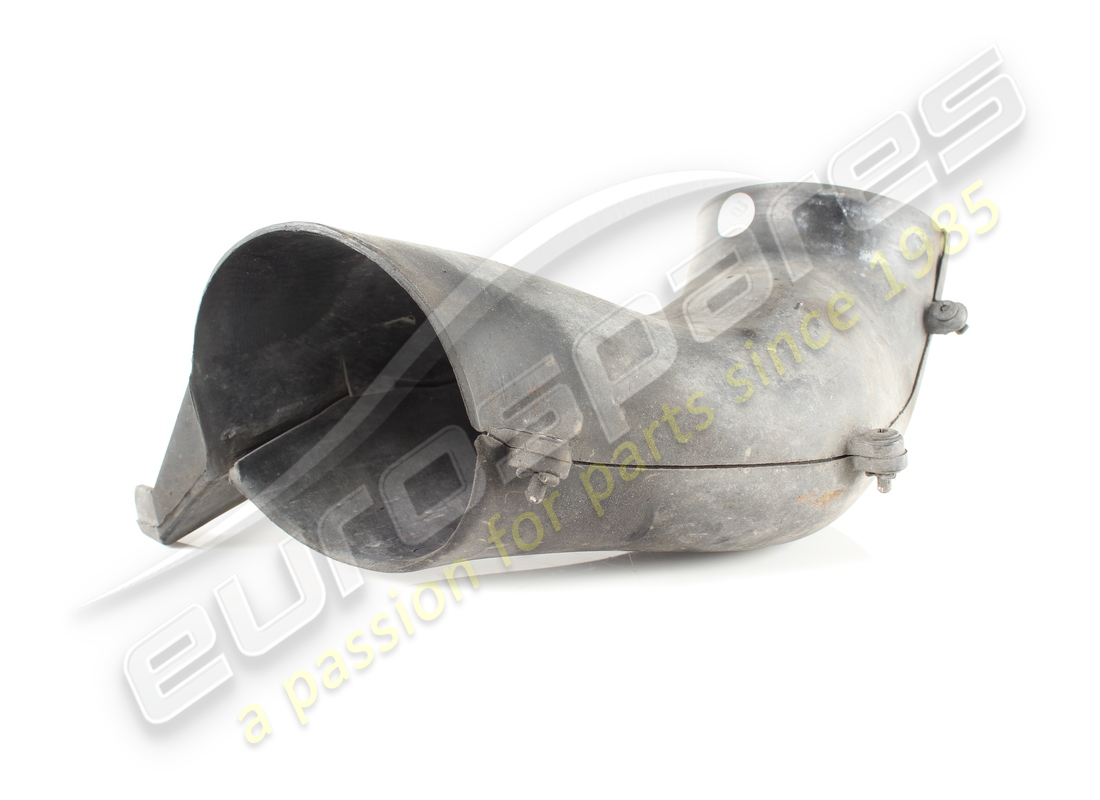

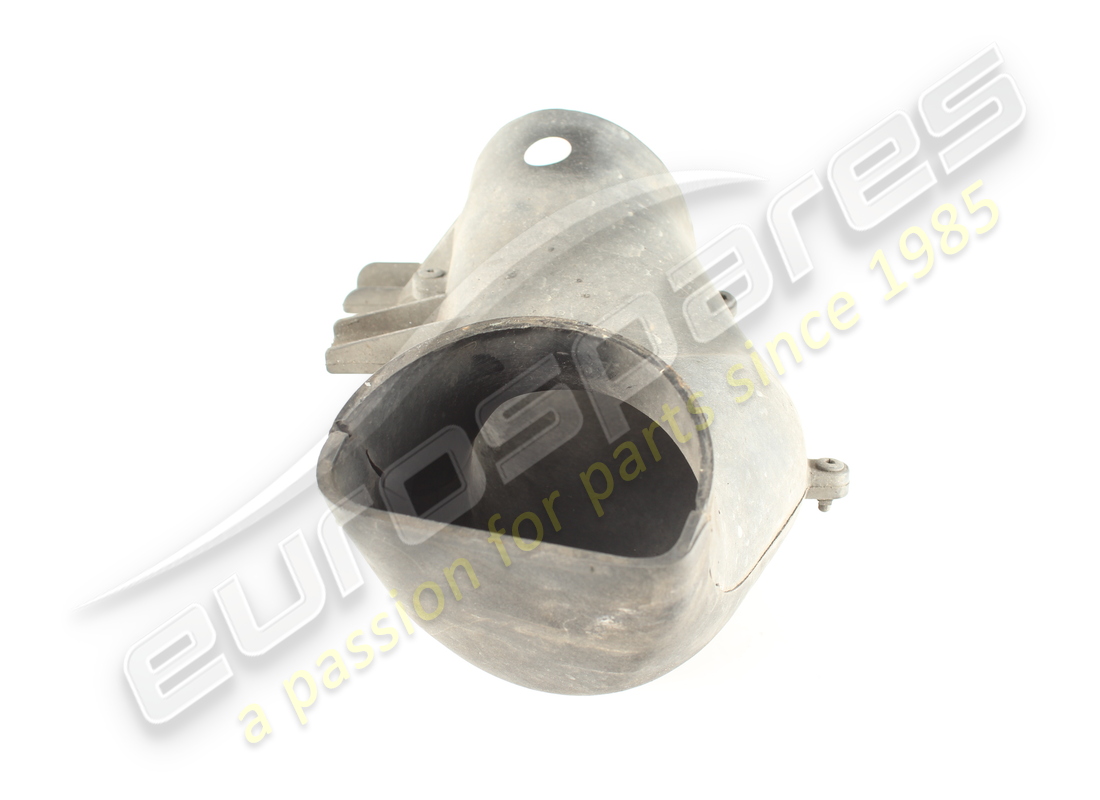

PIPE FOR FRONT BRAKES COOLING
from £111.59
from £111.59
This part replaces part number 156403
# 009
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 010
MPN: 65228800
PIN
from £4.09
from £4.09
# 011
MPN: 65406400
WASHER
from £0.47
from £0.47
# 012
MPN: 65228700
BUSHING
from £3.48
from £3.48
# 013
MPN: 63215400
SPACER
- Not for USA and CDN
from £1.08
from £1.08
# 014
MPN: 66171700
RH INNER BRACKET
- Not for USA and CDN
from £115.56
from £115.56
# 014
MPN: 66171800
LH INNER BRACKET
- Not for USA and CDN
from £115.56
from £115.56
# 015
MPN: 12646821
WASHER
- Not for USA and CDN - (minimum order quantity = 30)
from £0.47
from £0.47
# 016
MPN: 127497
WASHER
- Not for USA and CDN
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 017
MPN: 11227921
SCREW
- Not for USA and CDN
from £0.47
from £0.47
# 018
MPN: 65033000
RH SUPPORT
- Not for USA and CDN
from £225.81
from £225.81
# 018
MPN: 65033100
LH SUPPORT
- Not for USA and CDN
from £144.39
from £144.39
# 019
MPN: 12648504
WASHER
from £0.47
from £0.47
This part replaces part number 64224300
# 020
MPN: 127498
WASHER
from £0.47
from £0.47
This part replaces part number 106854
# 021
MPN: 15540621
SCREW
Supersession
Supersession
This part replaces part number 64224200
# 022
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 023
MPN: 12646821
WASHER
(minimum order quantity = 30)
from £0.47
from £0.47
# 024
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 025
MPN: 12646601
WASHER
from £0.71
from £0.71
# 026
MPN: 66223600
BRACKET
from £16.18
from £16.18
# 027
MPN: 16285127
SCREW
(minimum order quantity = 10)
from £0.47
from £0.47
# 028
MPN: 13274177
SCREW
(minimum order quantity = 10)
from £0.48
from £0.48
This part replaces part number 13274172
# 029
MPN: 65270200
SIDE BRACKET
from £126.89
from £126.89
# 030
MPN: 16287024
SCREW
from £0.47
from £0.47
# 031
MPN: 168355
RH AIR INLET
from £38.76
from £38.76
# 031
MPN: 168356
LH AIR INLET
from £39.66
from £39.66
# 032
MPN: 14662695
SCREW WITH CAGE
from £2.31
from £2.31
# 033
MPN: 66288100
RH INNER BRACKET
- Valid for USA and CDN
from £179.78
from £179.78
# 033
MPN: 66288200
LH INNER BRACKET
- Valid for USA and CDN
from £179.78
from £179.78
# 034
MPN: 65170200
RH SUPPORT
- Valid for USA and CDN
from £114.82
from £114.82
# 034
MPN: 65170300
LH SUPPORT
- Valid for USA and CDN
from £114.82
from £114.82
# 035
MPN: 63214100
PAD
- Valid for USA and CDN
from £14.48
from £14.48
# 036
MPN: 63738800
PLATE
- Valid for USA and CDN
from £1.11
from £1.11
# 037
MPN: 65372900
SPACER
- Valid for USA and CDN
from £1.96
from £1.96
# 038
MPN: 104114
NUT
- Valid for USA and CDN
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 039
MPN: 15888721
SCREW
- Valid for USA and CDN
from £1.13
from £1.13
# 040
MPN: 12646821
WASHER
- Valid for USA and CDN - (minimum order quantity = 30)
from £0.47
from £0.47
# 041
MPN: 60987900
FRONT NUMBER PLATE RIM
- Valid for USA and CDN
from £38.94
from £38.94
# 042
MPN: 14115680
NUT SCREW
from £0.53
from £0.53
# 043
MPN: 15687375
SCREW
- Not for USA and CDN
from £0.47
from £0.47
This part replaces part number 15687370 - and 1 more. Click to view details
# 043
MPN: 15688175
SCREW
- Valid for USA and CDN
from £0.47
from £0.47
This part replaces part number 15688108
# 044
MPN: 14201980
BLOCK
- Valid for USA and CDN
from £0.47
from £0.47
# 045
MPN: 66087500
RH BRACKET
from £34.49
from £34.49
# 045
MPN: 66087600
LH BRACKET
from £34.49
from £34.49
# 046
MPN: 15917777
SCREW
from £0.47
from £0.47
# 047
MPN: 14296196
RIVET
from £0.47
from £0.47
# 048
MPN: 67418600
SPACER
- Valid for USA and CDN
from £103.02
from £103.02
