117 - Heating System

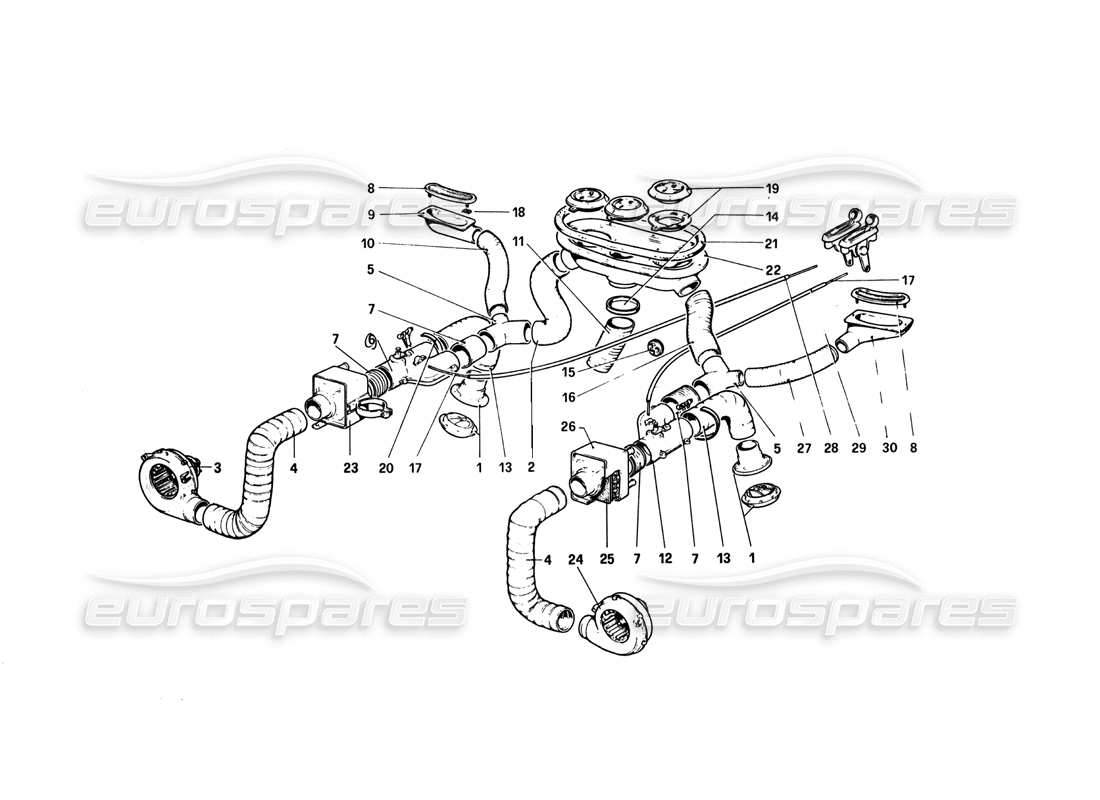

Ferrari 308 Quattrovalvole (1985) Heating System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60054400

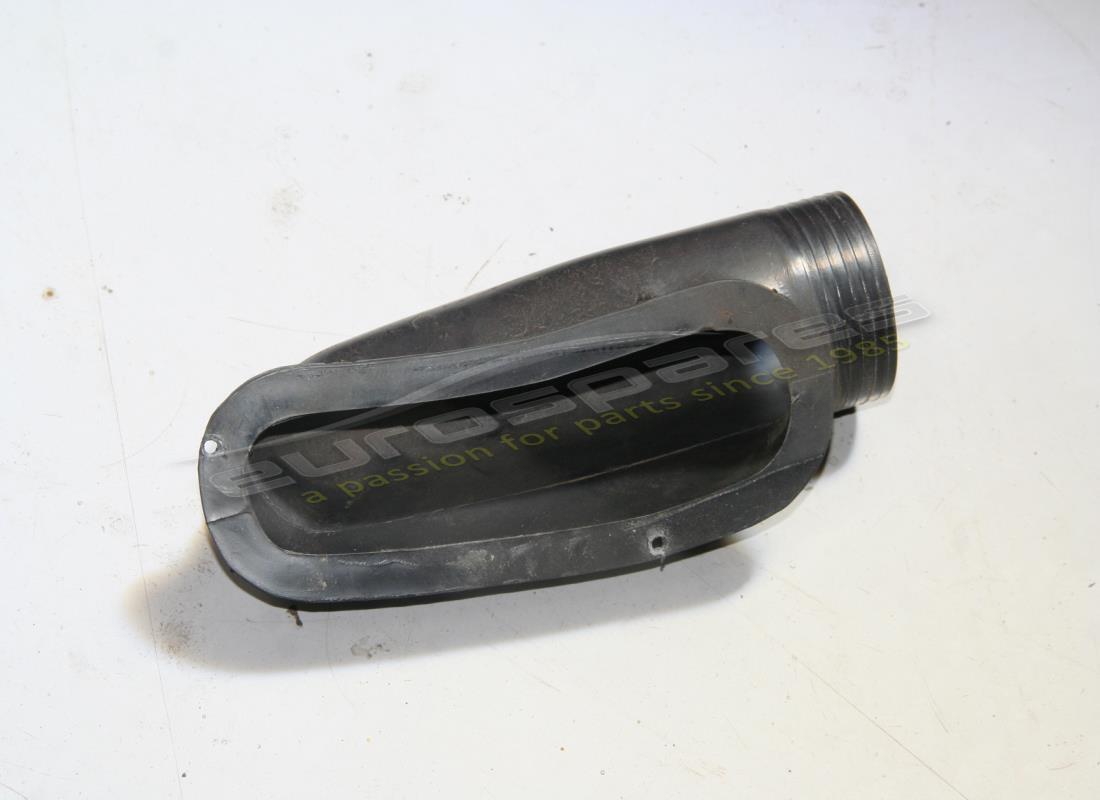

AIR OUTLET LOWER
from £234.98
from £234.98
This part replaces part number 50205707 - and 1 more. Click to view details
# 002
MPN: 60123700
AIR DUCT
from £51.13
from £51.13
# 003
MPN: 60658600
RHS ELECTRIC FAN
from £345.60
from £345.60
# 004
MPN: 60133204
AIR DUCT
from £31.49
from £31.49
# 005
MPN: 60153608
3 -WAY UNION
from £7.16
from £7.16
This part replaces part number 50022003 - and 3 more. Click to view details
# 006
MPN: 60135001
DIVERTER
from £230.51
from £230.51
# 007
MPN: 60124500
AIR DUCT Ø 80
from £76.59
from £76.59
# 008
MPN: 60044401
AIR OUTLET SIDE
from £124.57
from £124.57
# 009
MPN: 60055407
CONVEYOR FOR RH OUTLET
LHD
from £35.15
from £35.15
# 009
MPN: 60198405
CONVEYOR FOR RH OUTLET
RHD
from £113.50
from £113.50
# 010
MPN: 60123809
AIR DUCT Ø 60
from £30.29
from £30.29
# 011
MPN: 60124005
A.C. DUCT
from £35.91
from £35.91
# 012
MPN: 60138100
LH SWITCH
# 013
MPN: 60034907
AIR DUCT
from £169.34
from £169.34
# 014
MPN: 20143202
PLUG
from £12.85
from £12.85
# 015
MPN: 60714200
FAIR LEAD
from £7.82
from £7.82
# 016
MPN: 60035003
AIR DUCT
from £58.67
from £58.67
# 017
MPN: 40138802
CABLE DEFROSTER CONTROL
Supersession
Supersession
This part replaces part number 60160405
# 018
MPN: 60048501
CLIP
from £0.77
from £0.77
# 019
MPN: 60054301

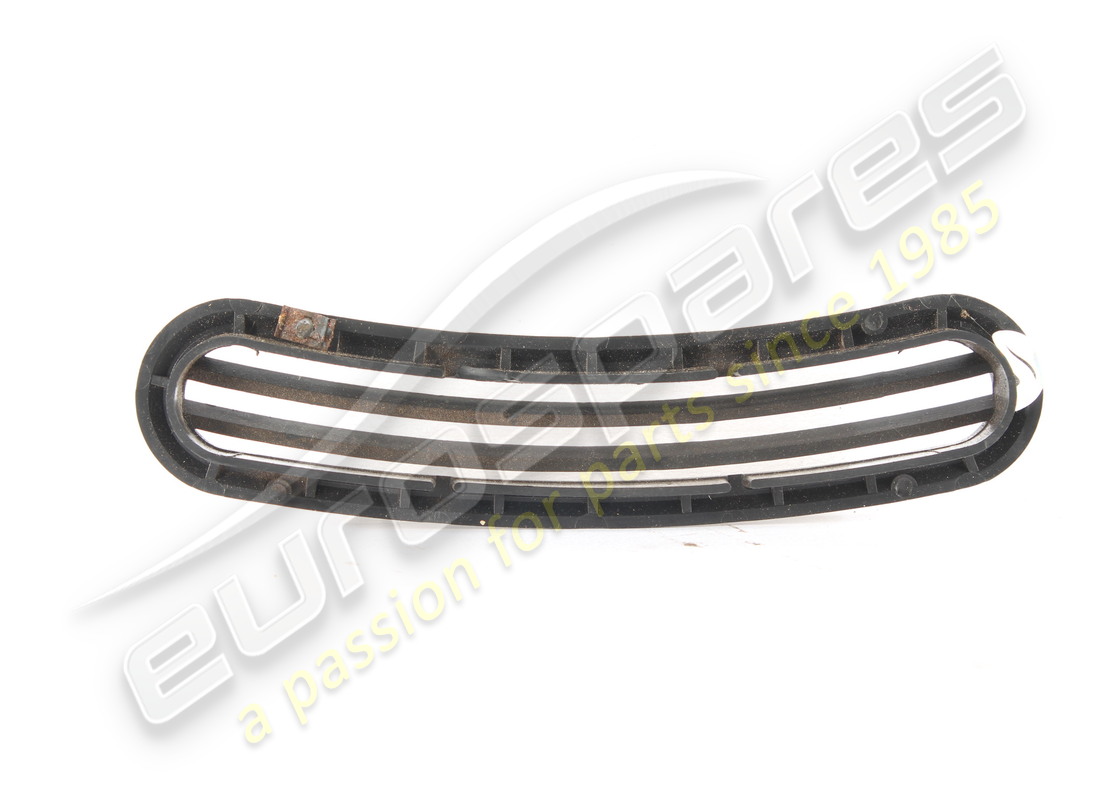

AIR OUTLET
from £126.00
from £126.00
This part replaces part number 50205608 - and 1 more. Click to view details
# 020
MPN: 10291490
CLAMP
from £1.77
from £1.77
# 021
MPN: 50091503
GASKET
from £23.42
from £23.42
# 022
MPN: 20142709
DIVERTER
from £971.46
from £971.46
This part replaces part number 50022805 - and 1 more. Click to view details
# 023
MPN: 60151305
RH HEATER (LHD)
Up to 31 - 10 - 84
from £1,553.15
from £1,553.15
# 023
MPN: 60361409
RH HEATER (RHD)
Up to 31 - 10 - 85
from £363.78
from £363.78
# 023
MPN: 61721700
RH HEATER
Dal 1 - 11 - 84
from £162.55
from £162.55
# 024
MPN: 60658700
LH ELECTRIC FAN
Supersession
Supersession
# 025
MPN: 60151909
WIRE GAUZE INSIDE HEATER
from £18.05
from £18.05
This part replaces part number 40295404
# 026
MPN: 60208907
LH HEATER
from £473.34
from £473.34
# 027
MPN: 60123908
AIR DUCT Ø 60
# 028
MPN: 60125901
CABLE SHEATH RH DEFROSTER
Supersession
Supersession
# 029
MPN: 60126000
CABLE SHEATH LH DEFROSTER
from £16.15
from £16.15
This part replaces part number 60126008
# 030
MPN: 60055407
CONVEYOR LH
RHD
from £35.15
from £35.15
# 030
MPN: 60055506
CONVEYOR FOR LH OUTLET
LHD
from £38.41
from £38.41
